HS928 WAS/A (SZAS) - Honda 28" Snow Blower, Made in Japan (SN: SZAS-1130001 - SZAS-9999999) FUEL TANK Parts Diagram

28" Snow Blower, Made in Japan

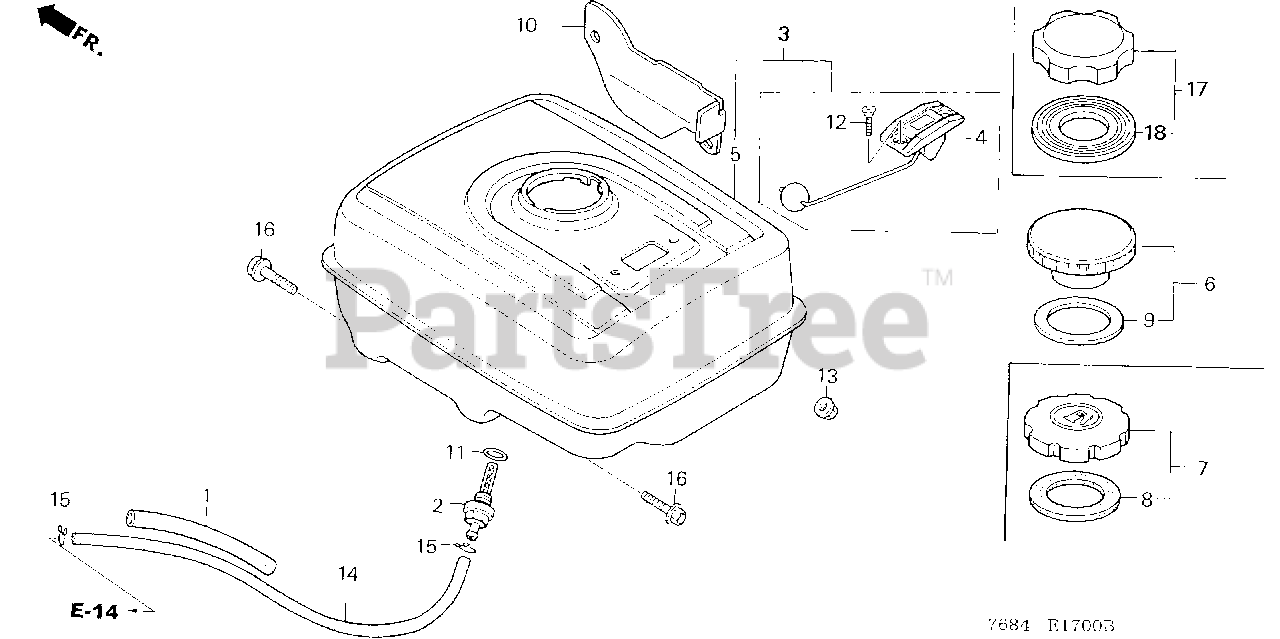

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

$5.99

$

In Stock, Qty 5

0

2

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$9.99

$

In Stock, Qty 17

0

3

Honda 17500-ZE2-813ZE

TANK ASSY., FUEL *R280* (GAUGE) (POWER RED)

$211.99

$

Usually ships in 3-6 days

0

4

Honda 17505-ZE2-013

GAUGE ASSY., FUEL

$45.99

$

Usually ships in 3-6 days

0

7

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use up to Engine SN 2139476.

$

$

Not available

8

Honda 17631-ZH7-003

SEE PART DETAILS - SUP; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-ZE1-000)

Note: Use up to Engine SN 2139476.

$4.49

$

In Stock, only 2 left!

0

8

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

Note: Use up to Engine SN 2139476.

$

$

Not available

10

Honda 19718-ZE2-P50

COVER, SNOW PLATE

$10.99

$

Usually ships in 3-6 days

0

11

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

$4.49

$

In Stock, Qty 20+

0

11

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$4.49

$

In Stock, Qty 20+

0

12

Honda 93600-05010-0A

SCREW, FLAT (5X10)

$1.49

$

In Stock, only 4 left!

0

13

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

14

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X222)

$60.99

$

In Stock, only 4 left!

0

15

Honda 95002-02080

CLIP, TUBE (B8)

$2.99

$

In Stock, Qty 20+

0

16

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.99

$

In Stock, Qty 8

0

17

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)
(Superseded to 17620-Z0T-315)

Note: Use from Engine SN 2139477.

$22.99

$

In Stock, only 2 left!

0

18

Honda 17631-Z0T-812

GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)
(Superseded to 17631-Z0T-813)

Note: Use from Engine SN 2139477.

$4.49

$

In Stock, only 2 left!

0
