HSB 21 P5 (UT-30155-A) - Homelite 21" Superbagger Walk-Behind Mower Mower Parts Diagram

21" Superbagger Walk-Behind Mower

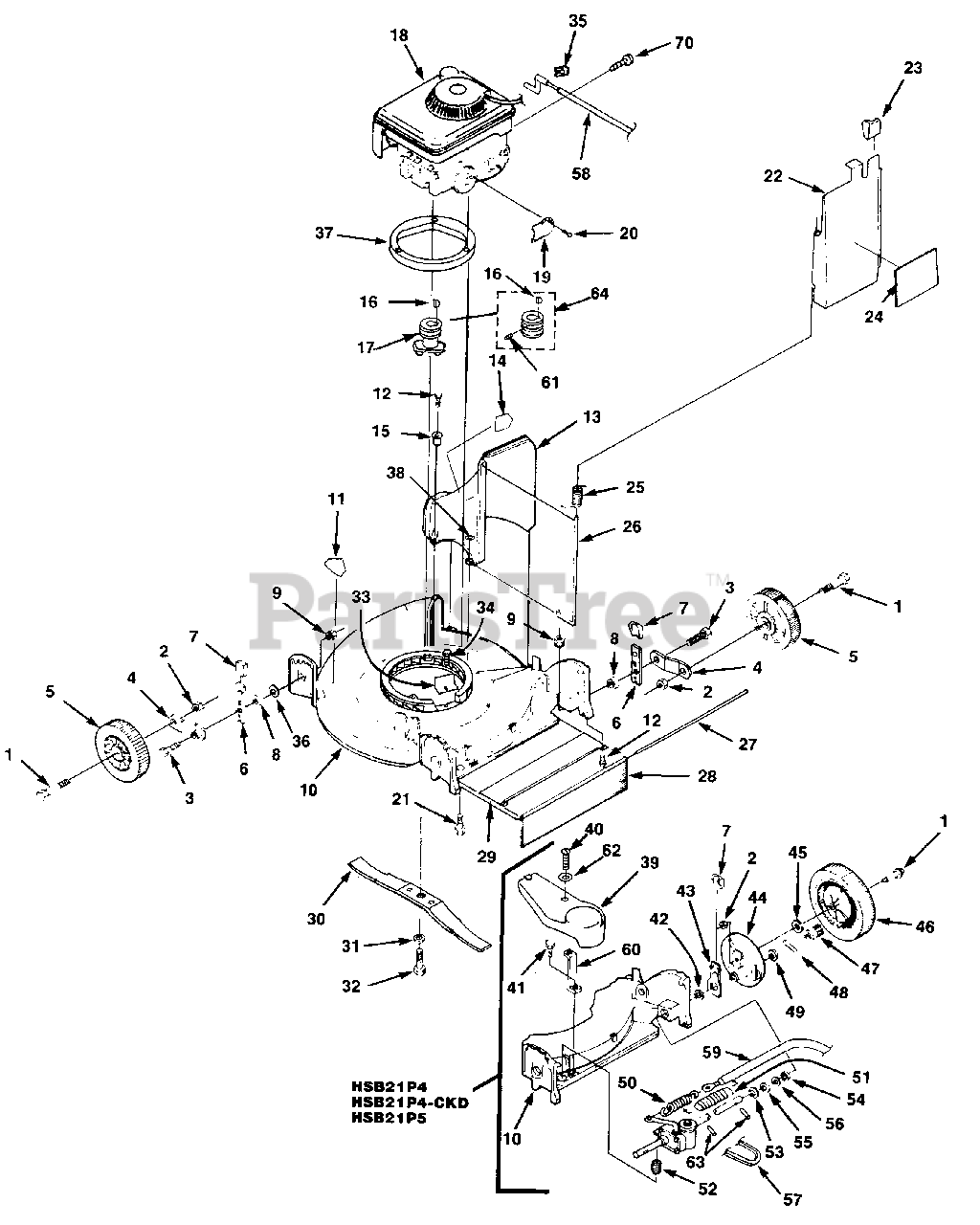

Mower Parts Diagram

  • Title

1

Homelite JA992138

AXLE ASSEMBLY
(Superseded to UP06685)

$

$

Currently unavailable

2

Homelite JA444850

NUT
(Superseded to JA993711)

$

$

Not available

3

Homelite JA359180

BOLT- Height adjusting

$

$

Not available

4

Homelite JA991287

ARM- Wheel htg. adj.
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA993958

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

6

Homelite JA990087

SPRING- Index (Front)
(Superseded to GP586051)

$22.99

$

Usually ships in 3-7 days

0

7

Homelite JA336623

KNOB- Indexing spring
(Superseded to UP06697)

$

$

Not available

8

Homelite JA358362

SPACER- Wheel height adj.

$

$

Not available

9

Homelite JA445775

NUT- Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

10

Homelite JA994992

DECK

$

$

Currently unavailable

11

Homelite JA994751

DECAL- Warning

$

$

Currently unavailable

12

Homelite JA408878

SCREW 1/4-20 x 3/4"

$

$

Not available

13

Homelite JA994993

CHUTE- Discharge

$

$

Currently unavailable

14

Homelite JA992264

DECAL-CPSC

$

$

Not available

15

Homelite JA473183

EYELET- Stimpson

$5.49

$

Usually ships in 3-7 days

0

16

Homelite JA463029

KEY- Woodruff

$

$

Not available

17

Homelite JA994767

ADAPTER- Blade

$

$

Currently unavailable

18

ENGINE

$

$

Not available

19

Homelite JA359256

DEFLECTOR

$

$

Not available

20

Homelite JA408880

SCREW- #8-32 x 3/8"

$

$

Currently unavailable

21

Homelite JA408885

SCREW- 3/8-16 x 2 1/4"

$

$

Currently unavailable

22

Homelite JA994820

DOOR- Chute

$

$

Currently unavailable

23

Homelite JA336623

KNOB- Index spring
(Superseded to UP06697)

$

$

Not available

24

Homelite JA994091

DECAL- Door (warning)

$

$

Currently unavailable

25

Homelite JA992947

SPRING- Chute door

$

$

Not available

26

Homelite JA359167

PIN- Hinge

$

$

Not available

27

Homelite JA359170

ROD- Drag flap

$

$

Currently unavailable

28

Homelite JA359257

FLAP- Drag

$

$

Currently unavailable

29

Homelite 03762

COVER- Rear

$

$

Not available

30

Homelite JA994796

BAR- Cutter
(Superseded to GP589413)

$29.99

$

Usually ships in 3-7 days

0

31

Homelite JA446142

WASHER- Lock 3/8"

$

$

Not available

32

Homelite JA403753

SCREW- Hex hd. 3/8-24 x 1 1/4"

$

$

Not available

33

Homelite JA994748

COVER- Belt opening

Note: Not used on this product

$

$

Currently unavailable

34

Homelite JA409907

SCREW- 1/4-20 x 1/2"

Note: Not used on this product

$

$

Not available

35

Homelite JA990567

STOP- Rope

$

$

Not available

36

Homelite JA453009

WASHER- Flat (5/16")
(Superseded to UP07173)

$

$

Not available

37

Homelite JA994311

RING- Engine

$

$

Not available

38

Homelite JA453023

WASHER- Plain (1/4")
(Superseded to 678013001)

$1.49

$

Usually ships in 3-7 days

0

39

Homelite JA994725

COVER- Drive

$

$

Currently unavailable

40

Homelite JA408879

SCREW- 1/4-20 x 3/4"

$

$

Currently unavailable

41

Homelite JA409704

SCREW- Hex #10-16

$

$

Not available

42

Homelite JA359141

SPACER- Rear hgt. adj.

$

$

Not available

43

Homelite JA991288

SPRING- Index

$

$

Not available

44

Homelite JA990074

SUPPORT- Drive wheel
(Superseded to GP095304)

$

$

Not available

45

Homelite JA359500

WASHER

$

$

Not available

46

Homelite JA993975

WHEEL & TIRE

$

$

Not available

47

Homelite JA994742

PINION (L.H.)

$

$

Currently unavailable

Homelite JA994743

PINION (R.H.)

$

$

Currently unavailable

48

Homelite JA994740

PIN- Drive

$

$

Currently unavailable

49

Homelite JA351077

WASHER

$

$

Not available

50

Homelite JA375748

SPRING- Extension

$

$

Not available

51

Homelite JA359270

COVER- Spring

$

$

Currently unavailable

52

Homelite JA994858

SPRING- Compression

$

$

Not available

53

Homelite JA458451

RING- Eaton

$1.99

$

Usually ships in 3-7 days

0

54

Homelite JA454037

WASHER

$

$

Not available

55

Homelite JA353406

WASHER

$

$

Not available

56

Homelite JA328147

WASHER

$

$

Not available

57

Homelite JA993971

BELT- Drive

$

$

Currently unavailable

58

Homelite JA994849

CONTROL- Engine

$

$

Currently unavailable

59

Homelite JA991075

CABLE- Traction control

$

$

Not available

60

Homelite JA994243

SUPPORT- Belt cover

$

$

Currently unavailable

61

Homelite JA422505

SCREW- 1/4-20 x 3/8"

$

$

Not available

62

Homelite JA455024

WASHER- Plain

$

$

Currently unavailable

63

Homelite JA461361

PIN- Roll 1/8 x 7/8

$

$

Not available

64

Homelite JA993669

PULLEY- Drive

Note: Not used on this product

$

$

Currently unavailable
