HSB 21 P5 (UT-30516) - Homelite 21" Superbagger Walk-Behind Mower Handles & Controls Parts Diagram

21" Superbagger Walk-Behind Mower

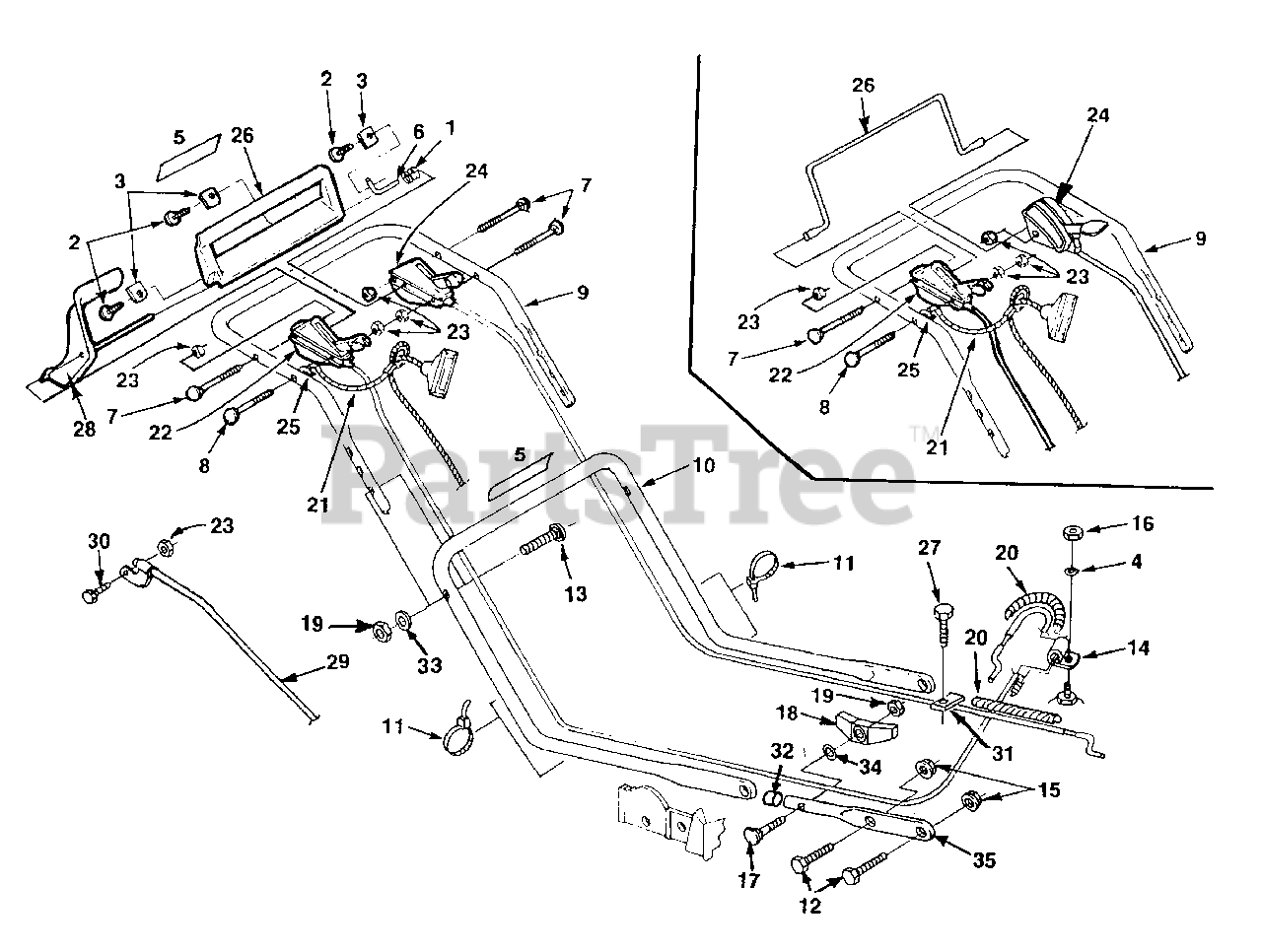

Handles & Controls Parts Diagram

  • Title

1

Homelite JA990141

SPRING - Compression

$

$

Not available

2

Homelite JA408881

SCREW - 1/4-10 x 5/8"

$

$

Not available

3

Homelite JA992570

CLAMP - Pivot shaft

$

$

Currently unavailable

4

Homelite JA446128

WASHER - Lock 1/4"
(Superseded to UP03409)

$4.99

$

Usually ships in 3-7 days

0

5

Homelite 04614

DECAL - Starting Instr.

$

$

Currently unavailable

6

Homelite JA992560

SHAFT - Pivot

$

$

Currently unavailable

7

Homelite JA992920

BOLT - Sq. nk.

$

$

Currently unavailable

8

Homelite JA992930

BOLT - Sq. nk.

$3.49

$

Usually ships in 3-7 days

0

9

Homelite JA994779

HANDLE - Upper

$

$

Currently unavailable

10

Homelite JA994741

HANDLE - Lower

$

$

Not available

11

Homelite JA994274

CABLE - Tie

$

$

Not available

12

Homelite 80085

BOLT - Hex 5/16-18 x 1

$1.49

$

Usually ships in 3-7 days

0

13

Homelite JA441677

SCREW - 5/16 - 18 x 1 1/2"

$

$

Currently unavailable

14

Homelite JA994310

CLAMP

$

$

Currently unavailable

15

Homelite JA445775

NUT - Flange 5/16 - 18
(Superseded to UP06674)

$

$

Not available

16

Homelite JA443102

NUT - Hex 1/4 - 20
(Superseded to JA993730)

$

$

Not available

17

Homelite JA359102

BOLT - Handle joining

$

$

Not available

18

Homelite JA339550

KNOB - Handle

$

$

Not available

19

Homelite JA443106

NUT - Hex 5/16 - 18
(Superseded to 81018)

$

$

Not available

20

Homelite JA994888

COVER - Cable

$

$

Currently unavailable

21

Homelite JA995390

GRIP Restraint

$28.99

$

Usually ships in 3-7 days

0

22

Homelite JA994849

CONTROL

$

$

Currently unavailable

23

Homelite JA444708

NUT - Lock 1/4 - 20

$

$

Currently unavailable

24

Homelite JA994892

CONTROL - Throttle

$

$

Currently unavailable

25

Homelite JA344544

WASHER

$

$

Not available

26

Homelite JA993190

BAIL - Brake control

$

$

Currently unavailable

27

Homelite JA409908

SCREW - Hex 1/4 - 20 x 5/8"

$2.49

$

Usually ships in 3-7 days

0

28

Homelite JA995540

TRACTION LEVER ASSY.

$

$

Currently unavailable

29

Homelite JA991075

CABLE - Traction control

$

$

Not available

30

Homelite JA400116

SCREW - 1/4 - 20 x 1 1/2

$

$

Not available

31

Homelite JA991065

CLAMP

$

$

Not available

32

Homelite JA994795

PLUG - Cap

$

$

Currently unavailable

33

Homelite 83003

WASHER - Lock 5/16 - 18
(Superseded to UP03791)

$

$

Not available

34

Homelite JA453009

WASHER - Flat 5/16
(Superseded to UP07173)

$

$

Not available

35

Homelite JA994739

Stub-Handle mtg.

$

$

Currently unavailable
