HSB 21 P5C (UT-30149-A) - Homelite 21" Superbagger Walk-Behind Mower Handles & Controls (HSB21P5C) Parts Diagram

21" Superbagger Walk-Behind Mower

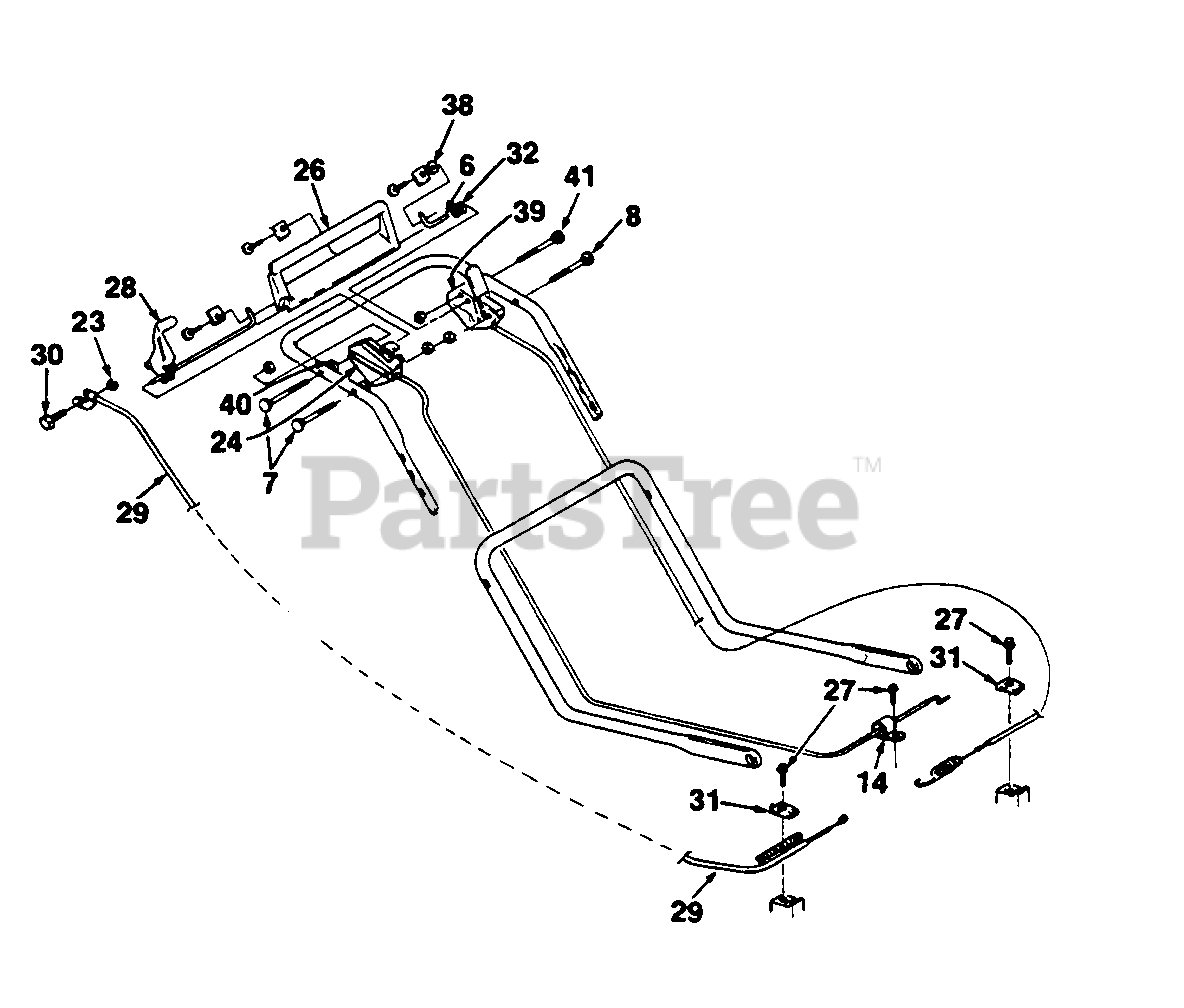

Handles & Controls (HSB21P5C) Parts Diagram

  • Title

6

Homelite JA992560

SHAFT - Pivot

$

$

Currently unavailable

7

Homelite JA992920

BOLT- Sq. neck

$

$

Currently unavailable

8

Homelite JA992930

BOLT- Sq. neck

$3.49

$

Usually ships in 3-7 days

0

14

Homelite JA994310

CLAMP

$

$

Currently unavailable

23

Homelite JA993701

NUT-Lock (1/4-20)

$

$

Currently unavailable

24

Homelite JA994853

CONTROL-Throttle

$

$

Currently unavailable

26

Homelite JA991448

BAIL- Brake control

$

$

Currently unavailable

27

Homelite JA409908

SCREW- 1/4-20 x 5/8"

$2.49

$

Usually ships in 3-7 days

0

28

Homelite JA995540

TRACTION LEVER ASSY.

$

$

Currently unavailable

29

Homelite JA991075

CONTROL CABLE TBO

$

$

Not available

30

Homelite JA400116

SCREW - 1/4-20 x 1 1/2"

$

$

Not available

31

Homelite JA991065

CLAMP

$

$

Not available

32

Homelite JA990141

SPRING - Compression

$

$

Not available

38

Homelite 84004

Washer, Flat, 7.25 ID x 16 OD
(Superseded to 678013001)

$1.49

$

Usually ships in 3-7 days

0

39

Homelite JA991353

CONTROL-BBC

$

$

Currently unavailable

40

Homelite JA991469

SPACER

$

$

Currently unavailable

41

Homelite JA991611

BOLT- Sq. neck (1/4-20 x 2 1/8")

$3.49

$

Usually ships in 3-7 days

0
