HSB 21 P5C (UT-30149) - Homelite 21" Superbagger Walk-Behind Mower Mower Parts Diagram

21" Superbagger Walk-Behind Mower

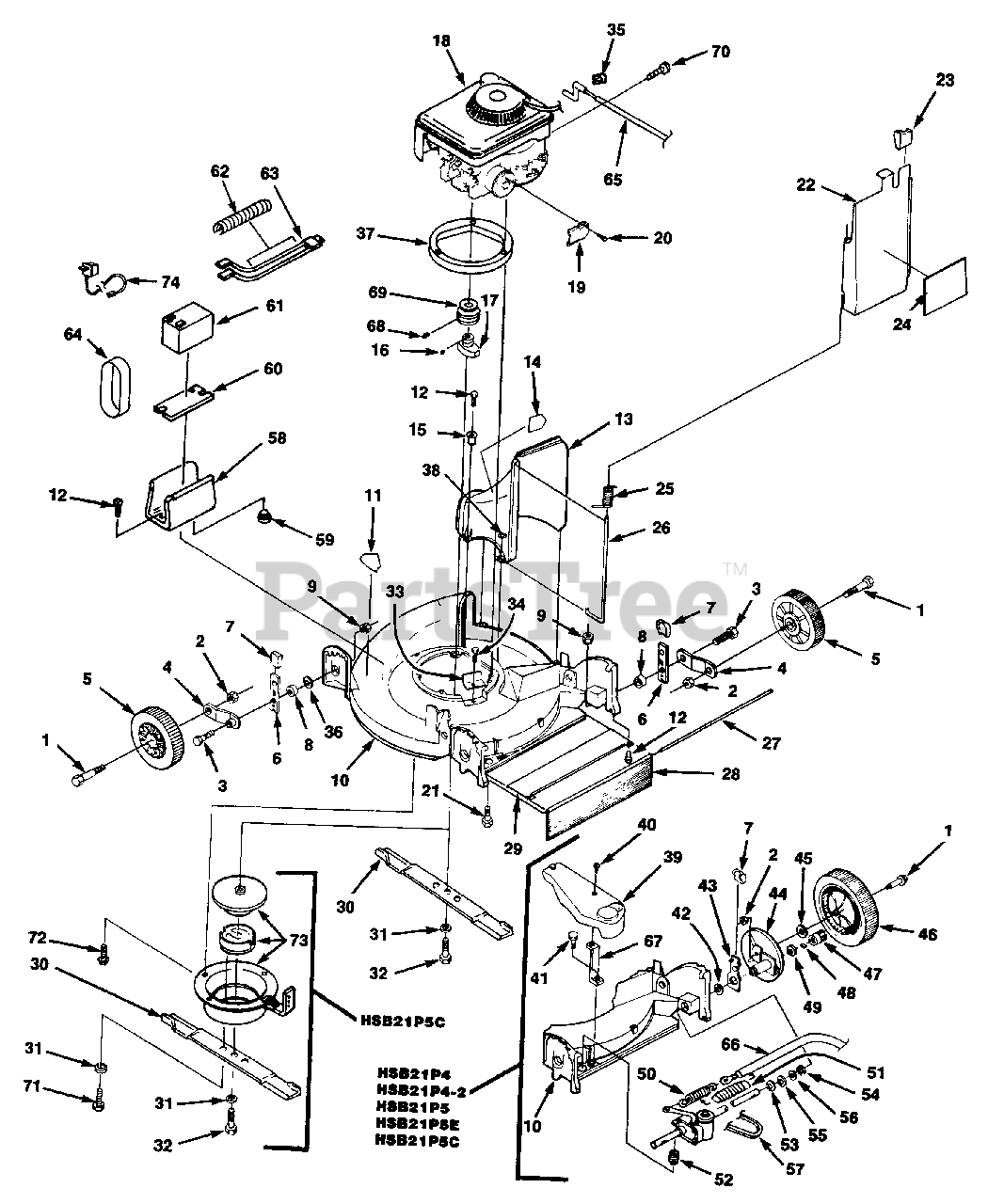

Mower Parts Diagram

  • Title

1

Homelite JA992138

AXLE ASSY.
(Superseded to UP06685)

$

$

Currently unavailable

2

Homelite JA993711

HEX NUT (CM20P4) TBO

$

$

Not available

3

Homelite JA359180

Bolt, TBO

$

$

Not available

4

Homelite JA991287

ARM - Wheel hgt. adj.
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA993958

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

6

Homelite JA990087

Index Front Spring, Tbo
(Superseded to GP586051)

$22.99

$

Usually ships in 3-7 days

0

7

Homelite JA336623

KNOB
(Superseded to UP06697)

$

$

Not available

8

Homelite JA358362

SPACER - Wheel hgt. adj.

$

$

Not available

9

Homelite JA993720

HEX WASHER NUT-TBO

$

$

Not available

10

Homelite JA994834

$

$

Currently unavailable

11

Homelite JA992393

DECAL- Foot pad

$4.49

$

Usually ships in 3-7 days

0

12

Homelite JA408878

SCREW - 1/4-20 x 3/4" Hex Tap

$

$

Not available

13

Homelite JA994752

$

$

Currently unavailable

14

Homelite JA992264

DECAL-CPSC

$

$

Not available

15

Homelite JA473183

EYELET

$5.49

$

Usually ships in 3-7 days

0

16

Homelite JA463029

KEY TBO

$

$

Not available

17

Homelite JA991821

ADAPTER TBO

$17.99

$

Usually ships in 3-7 days

0

18

$

$

Not available

19

Homelite JA359256

DEFLECTOR

$

$

Not available

20

Homelite JA408880

Screw (Hex Head)

$

$

Currently unavailable

21

Homelite JA408885

SCREW- (3/8-16 x 2 1/4")

$

$

Currently unavailable

22

Homelite JA994820

DOOR - Chute

$

$

Currently unavailable

23

Homelite JA336623

KNOB
(Superseded to UP06697)

$

$

Not available

24

Homelite JA994091

DECAL - Door Warning

$

$

Currently unavailable

25

Homelite JA992947

SPRING - Chute door

$

$

Not available

26

Homelite JA359167

PIN - Hinge

$

$

Not available

27

Homelite JA359170

ROD - Trailing Shield

$

$

Currently unavailable

28

Homelite JA359257

FLAP - Drag

$

$

Currently unavailable

29

Homelite JA991285

COVER- Rear

$

$

Currently unavailable

30

Homelite JA991189

BAR-Cutter

$

$

Currently unavailable

31

Homelite JA446142

WASHER - Lock 3/8"

$

$

Not available

32

Homelite JA401209

Screw-Hex hd. 3/8-24 x 2"

$

$

Currently unavailable

33

Homelite JA991923

COVER- Belt opening

$

$

Currently unavailable

34

Homelite JA409907

SCREW-(1/4-20 X 1/2")

$

$

Not available

35

Homelite JA990567

STOP - Rope

$

$

Not available

36

Homelite 84001

FLAT WASHER(HSD'S) TBO

$

$

Not available

37

Homelite JA994196

RING- Engine

$

$

Currently unavailable

38

Homelite 84004

Washer, Flat, 7.25 ID x 16 OD
(Superseded to 678013001)

$1.49

$

Usually ships in 3-7 days

0

39

Homelite JA994218

COVER-Drive

$

$

Currently unavailable

40

Homelite JA408879

Screw - phillips 1/4-20 x 3/4

$

$

Currently unavailable

41

Homelite JA409704

SCREW - Hex #10-16

$

$

Not available

42

Homelite JA359141

SPACER - Rear hgt. adj.

$

$

Not available

43

Homelite JA993644

INDEX SPRING & PIN

$

$

Currently unavailable

44

Homelite JA990074

DRIVE WHEEL SUPPORT-TBO
(Superseded to GP095304)

$

$

Not available

45

Homelite JA359500

WASHER

$

$

Not available

46

Homelite JA993975

DRIVE WHEEL TBO

$

$

Not available

47

Homelite JA994800

R.H.PINION (HM20P5) TBO

$

$

Not available

Homelite JA994801

PINION L.H.

$

$

Currently unavailable

48

Homelite JA994740

DRIVE PIN

$

$

Currently unavailable

49

Homelite JA351077

WASHER-TBO

$

$

Not available

50

Homelite JA375748

SPRING - Ext.

$

$

Not available

51

Homelite JA359270

COVER - Spring

$

$

Currently unavailable

52

Homelite JA994858

SPRING - Compression

$

$

Not available

53

Homelite JA458451

RING TBO

$1.99

$

Usually ships in 3-7 days

0

54

Homelite JA454037

WASHER

$

$

Not available

55

Homelite JA353406

WASHER

$

$

Not available

56

Homelite JA328147

WASHER

$

$

Not available

57

Homelite JA991218

BELT- Drive

$

$

Not available

58

Homelite JA994195

HOLDER- Battery

Note: Not used on this product

$

$

Currently unavailable

59

Homelite 12096

BUMPER

Note: Not used on this product

$

$

Not available

60

Homelite JA991263

PAD - battery rubber

Note: Not used on this product

$

$

Currently unavailable

61

Homelite JA994890

NLA(NO LONGER AVAILABLE)

Note: Not used on this product

$

$

Currently unavailable

62

Homelite JA991992

COVER - Harness

Note: Not used on this product

$

$

Currently unavailable

63

Homelite JA991224

LEAD

Note: Not used on this product

$

$

Currently unavailable

64

Homelite JA991289

BAND - Rubber

Note: Not used on this product

$

$

Not available

65

Homelite JA994849

ENGINE - Control

Note: Not used on this product

$

$

Currently unavailable

Homelite JA992708

CONTROL- Manual start

Note: Not used on this product

$

$

Currently unavailable

66

Homelite JA991075

CONTROL CABLE TBO

$

$

Not available

67

Homelite JA994243

SUPPORT

$

$

Currently unavailable

68

Homelite JA422541

SCREW

$2.99

$

Usually ships in 3-7 days

0

69

Homelite JA994891

NLA(NO LONGER AVAILABLE)

$

$

Not available

70

Homelite 80870

SCREW

Note: Not used on this product

$2.99

$

Usually ships in 3-7 days

0

71

Homelite JA401208

SCREW-Hex hd. 3/8-16 x 1"

$

$

Currently unavailable

72

Homelite JA409912

SCREW- (5/16-18)

$4.49

$

Usually ships in 3-7 days

0

73

Homelite JA994213

$

$

Currently unavailable

74

Homelite JA992108

BATTERY CHARGER (120V)

Note: 120V

$

$

Not available

Homelite JA375654

CHARGER- Battery

Note: 240V

$

$

Currently unavailable
