HSB 21 P5EG (UT-30517) - Homelite 21" Superbagger Walk-Behind Mower Mower Parts Diagram

21" Superbagger Walk-Behind Mower

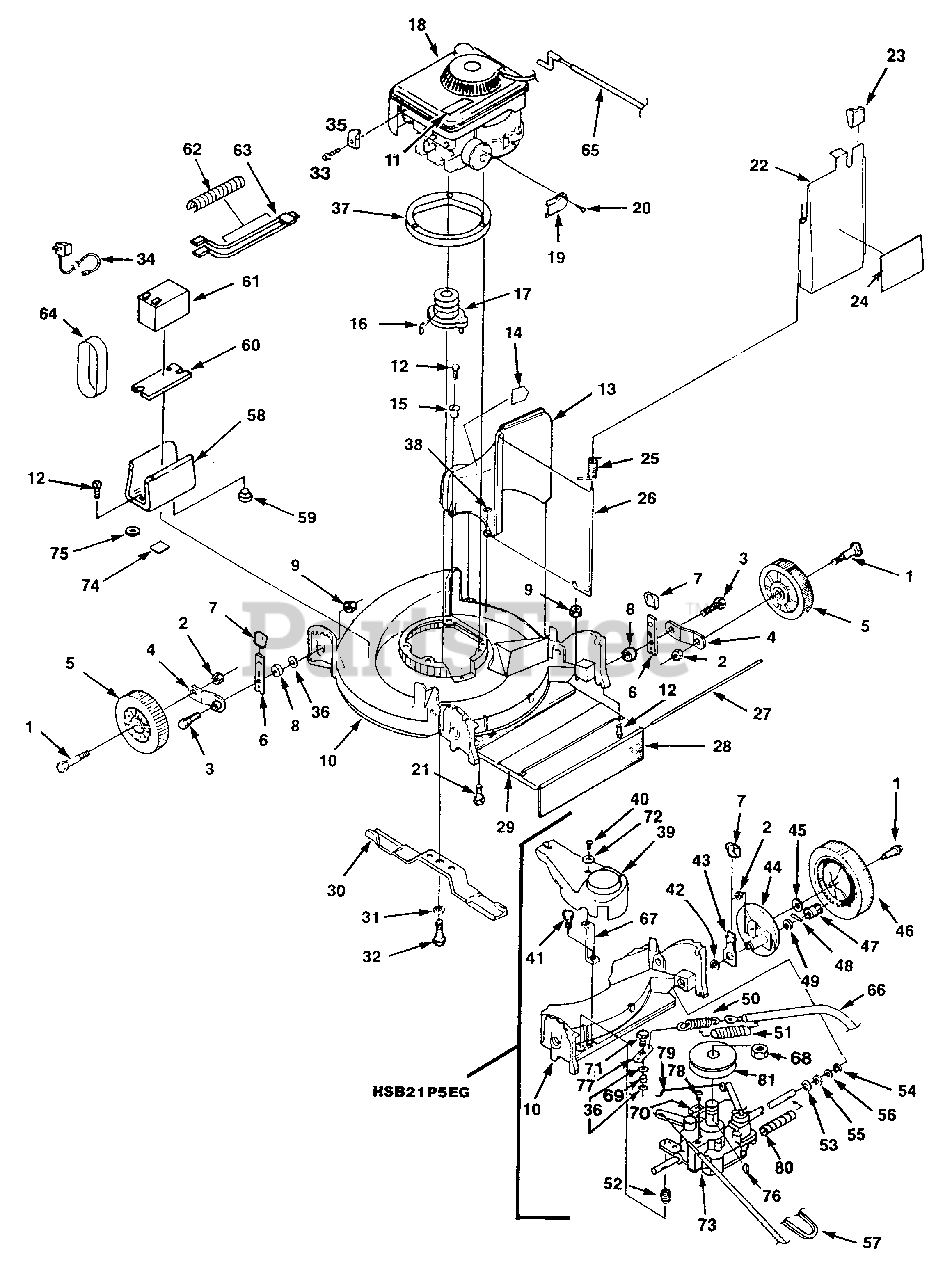

Mower Parts Diagram

  • Title

1

Homelite JA992138

AXLE ASSY.
(Superseded to UP06685)

Note: Includes ref 2

$

$

Currently unavailable

2

Homelite JA631452

NUT - Jam 3/8-16

$

$

Currently unavailable

3

Homelite JA359180

BOLT-Hgt. adj.

$

$

Not available

4

Homelite JA991287

ARM - Wheel hgt. adj.
(Superseded to GP031455)

$

$

Currently unavailable

5

Homelite JA993958

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

6

Homelite JA990087

SPRING - Index (Front)
(Superseded to GP586051)

$44.99

$

Usually ships in 3-7 days

0

7

Homelite JA336623

KNOB - Index sprg.
(Superseded to UP06697)

$

$

Not available

8

Homelite JA358362

SPACER - Wheel hgt. adj.

$

$

Not available

9

Homelite JA445775

NUT - Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

10

Homelite GP397055

DECK - 21"

$

$

Currently unavailable

11

Homelite 04443

DECAL - Blade Warning

$12.99

$

Usually ships in 3-7 days

0

12

Homelite JA408878

SCREW 1/4-20 x 3/4"

$

$

Not available

13

Homelite JA994993

CHUTE - Discharge

Note: Includes refs 14-15

$

$

Currently unavailable

14

Homelite JA992264

DECAL-CPSC

$

$

Not available

15

Homelite JA473183

EYELET - Stimpson

$10.99

$

Usually ships in 3-7 days

0

16

Homelite JA463029

KEY - Woodruff

$

$

Not available

17

Homelite JA994767

ADAPTER - Blade

$

$

Currently unavailable

18

ENGINE

Note: For engine replacement parts locate the engine brand name, model number, and type number and consult the appropriate dealer in your area.

$

$

Not available

19

Homelite JA359256

DEFLECTOR

$

$

Not available

20

Homelite JA408880

SCREW - #8-32 x 3/8"

$

$

Currently unavailable

21

Homelite JA408885

SCREW - 3/8-16 x 2 1/4"

$

$

Currently unavailable

22

Homelite JA994820

DOOR - Chute

Note: Includes refs 23-24

$

$

Currently unavailable

23

Homelite JA336623

KNOB - Index sprg.
(Superseded to UP06697)

$

$

Not available

24

Homelite JA994091

DECAL - Door (warning)

$

$

Currently unavailable

25

Homelite JA992947

SPRING - Chute door

$

$

Not available

26

Homelite JA359167

PIN - Hinge

$

$

Not available

27

Homelite JA359170

ROD - Drag flap

$

$

Currently unavailable

28

Homelite JA359257

FLAP - Drag

$

$

Currently unavailable

29

Homelite JA994876

COVER - Drag

$

$

Currently unavailable

30

Homelite JA994796

BAR - Cutter
(Superseded to GP589413)

$59.99

$

Usually ships in 3-7 days

0

31

Homelite JA446142

WASHER - Lock 3/8"

$

$

Not available

32

Homelite JA403753

SCREW - Hex hd. 3/8-24 x 1 1/4"

$

$

Not available

33

Homelite GP150623

Screw - #10-16 x 5/8"

$8.49

$

Usually ships in 3-7 days

0

34

Homelite JA335649

BATTERY CHARGER (120V)

$

$

Currently unavailable

35

Homelite GP991876

CLAMP - Cable

$

$

Currently unavailable

36

Homelite JA453009

WASHER - Flat (5/16")
(Superseded to UP07173)

$

$

Not available

37

Homelite JA994311

RING - Engine

$

$

Not available

38

Homelite JA453023

WASHER - Plain (1/4")
(Superseded to 678013001)

$2.49

$

Usually ships in 3-7 days

0

39

Homelite JA994725

COVER - Drive

$

$

Currently unavailable

40

Homelite JA408879

SCREW - 1/4-20 x 3/4"

$

$

Currently unavailable

41

Homelite JA409704

SCREW - Hex #10-16

$

$

Not available

42

Homelite JA359141

SPACER - Rear hgt. adj.

$

$

Not available

43

Homelite JA991288

SPRING - Index

$

$

Not available

44

Homelite GP023564

SUPPORT - Drive wheel

$

$

Currently unavailable

45

Homelite JA359500

WASHER

$

$

Not available

46

Homelite JA993975

WHEEL & TIRE

$

$

Not available

47

Homelite JA994742

PINION (L.H.)

$

$

Currently unavailable

Homelite JA994743

PINION (R.H.)

$

$

Currently unavailable

48

Homelite JA994740

PIN - Drive

$

$

Currently unavailable

49

Homelite JA351077

WASHER

$

$

Not available

50

Homelite JA375748

SPRING - Ext.

$

$

Not available

51

Homelite JA359270

COVER - Spring

$

$

Currently unavailable

52

Homelite JA994858

SPRING - Compression

$

$

Not available

53

Homelite JA458451

RING - Eaton

$3.49

$

Usually ships in 3-7 days

0

54

Homelite JA454037

WASHER

$

$

Not available

55

Homelite JA353406

WASHER

$

$

Not available

56

Homelite JA328147

WASHER

$

$

Not available

57

Homelite JA994736

BELT - Traction
(Superseded to GP589360)

$

$

Not available

58

Homelite JA994195

HOLDER - Battery

$

$

Currently unavailable

59

Homelite 12096

BUMPER

$

$

Not available

60

Homelite JA991263

PAD - Battery

$

$

Currently unavailable

61

Homelite JA991223

BATTERY

$

$

Currently unavailable

62

Homelite JA991992

COVER - Harness

$

$

Currently unavailable

63

Homelite JA991224

LEAD

$

$

Currently unavailable

64

Homelite JA991289

BAND - Rubber

$

$

Not available

65

Homelite JA994849

ENGINE - Control

$

$

Currently unavailable

66

Homelite JA991075

CABLE - Traction control

$

$

Not available

67

Homelite 03735

SUPPORT - cover

$

$

Not available

68

Homelite JA994745

NUT - Metric (MIO)

$

$

Not available

69

Homelite JA993875

SPACER - Bellcrank

$

$

Currently unavailable

70

Homelite JA994811

CLAMP - Cable

$

$

Currently unavailable

71

Homelite JA409912

SCREW - Hex hd. 5/16-18

$8.49

$

Usually ships in 3-7 days

0

72

Homelite JA455024

WASHER - Plain

$

$

Currently unavailable

73

Homelite JA994737

GEAR REDUCER (3 Speed)

$

$

Currently unavailable

74

Homelite JA993865

SPACER - Battery holder

$

$

Currently unavailable

75

Homelite JA358362

SPACER

$

$

Not available

76

Homelite JA463003

KEY - Woodruff

$

$

Not available

77

Homelite JA994883

BELL CRANK

$

$

Currently unavailable

78

Homelite JA994859

SCREW - 5/16-18 x 5/8"

$14.99

$

Usually ships in 3-7 days

0

79

Homelite JA994882

LINKAGE - Shift

$

$

Currently unavailable

80

Homelite JA993880

COVER - Drive shaft

$

$

Currently unavailable

81

Homelite JA994755

PULLEY - Gear

$

$

Currently unavailable
