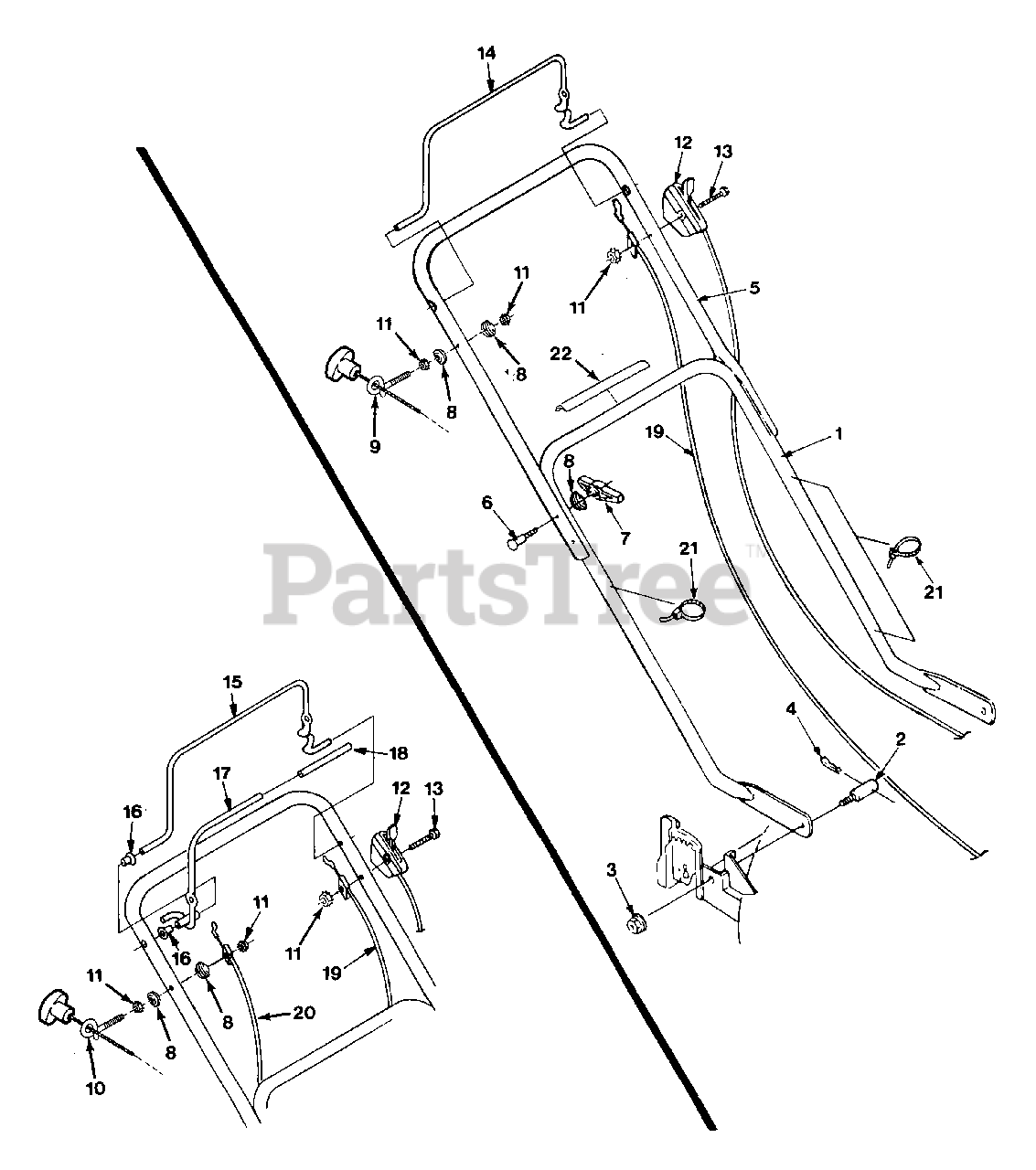

HSD 20 P5 (UT-30523-A) - Homelite 20" Side-Discharge Walk-Behind Mower Handles & Controls Push Parts Diagram

20" Side-Discharge Walk-Behind Mower

Handles & Controls Push Parts Diagram

  • Title

1

Homelite JA992400

Handle - lower

$

$

Currently unavailable

2

Homelite JA359178

Stud - handle mounting

$

$

Not available

3

Homelite JA445775

Nut - hex 5/16-18 finge lock
(Superseded to UP06674)

$

$

Not available

4

Homelite JA460306

Hair pin

$

$

Not available

5

Homelite 03387

Handle - upper

$

$

Not available

6

Homelite GP151936

Bolt - Curved head

$

$

Currently unavailable

7

Homelite GP115540

Knob - handle, plastic

$

$

Currently unavailable

8

Homelite GP150201

Washer - curved

$2.49

$

Usually ships in 3-7 days

0

9

Eyebolt - starter rope, short

Note: Not Used On This Model.

$

$

Not available

10

Homelite GP152629

Eyebolt - starter rope, long

$

$

Currently unavailable

11

Homelite GP715037

Nut - hex 1/4-20 Keps

$

$

Currently unavailable

12

Homelite GP053103

Control - throttle w/cable

$

$

Not available

13

Homelite GP153874

Bolt - hex 1/4-20 x 2-1/4

$

$

Currently unavailable

14

Bail - engine/blade control

Note: Not Used On This Model.

$

$

Not available

15

Homelite GP094375

Bail - engine/blade control

$

$

Currently unavailable

16

Homelite JA993670

Bushing - control bail

$

$

Not available

17

Homelite JA993860

Bail - ground drive control

$18.99

$

Usually ships in 3-7 days

0

18

Homelite JA993682

Sleeve - ground drive bail

$

$

Not available

19

Homelite JA990534

Cable - engine/blade control

$

$

Currently unavailable

20

Homelite JA990535

Cable - ground drive

$

$

Currently unavailable

21

Homelite JA994274

Cable Tie

$

$

Not available

22

Homelite 04614

Decal - starting instructions

$

$

Currently unavailable
