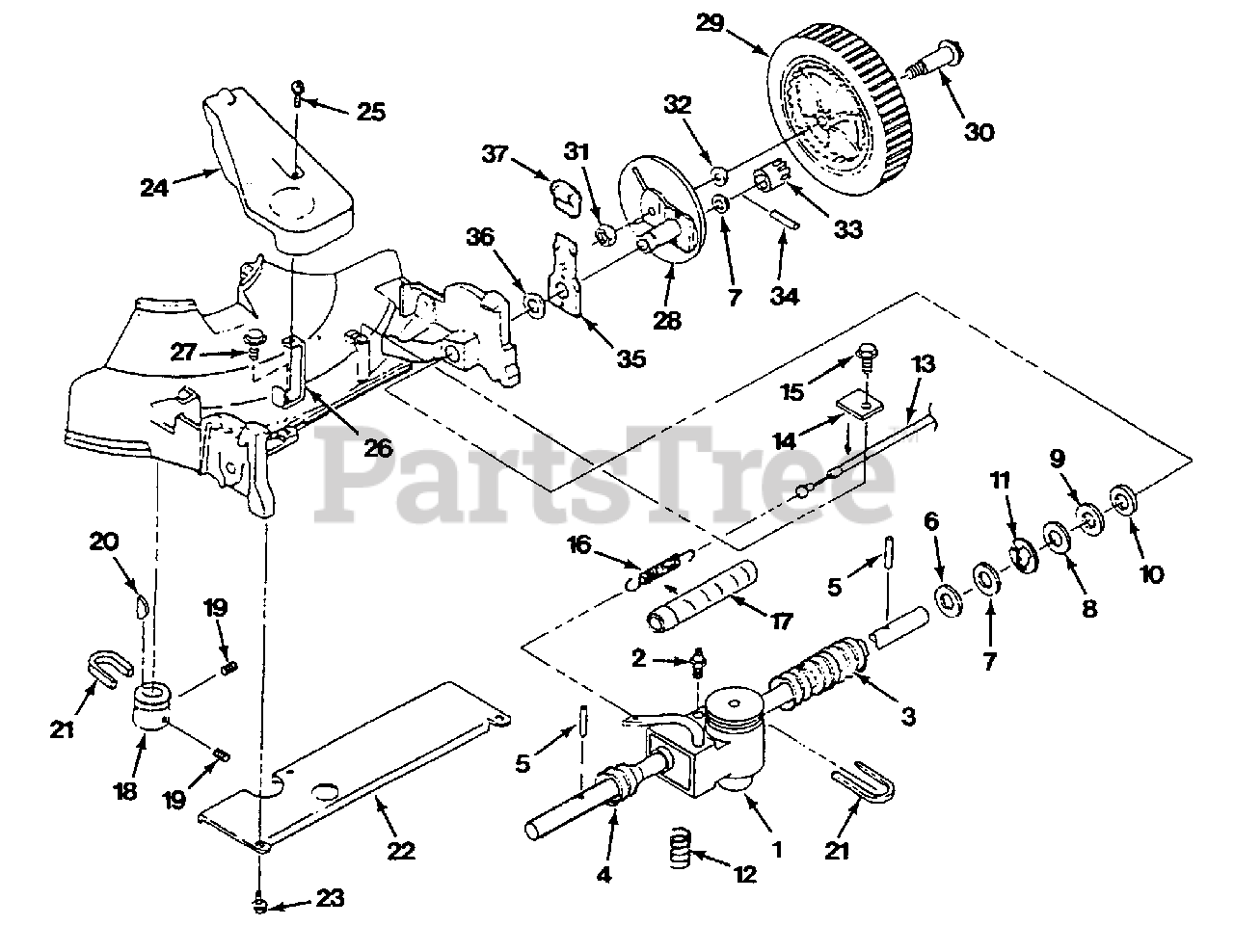

HSD 20 P5 (UT-30523) - Homelite 20" Side-Discharge Walk-Behind Mower Self-Propelled Parts Diagram

20" Side-Discharge Walk-Behind Mower

Self-Propelled Parts Diagram

  • Title

1

Homelite GP300013

Reducer - gear, complete

$

$

Currently unavailable

2

Homelite JA990415

Vent - gear reducer

$

$

Not available

3

Homelite GP115451

Cover - axle, long

$

$

Not available

4

Homelite GP115452

Cover - axle, short

$

$

Currently unavailable

5

Homelite JA461361

Pin - roll 1/8 x 7/8

$

$

Not available

6

Homelite JA990446

Washer - flat

$

$

Not available

7

Homelite JA351077

Washer - flat 1/2

$

$

Not available

8

Homelite JA353406

Washer - flat 1

$

$

Not available

9

Homelite JA328147

Washer - shim 1

$

$

Not available

10

Homelite JA454037

Washer - ware

$

$

Not available

11

Homelite JA458451

Ring - retainer

$1.99

$

Usually ships in 3-7 days

0

12

Homelite JA994858

Spring - compression

$

$

Not available

13

Homelite JA990535

Cable - drive control

$

$

Currently unavailable

14

Homelite JA991065

Clamp - drive cable

$

$

Not available

15

Homelite GP158089

Screw - hex 1/4-20 x 1/2 tap

$

$

Currently unavailable

16

Homelite JA375748

Spring - extension

$

$

Not available

17

Homelite JA990641

Cover - spring

$

$

Currently unavailable

18

Homelite GP095027

Pulley - drive
(Superseded to JA993007)

$

$

Not available

19

Homelite JA422505

Screw - set 1/4-20 x 3/8

$

$

Not available

20

Homelite JA463029

Key - Woodruff #61

$

$

Not available

21

Homelite JA390165

Belt - drive
(Superseded to UP07148)

$

$

Not available

22

Homelite JA994309

Cover - rear

$

$

Currently unavailable

23

Homelite JA408878

Screw - hex 1/4-20 x 3/4

$

$

Not available

24

Homelite JA994312

Cover - gear reducer

$

$

Currently unavailable

25

Homelite JA408879

Screw - phillips 1/4-20 x 3/4

$

$

Currently unavailable

26

Homelite JA994325

Bracket - cover

$

$

Currently unavailable

27

Homelite JA408865

Screw - hex 1/4-20 x 9/16 tap

$

$

Currently unavailable

28

Homelite GP023712

Support - drive wheel

$

$

Currently unavailable

29

Homelite JA993975

Wheel - 8" w/tire

$

$

Not available

30

Homelite JA992138

Bolt - wheel w/nut
(Superseded to UP06685)

Note: Includes ref 31

$

$

Currently unavailable

31

Homelite JA631452

Nut - hex 3/8-16 lock

$

$

Currently unavailable

32

Homelite JA359500

Washer - flat

$

$

Not available

33

Homelite JA994800

Pinion - drive RH

$

$

Not available

Homelite JA994801

Pinion - drive LH

$

$

Currently unavailable

34

Homelite JA994740

Pin - drive

$

$

Currently unavailable

35

Homelite JA991288

Lever - height adjuster, rear

$

$

Not available

36

Homelite JA359141

Spacer - adjuster lever

$

$

Not available

37

Homelite JA336623

Tip - adjuster lever
(Superseded to UP06697)

$

$

Not available
