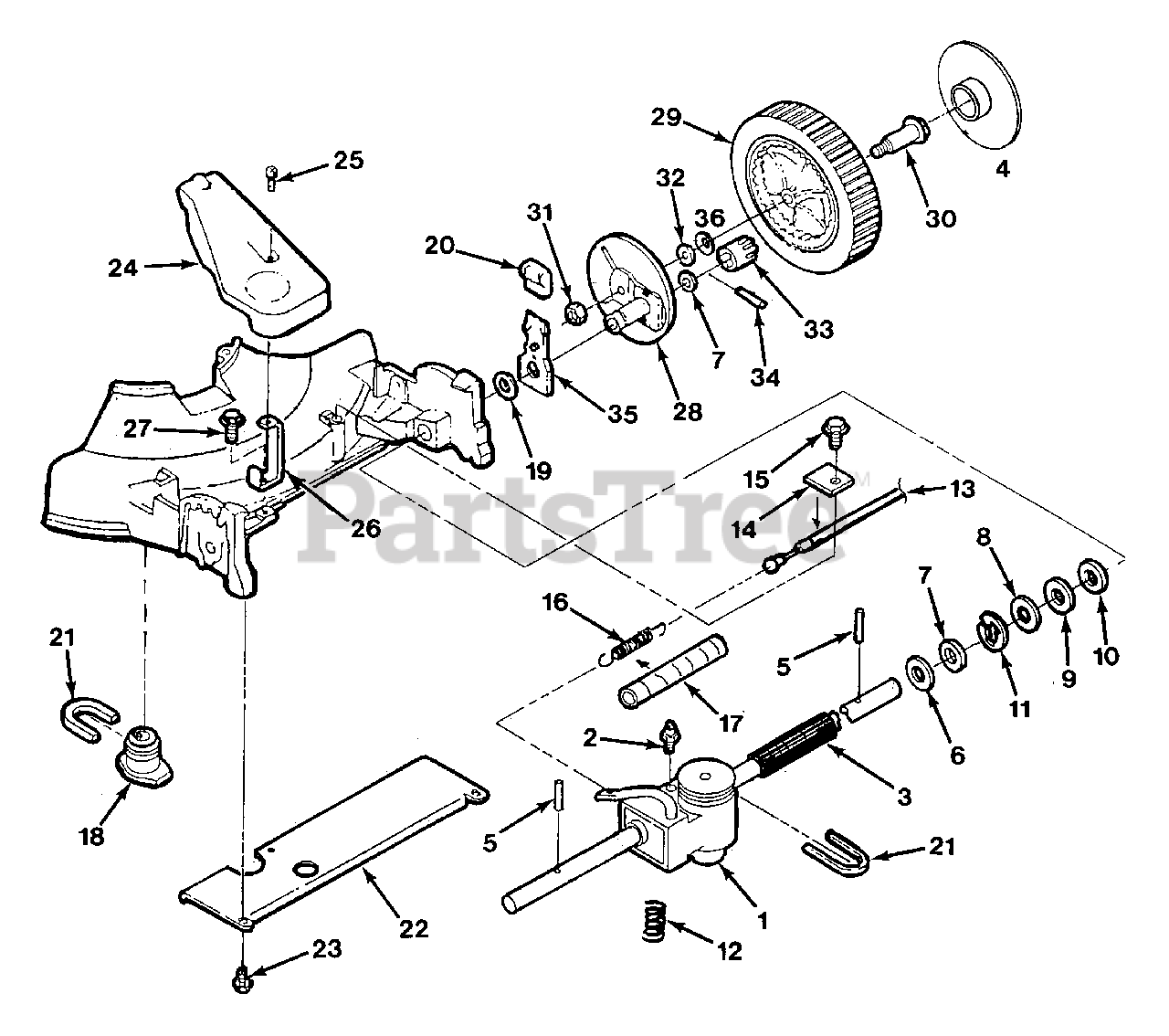

HSD 20 (UT-30520-B) - Homelite 20" Walk-Behind Mower Rear Wheels & Drive Parts Diagram

20" Walk-Behind Mower

Rear Wheels & Drive Parts Diagram

  • Title

1

Homelite GP300013

Transmission - one speed

$

$

Currently unavailable

2

Homelite JA990415

Vent - Transmission

$

$

Not available

3

Homelite GP115461

Cover - axle, long

$

$

Currently unavailable

4

Homelite GP043254

Hubcap

$

$

Currently unavailable

5

Homelite JA461361

Pin - roll 1/8 x 7/8

$

$

Not available

6

Homelite JA990446

Washer - flat

$

$

Not available

7

Homelite JA351077

Washer - flat 1/2

$

$

Not available

8

Homelite JA353406

Washer - flat 1

$

$

Not available

9

Homelite JA328147

Washer - shim 1

$

$

Not available

10

Homelite JA454037

Washer - wave

$

$

Not available

11

Homelite JA458451

Ring - retainer

$1.99

$

Usually ships in 3-7 days

0

12

Homelite JA994858

Spring - compression

$

$

Not available

13

Homelite JA990535

Cable - ground drive

$

$

Currently unavailable

14

Homelite JA991065

Clamp - drive cable

$

$

Not available

15

Homelite GP158089

Screw - hex 1/4-20 x 1/2 tap

$

$

Currently unavailable

16

Homelite JA375748

Spring - extension

$

$

Not available

17

Homelite JA990641

Cover - spring

$

$

Currently unavailable

18

Homelite GP095216

Adapter - blade w/pulley

$

$

Currently unavailable

19

Homelite JA359141

Spacer - adjuster lever

$

$

Not available

20

Homelite JA336623

Tip - adjuster lever
(Superseded to UP06697)

$

$

Not available

21

Homelite JA390165

Belt - drive
(Superseded to UP07148)

$

$

Not available

22

Homelite JA994309

Cover - rear

$

$

Currently unavailable

23

Homelite JA408878

Screw - hex 1/4-20 x 3/4

$

$

Not available

24

Homelite JA994312

Cover - gear reducer

$

$

Currently unavailable

25

Homelite JA408879

Screw - phillips 1/4-20 x 3/4

$

$

Currently unavailable

26

Homelite JA994325

Bracket - cover

$

$

Currently unavailable

27

Homelite JA408865

Screw - hex 1/4-20 x 9/16 tap

$

$

Currently unavailable

28

Homelite JA990074

Support - drive wheel
(Superseded to GP095304)

$

$

Not available

29

Homelite GP043253

Wheel - 8" w/tire

$

$

Not available

30

Homelite GP166743

Bolt - wheel 3/8-16

$

$

Currently unavailable

31

Homelite GP156406

Nut - hex 3/8-16 flnge lock

$

$

Not available

32

Homelite JA359500

Washer - flat

$

$

Not available

33

Homelite JA994800

Pinion - drive RH

$

$

Not available

Homelite JA994801

Pinion - drive LH

$

$

Currently unavailable

34

Homelite JA994740

Pin - drive

$

$

Currently unavailable

35

Homelite JA991288

Lever - height adjuster, rear

$

$

Not available

36

Homelite GP715607

Washer - Belleville

$2.99

$

Usually ships in 3-7 days

0
