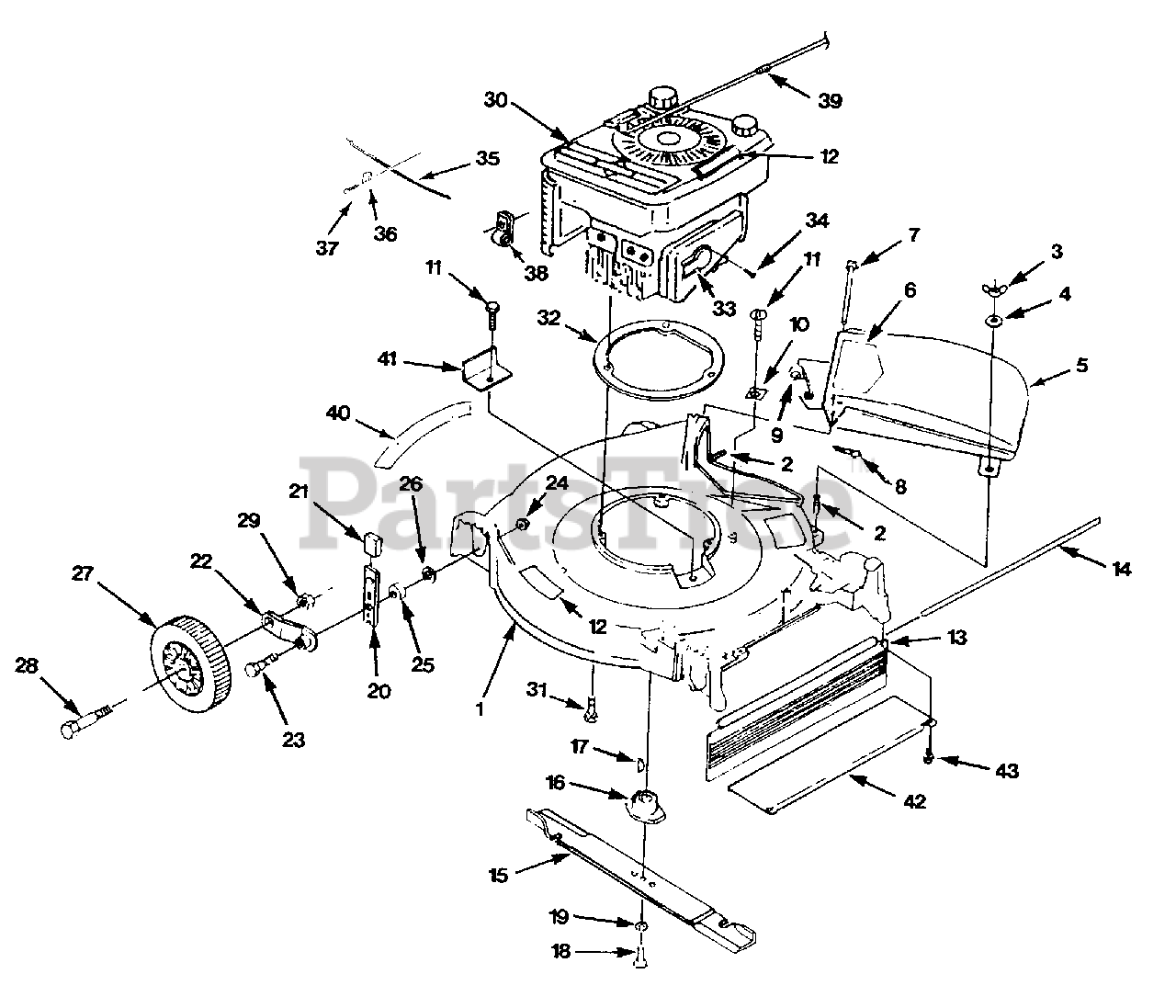

HSD 205 (UT-30521) - Homelite 20" Side-Discharge Walk-Behind Mower Mower Parts Diagram

20" Side-Discharge Walk-Behind Mower

Mower Parts Diagram

  • Title

1

Homelite JA994806

Deck 20" push

$

$

Currently unavailable

2

Homelite JA992964

Stud - 1/4-20 x 3/4

$

$

Not available

3

Homelite JA992974

Nut - wing 1/4-20 nylock

$

$

Not available

4

Homelite JA453023

Washer - flat 1/4
(Superseded to 678013001)

$2.49

$

Usually ships in 3-7 days

0

5

Homelite JA992998

Cover - discharge opening
(Superseded to UP06680)

$

$

Currently unavailable

6

Homelite JA992264

Decal - DANGER CPSC

$

$

Not available

7

Homelite JA992958

Pin - hinge

$

$

Currently unavailable

8

Homelite JA460014

Pin - cotter

$

$

Not available

9

Homelite JA375276

Spring - cover

$

$

Currently unavailable

10

Homelite JA992981

Bracket - rear bagger

$

$

Currently unavailable

11

Homelite JA409907

Screw - hex tap 1/4-20 x 1/2

$

$

Not available

12

Homelite 04443

Decal - DANGER, blade

$12.99

$

Usually ships in 3-7 days

0

13

Homelite JA339238

Flap - drag
(Superseded to UP06701)

$

$

Not available

14

Homelite JA375391

Rod - drag flap

$

$

Currently unavailable

15

Homelite JA993820

Blade - cutter 20"

$

$

Not available

16

Homelite JA991821

Adapter - blade

$35.99

$

Usually ships in 3-7 days

0

17

Homelite JA463029

Key - woodruff #61

$

$

Not available

18

Homelite JA403753

Bolt - hex 3/8-24 x 1-1/4 Gde 8

$

$

Not available

19

Homelite GP156919

Washer - split lock 3/8 hvy

$

$

Currently unavailable

20

Homelite JA990087

Lever - height adjuster
(Superseded to GP586051)

$44.99

$

Usually ships in 3-7 days

0

21

Homelite JA336623

Tip - adjuster lever
(Superseded to UP06697)

$

$

Not available

22

Homelite JA991287

Arm - wheel mount
(Superseded to GP031455)

$

$

Currently unavailable

23

Homelite JA359180

Bolt Hex 5/16-18 x 1 - 5/8 shldr

$

$

Not available

24

Homelite JA445775

Nut - hex 5/16-18 flnge lock
(Superseded to UP06674)

$

$

Not available

25

Homelite JA358362

Spacer - adjuster lever

$

$

Not available

26

Homelite JA453009

Washer - flat 5/16
(Superseded to UP07173)

$

$

Not available

27

Homelite JA993958

Wheel 8"
(Superseded to UP06670)

$

$

Not available

28

Homelite JA992138

Bolt - wheel w/nut
(Superseded to UP06685)

$

$

Currently unavailable

29

Homelite JA631452

Nut - hex jam 3/8-16 cntr lock

$

$

Currently unavailable

30

Engine

Note: For engine replacement parts, locate the engine brand name, model number, and type number and consult the appropriate dealer in your area.

$

$

Not available

31

Homelite JA408876

Bolt - hex 3/8-16 x 1 1/2

$

$

Not available

32

Homelite JA994311

Ring - engine

$

$

Not available

33

Homelite JA359256

Deflector - muffler

$

$

Not available

34

Homelite JA408880

Screw-tap #8-32 x 3/8

$

$

Currently unavailable

35

Homelite JA994864

Control - throttle w/cable

$

$

Currently unavailable

36

Homelite JA991876

Clamp - cable

$

$

Currently unavailable

37

Homelite GP150623

Screw - tap #10-16 x 5/8

$8.49

$

Usually ships in 3-7 days

0

38

Homelite GP447607

Clip - cable

$

$

Currently unavailable

39

Homelite JA990567

Stop - rope

$

$

Not available

40

Homelite JA995064

Decal - logo

$

$

Currently unavailable

41

Homelite JA991286

Cover - belt opening

$

$

Currently unavailable

42

Homelite JA994308

Cover - rear
(Superseded to JA994309)

$

$

Currently unavailable

43

Homelite JA408878

Screw - hex 1/4 - 20 x 3/4

$

$

Not available
