HSM 750 (UT-01320) - Homelite Pump Pump Parts Diagram

Pump

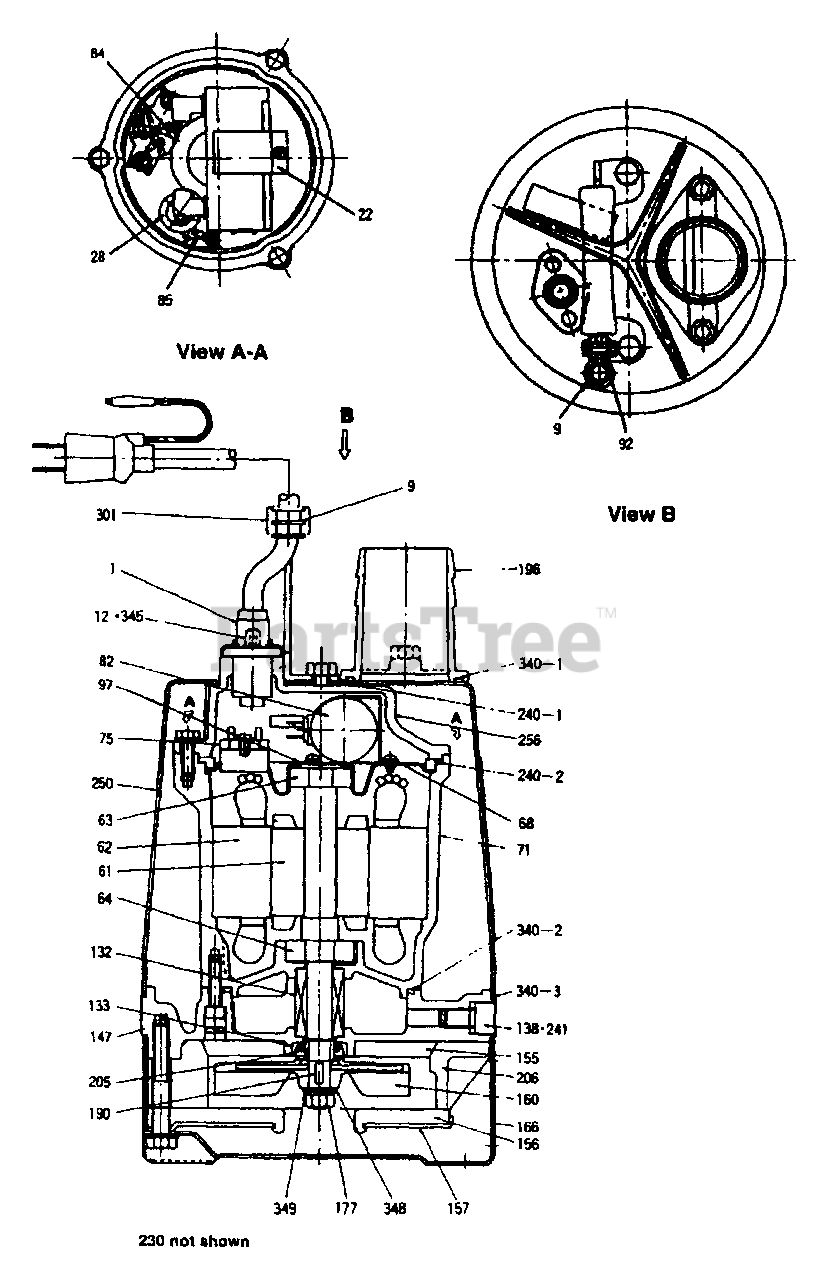

Pump Parts Diagram

  • Title

1

Homelite 0732501

Power cable

$

$

Not available

9

Homelite 0732502

Cable band

$

$

Not available

12

Homelite 0732503

Cable nut

$

$

Not available

22

Homelite 0732504

Band

$

$

Not available

28

Homelite 0732505

Grommets

$

$

Not available

61

Homelite 0732542

Rotor

$

$

Currently unavailable

62

Homelite 0732543

Slator

$

$

Currently unavailable

63

Homelite 0732508

Ball bearing (Upper)

$

$

Currently unavailable

64

Homelite 0732509

Ball bearing (Lower)

$

$

Not available

68

Homelite 0732510

Bearing housing

$

$

Not available

71

Homelite 0732544

Stator casing

$

$

Currently unavailable

75

Homelite 0732545

Motor Protector

$

$

Not available

82

Homelite 0732513

Capacitor

Note: Single phase

$

$

Not available

84

Homelite 0732514

Lead Wire

$

$

Not available

85

Homelite 0732515

Earth wire

$

$

Not available

92

Homelite 0732516

Spacer

$

$

Not available

97

Homelite 0732517

Wave washer

$

$

Not available

132

Homelite 0732518

Shaft seal

Note: Mechanical seal

$

$

Not available

133

Homelite 0732519

Oil seal

$

$

Not available

138

Homelite 0732520

Oil plug

$

$

Not available

147

Homelite 0732521

Seal bracket

$

$

Not available

155

Homelite 0732522

Rear over

$

$

Not available

156

Homelite 0732523

Suction plate

$

$

Not available

160

Homelite 0732547

Impeller (60 Hz)

$

$

Not available

163

Homelite 0732525

Suction cover

$

$

Not available

166

Homelite 0732526

Strainer

$

$

Not available

177

Homelite 0732527

Impeller nut
(Superseded to 0732556)

$

$

Not available

190

Homelite 073252B

Parallel key

$

$

Currently unavailable

196

Homelite 0732529

Hose coupling

$

$

Not available

205

Homelite 0732530

Sleeve

$

$

Not available

206

Homelite 0732531

Pump casing

$

$

Not available

230

Homelite 0732532

Seal unit

Note: Not shown

$

$

Currently unavailable

240-1

Homelite 0732533

Packing

$

$

Not available

240-2

Homelite 0732550

Packing

$

$

Currently unavailable

241

Homelite 0732534

Gasket

$

$

Currently unavailable

340-1

Homelite 0732535

O-Ring

$

$

Not available

340-2

Homelite 0732548

O-Ring
(Superseded to UP07224)

$

$

Not available

340-3

Homelite 0732549

O-Ring

$

$

Not available

250

Homelite 0732546

Casing

$

$

Not available

256

Homelite 0732537

Motor cover

$

$

Not available

301

Homelite 0732538

Handle

$

$

Not available

345

Homelite 0732539

Stud bolt

$

$

Not available

348-2

Homelite 0732540

Washer

$

$

Not available

349

Homelite 0732541

Spring Washer

$

$

Not available

157

UNKNOWN

$

$

Not available

348

UNKNOWN

$

$

Not available
