HSM1336 IK2 ATDR/A (SBCJ) - Honda 36" Snow Blower, Made in Japan (SN: SBCJ-5510001 - SBCJ-9999999) CHANGE LEVER Parts Diagram

36" Snow Blower, Made in Japan

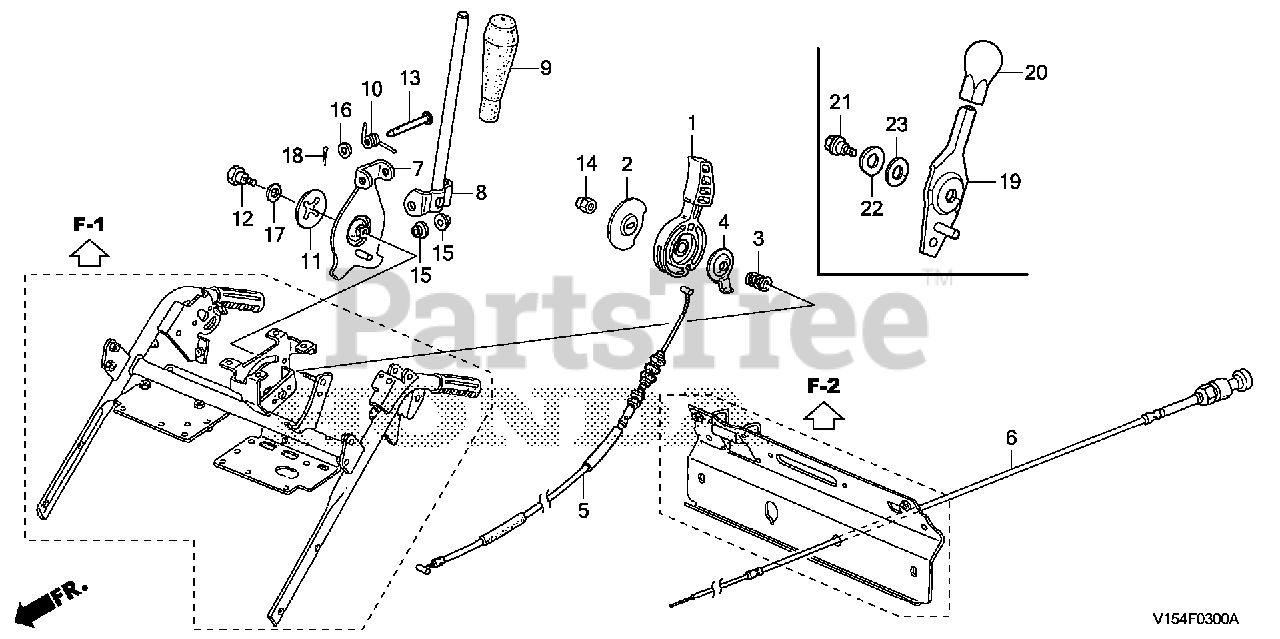

CHANGE LEVER Parts Diagram

  • Title

7

Honda 24360-V15-000

ARM, CHANGE

$22.99

$

Usually ships in 3-6 days

0

8

Honda 24411-V15-F00

LEVER, CHANGE

$387.99

$

Usually ships in 3-6 days

0

9

Honda 24411-735-A10

GRIP, CHANGE LEVER

$8.99

$

Usually ships in 3-6 days

0

10

Honda 24466-V15-000

SPRING, CHANGE LEVER RETURN

$3.99

$

Usually ships in 3-6 days

0

11

Honda 42915-959-000

SPRING, ADJUSTING ARM

$7.99

$

Usually ships in 3-6 days

0

12

Honda 90102-736-000

BOLT, THROTTLE LEVER

$4.49

$

Usually ships in 3-6 days

0

13

Honda 90131-GE1-670

PIN, PILLION STEP

$6.49

$

Usually ships in 3-6 days

0

15

Honda 91561-V15-000

BUSH, TURN LEVER

$3.99

$

Usually ships in 3-6 days

0

16

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

17

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, PLAIN (12MM)

$

$

Not available

18

Honda 94201-16120

PIN, COTTER (1.6X12)

$1.49

$

In Stock, Qty 6

0

19

Honda 17851-V15-305

LEVER, THROTTLE (COO)

$34.99

$

Usually ships in 3-6 days

0

20

Honda 17853-V21-000

KNOB, THROTTLE LEVER (NOT AVAILABLE)

$

$

Currently unavailable

21

Honda 90105-GBL-870

BOLT, MAIN STAND LOCK

$2.49

$

Usually ships in 3-6 days

0

22

Honda 90455-VA2-000

WASHER, WHEEL

$4.99

$

In Stock, Qty 20+

0

23

Honda 94101-12800

WASHER, PLAIN (12MM)

$1.99

$

Usually ships in 3-6 days

0
