HSM1336 IK2 ATDR (SBCJ) - Honda 36" Snow Blower, Made in Japan (SN: SBCJ-5500001 - SBCJ-5509999) AUGER HOUSING Parts Diagram

36" Snow Blower, Made in Japan

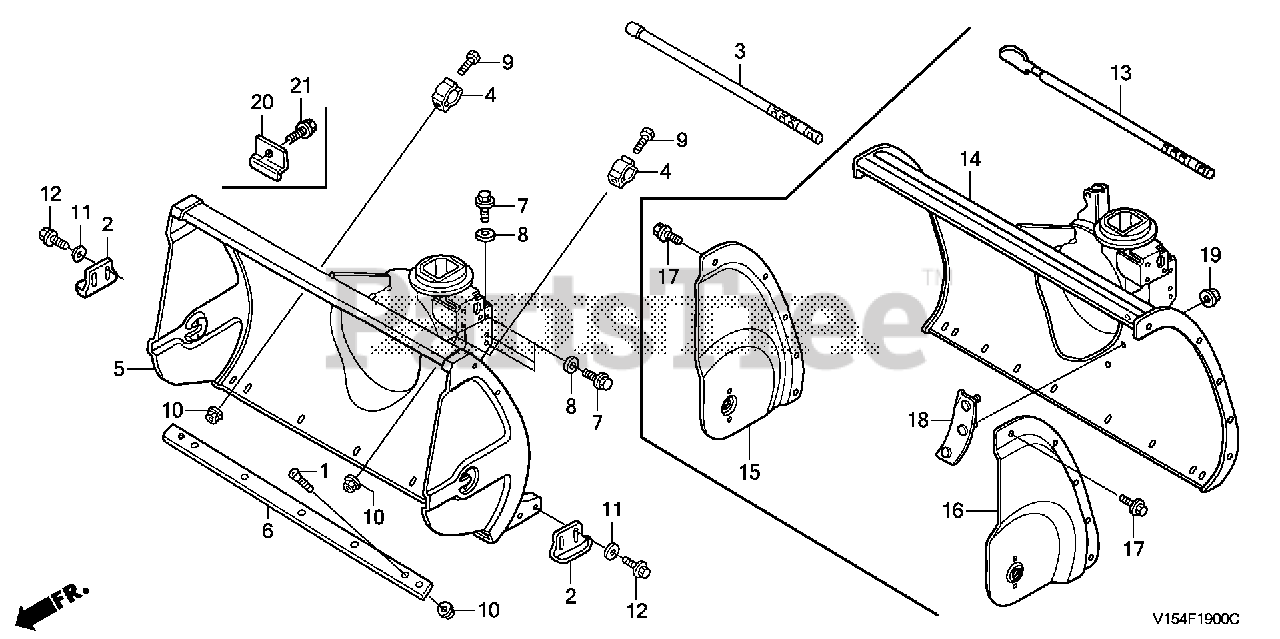

AUGER HOUSING Parts Diagram

  • Title

1

Honda 75556-605-010

BOLT, DOOR LOCK STRIKER

$8.49

$

Usually ships in 3-6 days

0

2

Honda 76153-736-010

SEE PART DETAILS - PRI; SKID, AUGER

$27.99

$

In Stock, Qty 7

0

4

Honda 76212-V15-000

BRACKET, SNOW DROP BAR

$8.99

$

Usually ships in 3-6 days

0

5

Honda 76710-V15-N11

HOUSING, AUGER

$1870.99

$

Usually ships in 3-6 days

0

6

Honda 76713-V15-E00

GUARD, AUGER HOUSING

$52.99

$

Usually ships in 3-6 days

0

9

Honda 92101-08016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X16)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

11

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

12

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, Qty 6

0

13

Honda 76211-756-000

BAR, SNOW DROP

$40.99

$

Usually ships in 3-6 days

0

18

Honda 76714-V15-010

GUARD, AUGER (UPPER)

$40.99

$

Usually ships in 3-6 days

0

19

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, Qty 10

0

20

Honda 76719-V15-000

GUIDE, ROLLING

$15.99

$

Usually ships in 3-6 days

0

21

Honda 95701-10016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X16)

$1.99

$

Usually ships in 3-6 days

0
