HSM1336 IK2 ATDR (SBCJ) - Honda 36" Snow Blower, Made in Japan (SN: SBCJ-5500001 - SBCJ-5509999) TENSIONER ARM Parts Diagram

36" Snow Blower, Made in Japan

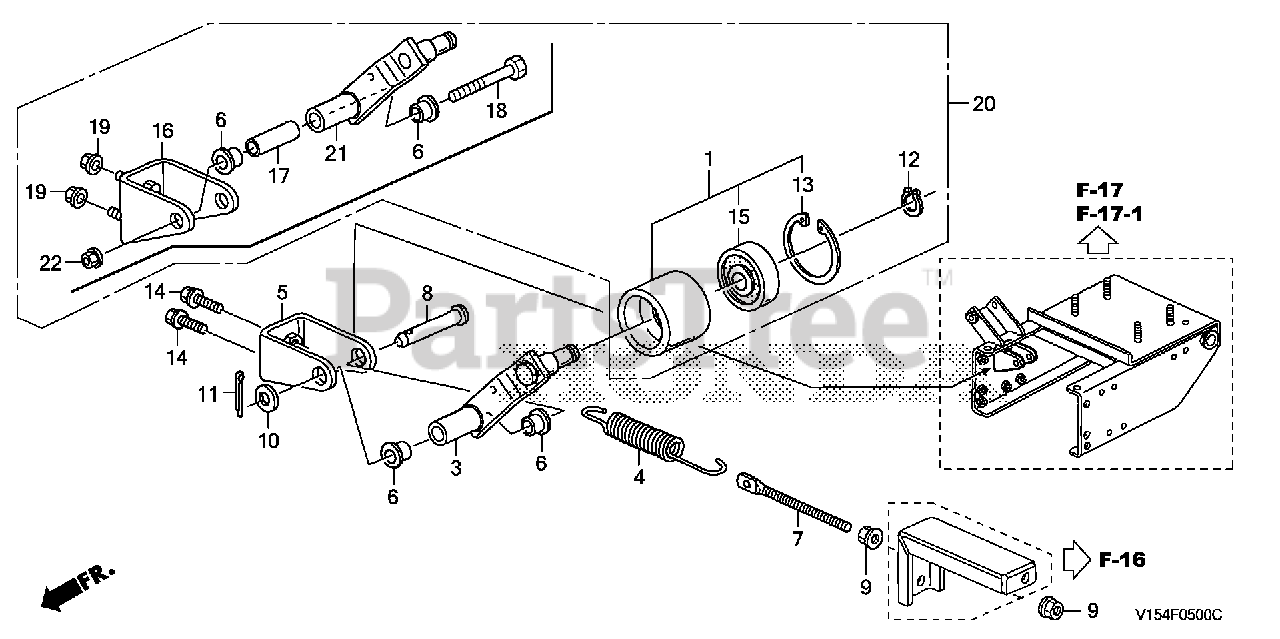

TENSIONER ARM Parts Diagram

  • Title

1

Honda 22465-V15-F00

ROLLER, TENSION

$31.99

$

Usually ships in 3-6 days

0

4

Honda 22531-V15-000

SPRING, BELT TENSION

$4.99

$

Usually ships in 3-6 days

0

6

Honda 54429-762-003

BUSH, CHANGE ARM

$3.99

$

Usually ships in 3-6 days

0

7

Honda 90117-752-M30

BOLT, ADJUSTING (8X80)

$6.99

$

Usually ships in 3-6 days

0

9

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

12

Honda 94510-20000

CIRCLIP (OUTER) (20MM)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 94520-47000

CIRCLIP (INNER) (47MM)

$2.99

$

In Stock, only 2 left!

0

15

Honda 96150-62040-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204UU)

$27.99

$

In Stock, Qty 5

0

16

Honda 51176-V15-F00

BRACKET, TENSION ARM

$15.99

$

Usually ships in 3-6 days

0

17

Honda 91575-V15-F00

COLLAR (8.1X12X37.1)

$6.99

$

Usually ships in 3-6 days

0

18

Honda 92201-08055-0A

BOLT, HEX. (8X55)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

21

Honda 22521-V15-F00

ARM, TENSION

$67.99

$

Usually ships in 3-6 days

0

22

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0
