HSM1336 IK2 ATDR (SBCJ) - Honda 36" Snow Blower, Made in Japan (SN: SBCJ-5500001 - SBCJ-5509999) TOOLS Parts Diagram

36" Snow Blower, Made in Japan

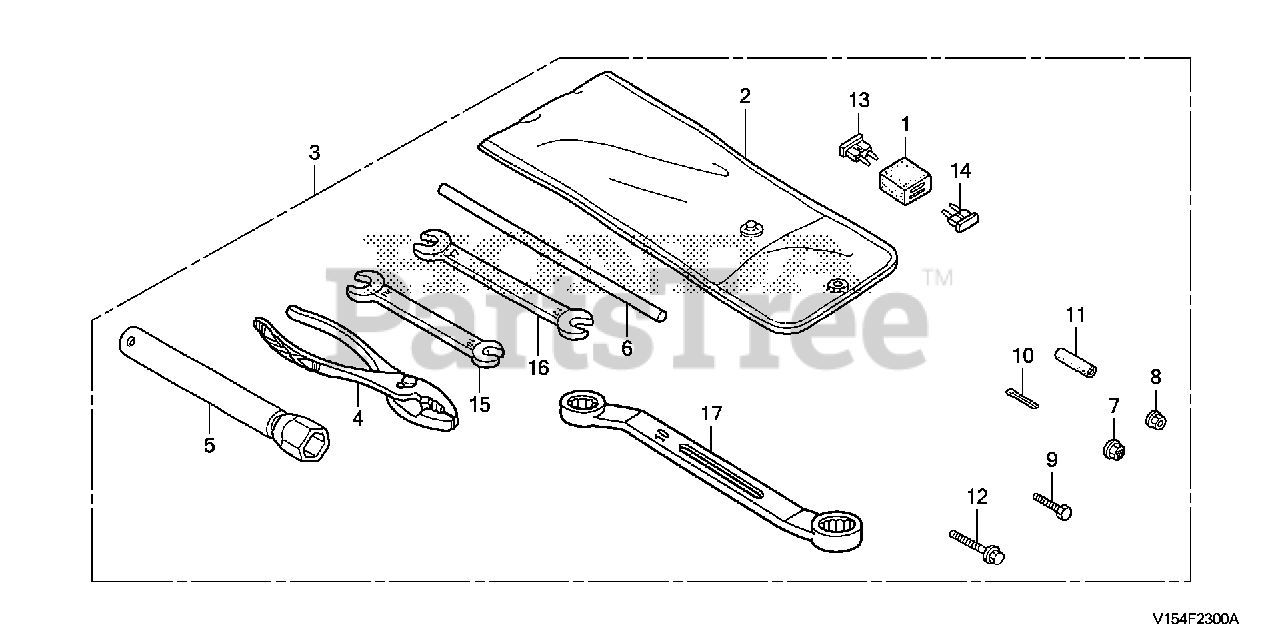

TOOLS Parts Diagram

  • Title

1

Honda 38306-KK4-000

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

$4.49

$

Usually ships in 3-6 days

0

2

Honda 84702-ST5-000

BAG, TOOL
(Superseded to 89101-V15-S10)

$13.99

$

Usually ships in 3-6 days

0

4

Honda 89210-GBJ-J00

PLIERS (135) (RIKEN)

$11.99

$

Usually ships in 3-6 days

0

5

Honda 89218-ZE1-000

WRENCH, SPARK PLUG (Honda Code 1431048).

$20.99

$

Usually ships in 3-6 days

0

6

Honda 89219-805-000

HANDLE, BOX WRENCH (NOT AVAILABLE) (Honda Code 0066654).

$3.99

$

Usually ships in 3-6 days

0

7

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$0.99

$

In Stock, Qty 20+

0

9

Honda 92101-08025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X25) (Honda Code 2651537).

$2.49

$

In Stock, Qty 7

0

10

Honda 94201-25300

SEE PART DETAILS - PRI; PIN, COTTER (2.5MM) (Honda Code 0156091).

$1.49

$

Usually ships in 3-6 days

0

11

Honda 95005-17001-20M

BULK HOSE, VACUUM (17X1000) (17X27)

$66.99

$

Usually ships in 3-6 days

0

12

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, Qty 5

0

13

Honda 98200-40500

FUSE, MINI (5A)

$1.99

$

In Stock, only 3 left!

0

14

Honda 98200-41500

FUSE, MINI (15A)

$1.99

$

Usually ships in 3-6 days

0

15

Honda 99001-10140

WRENCH (10X14) (OPEN END)

$4.99

$

Usually ships in 3-6 days

0

16

Honda 99001-12170

WRENCH (12X17) (OPEN END) (NOT AVAILABLE)

$10.99

$

Usually ships in 3-6 days

0

17

Honda 89227-461-000

WRENCH, EYE (10X12)

$33.99

$

Usually ships in 3-6 days

0
