HSM1336 IK2 ATDR (SBCJ) - Honda 36" Snow Blower, Made in Japan (SN: SBCJ-5500001 - SBCJ-5509999) TRANSMISSION GEAR@MOTOR Parts Diagram

36" Snow Blower, Made in Japan

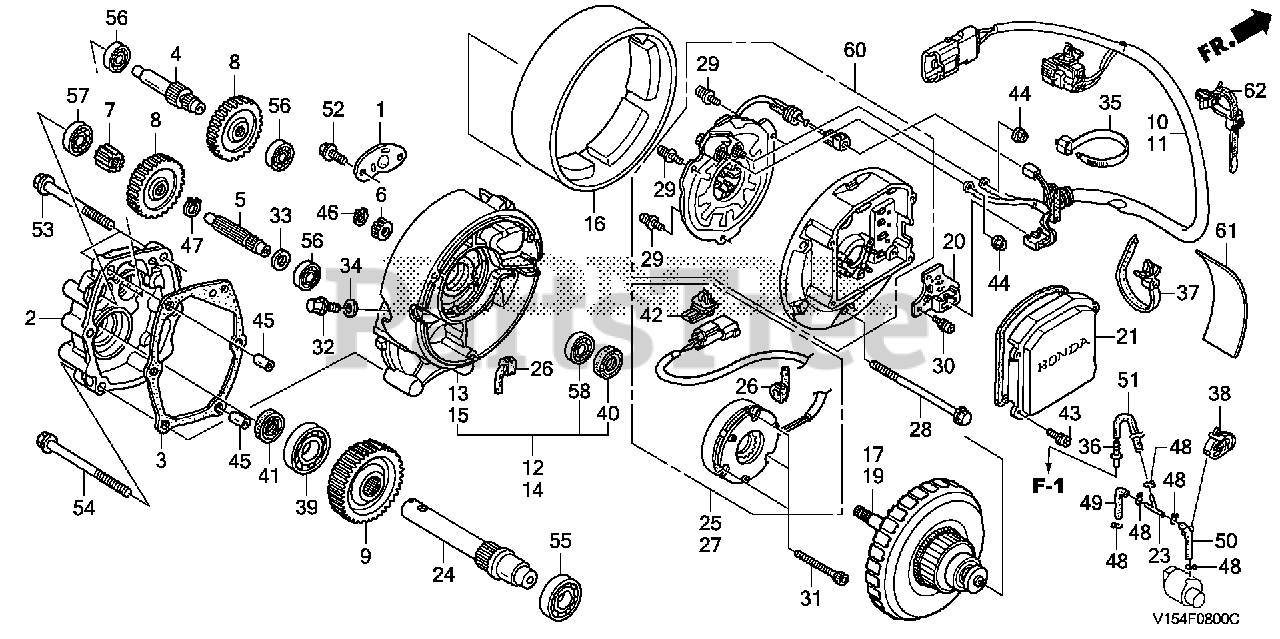

TRANSMISSION GEAR@MOTOR Parts Diagram

  • Title

1

Honda 12370-ZG1-020

SEE PART DETAILS - PRI; CAP, BREATHER CHAMBER

$8.99

$

Usually ships in 3-6 days

0

2

Honda 21111-V15-F00

CASE, REDUCTION

$286.99

$

Usually ships in 3-6 days

0

3

Honda 21115-V15-000

GASKET, TRANSMISSION CASE

$13.99

$

Usually ships in 3-6 days

0

4

Honda 23221-V15-000

COUNTERSHAFT

$66.99

$

Usually ships in 3-6 days

0

5

Honda 23246-V15-000

SHAFT, IDLER

$70.99

$

Usually ships in 3-6 days

0

6

Honda 23411-V15-000

GEAR, PRIMARY DRIVE (12T)

$70.99

$

Usually ships in 3-6 days

0

7

Honda 23414-V15-000

GEAR, FINAL DRIVE (11T)

$32.99

$

Usually ships in 3-6 days

0

8

Honda 23437-V15-000

GEAR, PRIMARY DRIVEN (47T)

$70.99

$

Usually ships in 3-6 days

0

9

Honda 23442-V15-F00

GEAR, FINAL DRIVEN (44T)

$68.99

$

Usually ships in 3-6 days

0

10

Honda 32145-V15-N30

HARNESS ASSY., R. MOTOR JOINT

$99.99

$

Usually ships in 3-6 days

0

11

Honda 32146-V15-N30

HARNESS ASSY., L. MOTOR JOINT

$99.99

$

Usually ships in 3-6 days

0

12

Honda 36210-V15-003

CASE, R. FR. MOTOR

$151.99

$

Usually ships in 3-6 days

0

13

Honda 36211-V15-003

CASE, R. FR. MOTOR

$159.99

$

Usually ships in 3-6 days

0

14

Honda 36215-V15-003

CASE, L. FR. MOTOR

$151.99

$

Usually ships in 3-6 days

0

15

Honda 36216-V15-003

CASE, L. FR. MOTOR

$159.99

$

Usually ships in 3-6 days

0

16

Honda 36220-V02-003

STATOR

$103.99

$

Usually ships in 3-6 days

0

17

Honda 36230-V15-003

ARMATURE, R.

$86.99

$

Usually ships in 3-6 days

0

19

Honda 36240-V15-003

ARMATURE, L.

$86.99

$

Usually ships in 3-6 days

0

20

Honda 36251-V02-013

CONTROL UNIT

$180.99

$

Usually ships in 3-6 days

0

21

Honda 36263-V02-013

COVER, CONTROL UNIT

$13.99

$

Usually ships in 3-6 days

0

23

Honda 38581-SB2-003

JOINT Y, TUBE (MITSUBA)

$12.99

$

Usually ships in 3-6 days

0

24

Honda 42311-V15-F00

SHAFT, WHEEL

$110.99

$

Usually ships in 3-6 days

0

25

Honda 75100-V15-831

BRAKE ASSY., R.

$150.99

$

Usually ships in 3-6 days

0

26

Honda 75113-V15-000

GROMMET, BRAKE CORD

$4.49

$

Usually ships in 3-6 days

0

27

Honda 75200-V15-831

BRAKE ASSY., L.

$150.99

$

Usually ships in 3-6 days

0

28

Honda 90001-V02-003

BOLT, FLANGE (6X70)

$4.49

$

Usually ships in 3-6 days

0

29

Honda 90002-V02-003

SCREW-WASHER

$2.99

$

Usually ships in 3-6 days

0

30

Honda 90004-V02-003

SCREW-WASHER (3X6)

$2.99

$

Usually ships in 3-6 days

0

31

Honda 90102-V02-000

BOLT, SOCKET (5X25)

$2.99

$

Usually ships in 3-6 days

0

32

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 4 left!

0

33

Honda 90412-KZL-840

WASHER (10MM)

$0.99

$

In Stock, only 2 left!

0

34

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$1.49

$

In Stock, only 3 left!

0

35

Honda 90650-KV6-003

BAND, WIRE (95MM)

$4.49

$

Usually ships in 3-6 days

0

36

Honda 90652-HF7-003

JOINT, BREATHER TUBE

$12.99

$

Usually ships in 3-6 days

0

37

Honda 90672-SB2-003

STRAP, CABLE (105MM) *NH1* (Honda Code 1685536). (BLACK)

$7.49

$

Usually ships in 3-6 days

0

38

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM) (Honda Code 1226265).

$12.99

$

Usually ships in 3-6 days

0

39

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).

$24.99

$

In Stock, only 1 left!

0

40

Honda 91251-V15-004

OIL SEAL (17X35X8)

$8.49

$

Usually ships in 3-6 days

0

41

Honda 91252-888-003

SEE PART DETAILS - SUP; OIL SEAL (25X38X7) (ARAI) (Honda Code 0671628).
(Superseded to 91201-ZG9-U71)

$4.99

$

In Stock, only 1 left!

0

42

Honda 91565-S0X-003

CLIP, CONNECTOR (DARK GREEN)

$4.99

$

Usually ships in 3-6 days

0

43

Honda 93893-04010-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X10)

$1.99

$

In Stock, Qty 6

0

44

Honda 94050-05080

NUT, FLANGE (5MM) (Honda Code 0612671).

$0.99

$

In Stock, Qty 10

0

45

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

46

Honda 94510-10000

CIRCLIP (OUTER) (10MM)

$1.49

$

In Stock, Qty 10

0

47

Honda 94510-12000

CIRCLIP (OUTER) (12MM) Use up to Engine SN 2056819.

$2.49

$

In Stock, only 3 left!

0

48

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

49

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X500) (BULK HOSE 95005-35008-10M)

$14.99

$

Usually ships in 3-6 days

0

50

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X500) (BULK HOSE 95005-35008-10M)

$14.99

$

Usually ships in 3-6 days

0

51

Honda 95005-35001-20M

BULK HOSE, VACUUM (3.5X1000) (3.5X500) (BULK HOSE 95005-35008-10M)

$14.99

$

Usually ships in 3-6 days

0

52

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

53

Honda 95701-08050-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X50) (Honda Code 2935740).

$3.49

$

In Stock, Qty 6

0

54

Honda 95701-08065-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X65)

$2.49

$

In Stock, Qty 5

0

55

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$20.99

$

In Stock, only 2 left!

0

56

Honda 96100-62000-00

BEARING, RADIAL BALL (6200)

$10.99

$

Usually ships in 3-6 days

0

57

Honda 96100-63010-00

BEARING, RADIAL BALL (6301) (NOT AVAILABLE)

$14.99

$

Usually ships in 3-6 days

0

58

Honda 96130-62010-10

BEARING, RADIAL BALL (6201ZZ)

$12.99

$

Usually ships in 3-6 days

0

60

Honda 36235-V15-003

COVER, RR. STATOR

$254.99

$

Usually ships in 3-6 days

0

61

Honda 91902-SB2-003

CUSHION, WIRE HARNESS (50X100)

$10.99

$

Usually ships in 3-6 days

0
