HSM1336 IK2 PTDR (SBCJ) - Honda 36" Snow Blower, Made in Japan (SN: SBCJ-5500001 - SBCJ-9999999) FUEL TANK (2) Parts Diagram
36" Snow Blower, Made in Japan

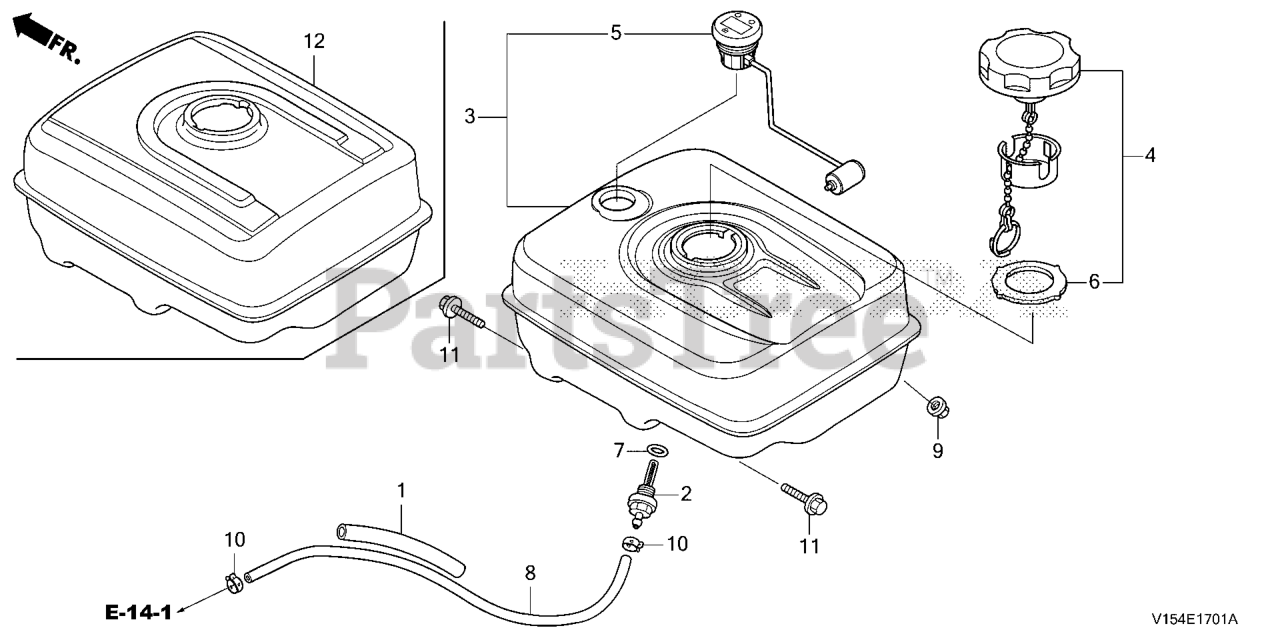

FUEL TANK (2) Parts Diagram
Honda 16854-ZH8-000
SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).
$5.49
$
In Stock, only 4 left!
Honda 16955-ZE1-010
SEE PART DETAILS - PRI; JOINT, FUEL TANK
$9.49
$
In Stock, Qty 20+
Honda 17620-Z4H-920
CAP, FUEL FILLER
$38.99
$
In Stock, only 1 left!
Honda 17631-Z0T-801
GASKET, FUEL FILLER CAP (Honda Code 7346745).
$0.99
$
In Stock, Qty 13
Honda 17631-Z1T-800
GASKET, FUEL FILLER CAP (39X62X3) (TOUYOUSYA)
$
$
Not available
Honda 91353-671-003
SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.
$3.99
$
In Stock, Qty 20+
Honda 91424-Z5T-023
TUBE, FUEL (4.5X235)
$12.99
$
Usually ships in 3-6 days
Honda 94050-08000
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).
$1.49
$
In Stock, Qty 20+
Honda 95002-40800-08
SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).
$3.49
$
In Stock, Qty 20+
Honda 95701-08028-00
SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387).
$1.99
$
In Stock, Qty 6
Honda 17510-Z5T-000ZE
TANK, FUEL *R280*
$379.99
$
Usually ships in 3-6 days
