HSS1332 A AT (SAFA) - Honda 32" Snow Blower, Made in Japan (SN: SAFA-1000001 - SAFA-1999999) CYLINDER Parts Diagram

32" Snow Blower, Made in Japan

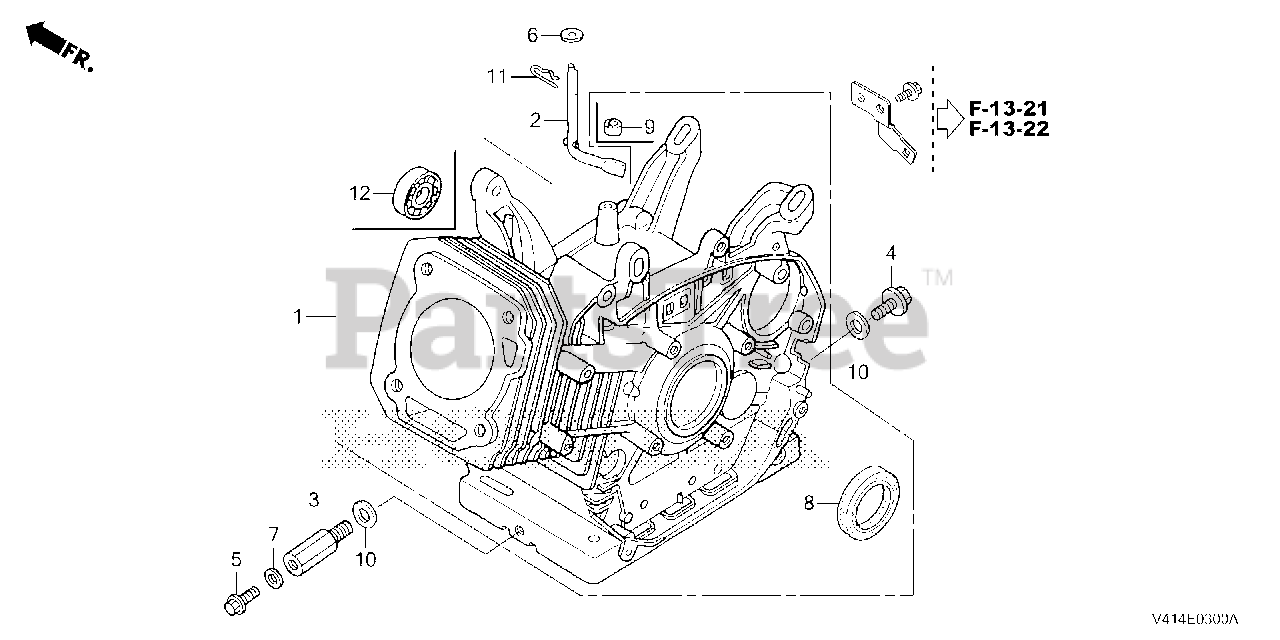

CYLINDER Parts Diagram

  • Title

1

Honda 12000-Z5T-416

CYLINDER ASSY.

$127.99

$

Usually ships in 3-6 days

0

2

Honda 16541-ZE3-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM (Honda Code 4717393).

$17.99

$

Usually ships in 3-6 days

0

3

Honda 19526-ZE3-H60

EXTENSION, OIL DRAIN

$14.99

$

Usually ships in 3-6 days

0

4

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$4.99

$

In Stock, Qty 6

0

5

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 4 left!

0

6

Honda 90446-KE1-000

WASHER (8.2X17X0.8) (Honda Code 2027134).

$2.49

$

In Stock, only 1 left!

0

7

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$1.49

$

In Stock, only 3 left!

0

8

Honda 91201-Z1C-003

OIL SEAL (35X52X8) (NOK)

$9.99

$

In Stock, only 1 left!

0

8

Honda 91201-Z7E-003

OIL SEAL (35X52X8)

$11.99

$

In Stock, only 1 left!

0

9

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5) (Honda Code 2461713).

$5.49

$

In Stock, only 2 left!

0

9

Honda 91203-Z7E-003

OIL SEAL (8X14X5)

$28.99

$

Usually ships in 3-6 days

0

9

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5) (Honda Code 0744326).
(Superseded to 91201-ZE9-003)

$5.49

$

In Stock, only 2 left!

0

10

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 20+

0

11

Honda 94251-10000

PIN, LOCK (10MM) (Honda Code 0159269).

$1.99

$

In Stock, Qty 5

0

12

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$12.99

$

In Stock, only 1 left!

0

12

Honda 91004-KZR-602

BEARING, RADIAL BALL (6202) (FUJIKOSHI)

Note: Use from Engine SN 2172068.

$12.99

$

Usually ships in 3-6 days

0
