HSS928 A ATD (SADA) - Honda 28" Snow Blower, Made in Japan (SN: SADA-1000001 - SADA-1999999) HYDROSTATIC TRANSMISSION (2) Parts Diagram

28" Snow Blower, Made in Japan

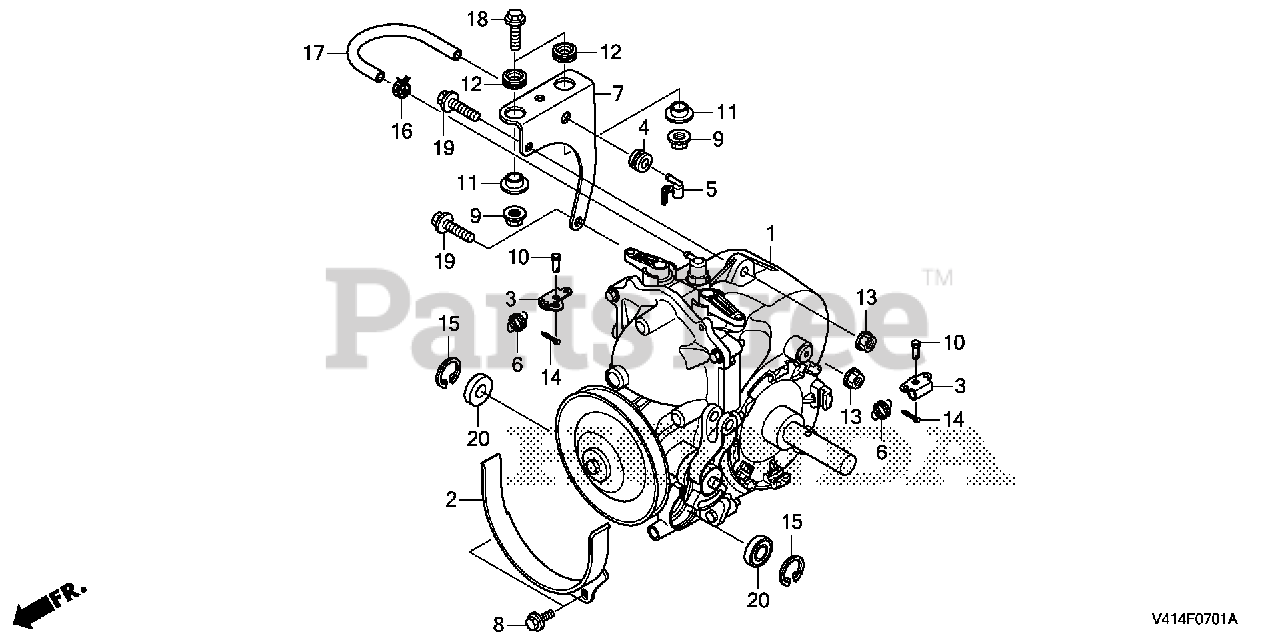

HYDROSTATIC TRANSMISSION (2) Parts Diagram

  • Title

1

Honda 20001-V45-305

SEE PART DETAILS - SUP; TRANSMISSION ASSY.

Note: Use up to Frame SN 1005593.

$

$

Not available

1

Honda 20001-V45-315

SEE PART DETAILS - PRI; TRANSMISSION ASSY.
(Superseded to 20001-V45-325)

Note: Use from Frame SN 1005594 to 1016589.

$

$

Not available

1

Honda 20001-V45-325

TRANSMISSION ASSY.

Note: Use from Frame SN 1005594.

$

$

Not available

2

Honda 22451-V45-A00

GUIDE, BELT

$6.99

$

Usually ships in 3-6 days

0

3

Honda 24412-V45-A00

ARM, CHANGE LEVER

$0.99

$

Usually ships in 3-6 days

0

4

Honda 37215-HM5-670

RUBBER, MOUNTING

$3.49

$

Usually ships in 3-6 days

0

5

Honda 38229-V45-A00

CAP, WATER PROTECTION

$1.99

$

In Stock, only 4 left!

0

6

Honda 43151-V45-A00

SPRING, RETURN

$59.99

$

Usually ships in 3-6 days

0

7

Honda 51136-V45-A00

PLATE, TRANSMISSION MOUNT

$8.49

$

Usually ships in 3-6 days

0

8

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

9

Honda 90301-V45-A00

NUT, FLANGE (8MM)

$3.99

$

Usually ships in 3-6 days

0

10

Honda 90756-V45-A00

PIN, CLEVIS (6.3X17)

$0.99

$

Usually ships in 3-6 days

0

11

Honda 91562-V45-A00

COLLAR, TRANSMISSION MOUNTING

$4.49

$

Usually ships in 3-6 days

0

12

Honda 91651-V45-A00

GROMMET, ENGINE BED

$1.49

$

Usually ships in 3-6 days

0

13

Honda 94050-08070

NUT, FLANGE (8MM)

$2.49

$

In Stock, only 1 left!

0

14

Honda 94201-30180

PIN, COTTER (3.0X18)

$1.49

$

In Stock, Qty 20+

0

15

Honda 94521-32000

CIRCLIP (INNER) (32MM) (Honda Code 2737716).

$

$

Not available

16

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$3.49

$

In Stock, only 3 left!

0

17

Honda 95005-45001-30M

BULK HOSE, VACUUM (4.5X1000) (4.5X290)

$

$

Not available

18

Honda 95701-08022-07

BOLT, FLANGE (8X22)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 95801-08028-07

BOLT, FLANGE (8X28) (NOT AVAILABLE)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 96150-60020-10

BEARING, RADIAL BALL (6002UU)

$19.99

$

In Stock, Qty 12

0
