HSS928 A ATD (SADA) - Honda 28" Snow Blower, Made in Japan (SN: SADA-1000001 - SADA-1999999) RECOIL STARTER (2) Parts Diagram

28" Snow Blower, Made in Japan

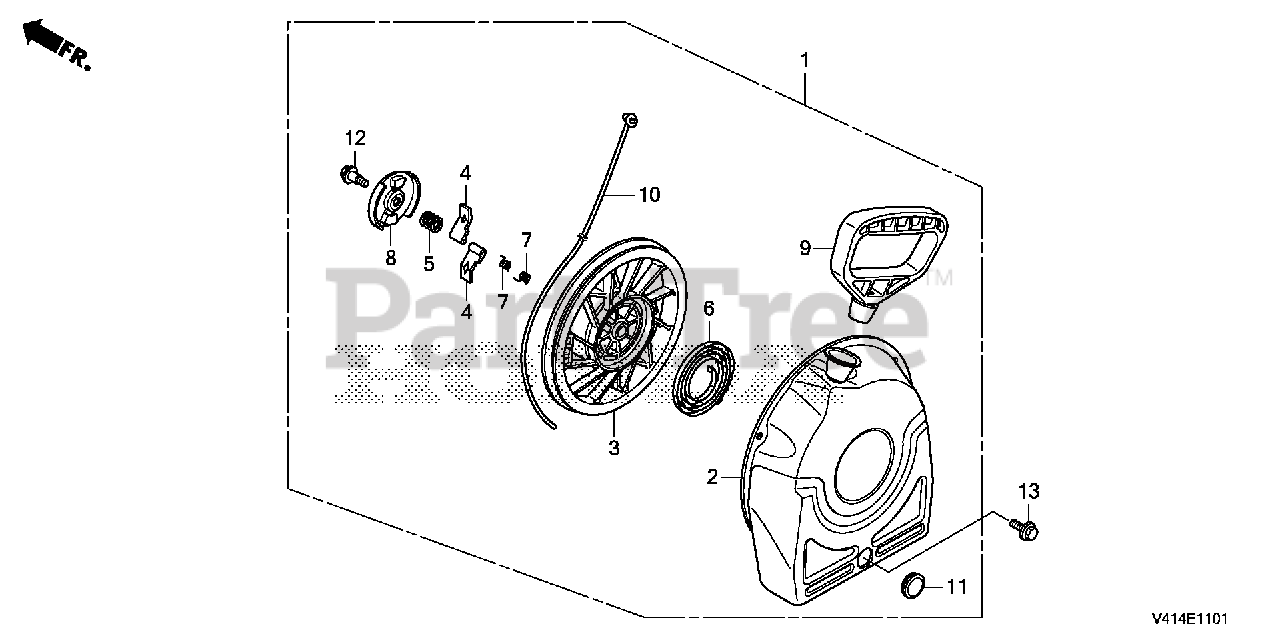

RECOIL STARTER (2) Parts Diagram

  • Title

1

Honda 28400-Z1D-G41

STARTER ASSY., RECOIL (FRAME NO.)

$45.99

$

In Stock, only 1 left!

0

2

Honda 28410-Z1D-G41

CASE, RECOIL STARTER (FRAME NO.)

Note: Use from Engine SN 1019290.

$80.99

$

Usually ships in 3-6 days

0

2

Honda 28410-Z1D-H81

CASE, RECOIL STARTER

Note: Use up to Engine SN 1019289.

$260.99

$

In Stock, only 1 left!

0

3

Honda 28421-Z1D-G41

PULLEY, RECOIL STARTER (FRAME NO.)

Note: Use from Engine SN 1019290.

$40.99

$

Usually ships in 3-6 days

0

3

Honda 28421-Z1D-H81

PULLEY, RECOIL STARTER

Note: Use up to Engine SN 1019289.

$47.99

$

Usually ships in 3-6 days

0

4

Honda 28422-Z1D-G41

RATCHET (FRAME NO.)

Note: Use from Engine SN 1019290.

$18.99

$

Usually ships in 3-6 days

0

4

Honda 28422-Z1D-H81

RATCHET

Note: Use up to Engine SN 1019289.

$10.99

$

Usually ships in 3-6 days

0

5

Honda 28441-Z1D-G41

SPRING, FRICTION (FRAME NO.)

Note: Use from Engine SN 1019290.

$18.99

$

Usually ships in 3-6 days

0

5

Honda 28441-Z1D-H81

SPRING, FRICTION

Note: Use up to Engine SN 1019289.

$30.99

$

Usually ships in 3-6 days

0

6

Honda 28442-Z1D-G41

SPRING, STARTER RETURN (FRAME NO.)

Note: Use from Engine SN 1019290.

$21.99

$

Usually ships in 3-6 days

0

6

Honda 28442-Z1D-H81

SPRING, STARTER RETURN

Note: Use up to Engine SN 1019289.

$

$

Not available

7

Honda 28443-Z1D-G41

SPRING, RATCHET (FRAME NO.)

Note: Use from Engine SN 1019290.

$18.99

$

Usually ships in 3-6 days

0

7

Honda 28443-Z1D-H81

SPRING, RATCHET

Note: Use up to Engine SN 1019289.

$43.99

$

Usually ships in 3-6 days

0

8

Honda 28444-Z1D-G41

RETAINER, SPRING (FRAME NO.)

Note: Use from Engine SN 1019290.

$63.99

$

Usually ships in 3-6 days

0

8

Honda 28444-Z1D-H81

RETAINER, SPRING

Note: Use up to Engine SN 1019289.

$65.99

$

Usually ships in 3-6 days

0

9

Honda 28461-Z1D-G41

GRIP, STARTER (FRAME NO.)

Note: Use from Engine SN 1019290.

$21.99

$

Usually ships in 3-6 days

0

9

Honda 28461-Z1D-H81

GRIP, STARTER

Note: Use up to Engine SN 1019289.

$

$

Not available

10

Honda 28462-Z1C-M01

ROPE, RECOIL STARTER

Note: Use up to Engine SN 1019289.

$9.49

$

Usually ships in 3-6 days

0

10

Honda 28462-Z1D-G41

ROPE, RECOIL STARTER (FRAME NO.)

Note: Use from Engine SN 1019290.

$20.99

$

Usually ships in 3-6 days

0

11

Honda 28464-Z1D-G41

GROMMET (FRAME NO.)

Note: Use from Engine SN 1019290.

$19.99

$

Usually ships in 3-6 days

0

11

Honda 28464-Z1D-M01

GROMMET

Note: Use up to Engine SN 1019289.

$7.49

$

Usually ships in 3-6 days

0

12

Honda 90004-Z1D-G41

SCREW, CENTER (FRAME NO.)

Note: Use from Engine SN 1019290.

$18.99

$

Usually ships in 3-6 days

0

12

Honda 90004-Z1D-H81

SCREW, CENTER

Note: Use up to Engine SN 1019289.

$63.99

$

Usually ships in 3-6 days

0

13

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 20+

0
