HT 18330 (82839) - Snapper 33" Yard Tractor, 18hp 33" Cutting Deck, Belts Parts Diagram

33" Yard Tractor, 18hp

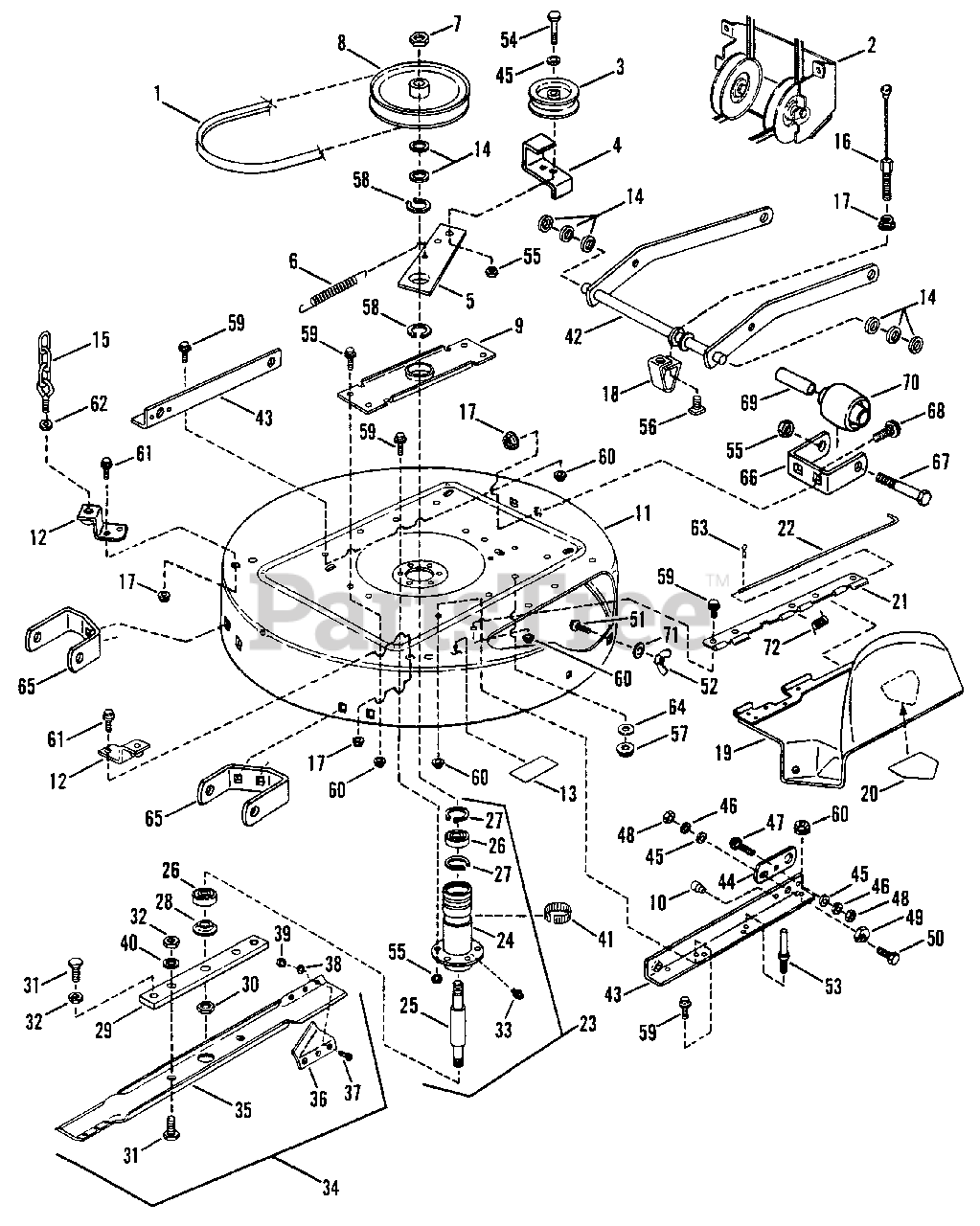

33" Cutting Deck, Belts Parts Diagram

  • Title

1

Snapper 7014799

BELT, 33" Mower Drive
(Superseded to 7014799YP)

Note: (A101)

$49.99

$

In Stock, only 2 left!

0

2

Snapper 7057362

ASSEMBLY, Mule Drive

Note: (See "Mule Drive Assembly" ill. and parts list for breakdown)

$

$

Currently unavailable

3

Snapper 7018574

PULLEY, Idler (Flat) (4.12O.D.)
(Superseded to 7018574SM)

$38.99

$

In Stock, only 4 left!

0

4

Snapper 7032341

GUIDE, Belt

$

$

Not available

5

Snapper 7047841

ARM, Idler
(Superseded to 7047841YP)

$88.99

$

In Stock, only 1 left!

0

6

Snapper 7014405

SPRING, Belt Tension

$

$

Not available

7

Snapper 7074467

NUT, 3/4-16 Hex Jam
(Superseded to 7074467SM)

Note: Was 10027

$4.49

$

In Stock, Qty 11

0

8

Snapper 7018581

PULLEY, 8" O.D.
(Superseded to 7018581YP)

$67.99

$

Usually ships in 2-12 days

0

9

Snapper 7038018

BRACE, Spindle
(Superseded to 7038018AYP)

$23.99

$

Usually ships in 2-12 days

0

10

Snapper 7014756

BUMPER BUTTON
(Superseded to 7014756YP)

$16.99

$

Usually ships in 2-12 days

0

11

Snapper 7061972

DECK, 33" Cutter
(Superseded to 7061972YP)

Note: Was 35068 or 51917 or 60978 (Now 61972 + 52555)

$

$

Not available

12

Snapper 7051533

ASY, Bracket Rear Lift

$

$

Currently unavailable

13

Snapper 7014416

DECAL, Caution, (Deflector/Adapter)
(Superseded to 7014416YP)

$6.49

$

In Stock, only 1 left!

0

14

Snapper 7010935

WASHER, Shim
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7051749

ASSEMBLY, 3/8 Bolt-Chain
(Superseded to 7053739YP)

Note: Was 51525

$14.99

$

Usually ships in 2-12 days

0

16

Snapper 7015629

CABLE, Front Lift
(Superseded to 7015629YP)

$8.99

$

Usually ships in 2-12 days

0

17

Snapper 7091601

NUT, 5/16 18 Hex Fl. Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

18

Snapper 7038043

BRACKET, Front Lift Hanger
(Superseded to 7038043YP)

$31.99

$

Usually ships in 2-12 days

0

19

Snapper 7052555

ASSEMBLY, Deflector
(Superseded to 7600147YP)

Note: Was 51978 (Series 4; Repl. 51456; Incl. item 20)

$122.99

$

Usually ships in 2-12 days

0

20

Snapper 7013010

DECAL, Danger (Cut Finger)
(Superseded to 7013010SM)

Note: (Replaces 13871)

$9.49

$

In Stock, Qty 20+

0

21

Snapper 7039586

HINGE, Side Chute
(Superseded to 7039586YP)

$60.99

$

Usually ships in 2-12 days

0

22

Snapper 7032323

PIN, Hinge
(Superseded to 7032323YP)

Note: Was 31914 (Replaces 32323)

$41.99

$

Usually ships in 2-12 days

0

23

Snapper 7059619

ASSEMBLY, Spindle

Note: (Includes Items 24-33)

$

$

Not available

24

Snapper 7051529

HOUSING, Spindle (5.125" Tall)

Note: (Includes Item 33)

$

$

Not available

25

Snapper 7027631

SPINDLE, 33" Mower Deck (7.75" Long)
(Superseded to 7027631YP)

$56.99

$

Usually ships in 2-12 days

0

26

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

27

Snapper 7012491

RING, Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 20+

0

29

Snapper 7037751

HOLDER, Blade
(Superseded to 7037751BMYP)

$45.99

$

In Stock, Qty 5

0

30

Snapper 7090356

NUT, 5/8-18 Hex Ctr. Lock
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 7

0

31

Snapper 7090392

SCREW, 1/2-20 x 1" Hex Head Cap, Grade 5
(Superseded to 703880)

$4.49

$

In Stock, Qty 13

0

32

Snapper 7090559

NUT, 1/2-20 Hex Jam
(Superseded to 703903)

$3.49

$

In Stock, only 2 left!

0

33

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, only 2 left!

0

34

Snapper 7019523

ASSEMBLY, Blade & Air Lift
(Superseded to 7019523BZYP)

Note: Was 57482 (Includes 35 thru 39)

$36.99

$

In Stock, only 2 left!

0

35

Snapper 7019523

BLADE, 33" Mower Deck
(Superseded to 7019523BZYP)

$36.99

$

In Stock, only 2 left!

0

36

Snapper 7037723

AIR-LIFT
(Superseded to 7037723BMYP)

Note: (Included in Air Lift Kit)

$8.49

$

Usually ships in 2-12 days

0

37

Snapper 7090228

SCREW, 5/16-24 Machine
(Superseded to 7090228SM)

Note: (Included in Air Lift Kit)

$5.49

$

In Stock, only 4 left!

0

38

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

Note: (Included in Air Lift Kit)

$4.49

$

In Stock, Qty 20+

0

39

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223 (Included in Air Lift Kit)

$3.99

$

In Stock, Qty 20+

0

40

Snapper 7090509

WASHER, 1/2" Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, only 2 left!

0

41

Snapper 7012670

RING, Tolerance
(Superseded to 7012670YP)

$8.49

$

In Stock, Qty 13

0

42

Snapper 7047870

WELDMENT, Front Lift Arm
(Superseded to 7047870YP)

$125.99

$

Usually ships in 2-12 days

0

43

Snapper 7038194

RAIL - 33"
(Superseded to 7038194YP)

$41.99

$

Usually ships in 2-12 days

0

44

Snapper 7032432

LINK - ADJUSTMENT

$

$

Not available

45

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

46

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 9

0

47

Snapper 7091547

3/8-16 BOLT, x 3/4" Carriage
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

48

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

In Stock, Qty 5

0

49

Snapper 7015012

RING, Adjustment
(Superseded to 7015012YP)

$3.99

$

Usually ships in 2-12 days

0

50

Snapper 7091304

SCREW, 3/8-16 x 1" HHC
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 5

0

51

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

Note: Was 90001 (Replaces 90017)

$3.49

$

In Stock, Qty 20+

0

52

Snapper 7091537

WING-NUT, 5/16-18
(Superseded to 7091537YP)

Note: Was 90492

$4.49

$

In Stock, Qty 12

0

53

Snapper 7012125

STUD, Deck Stop
(Superseded to 703837)

Note: Was 14583

$8.49

$

In Stock, only 1 left!

0

54

Snapper 7090164

SCREW, 3/8-24 x 1-1/2" Hex Head Cap, Grade 2

$

$

Not available

55

Snapper 7090289

NUT, 3/8-24 Hex Center Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 12

0

56

Snapper 7090388

T-NUT, 5/16-18
(Superseded to 7090388YP)

$3.49

$

In Stock, only 3 left!

0

57

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, Qty 8

0

58

Snapper 7010740

RING, 2" External Retaining
(Superseded to 7010740YP)

$5.49

$

In Stock, Qty 7

0

59

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 20+

0

60

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

61

Snapper 7090721

BOLT, 5/16-18 x 1/2" Hex Flange Lock, Grade 5
(Superseded to 7090721YP)

$3.49

$

In Stock, only 4 left!

0

62

Snapper 7090665

NUT, 3/8-16 Hex Jam
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

63

Snapper 7091503

PIN, Hair Cotter
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

64

Snapper 7090390

WASHER, 3/8 Int. Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, Qty 7

0

65

Snapper 7033571

BRACKET, Gage Wheel (Rear)
(Superseded to 7033571BMYP)

Note: Was 38450 (Series 4)

$14.99

$

In Stock, Qty 8

0

66

Snapper 7033571

BRACKET, Front Gage Wheel
(Superseded to 7033571BMYP)

Note: Was 38451 (Series 4)

$14.99

$

In Stock, Qty 8

0

67

Snapper 7091532

SCREW, 3/8-24 x 3-3/4" Hex Head Cap Gr. 5
(Superseded to 703876)

Note: Was 90859 (Series 4)

$6.99

$

In Stock, Qty 20+

0

68

Snapper 7090731

BOLT, 5/16-18 x 1/2" Square Neck Carriage, Grade 5
(Superseded to 703798)

Note: Was 90004 (Series 4)

$4.49

$

In Stock, Qty 20+

0

69

Snapper 7015272

SPACER
(Superseded to 7015272YP)

Note: (Series 4)

$7.49

$

In Stock, Qty 7

0

70

Snapper 7019190

WHEEL, Gage
(Superseded to 7019190YP)

Note: (Series 4)

$11.99

$

In Stock, Qty 20+

0

71

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

Note: (Series 4)

$4.49

$

In Stock, Qty 20+

0

72

Snapper 7012303

SPRING, Hinge
(Superseded to 7012303YP)

Note: (Series 4)

$45.99

$

Usually ships in 2-12 days

0

Snapper 7061864

33" Replacement Deck - Complete Unit

Note: Was 60828 (For Complete Cutter Unit)

$

$

Currently unavailable

Snapper 7060480

AIR LIFT KIT
(Superseded to 7060480SM)

Note: (Includes 2 ea. No. 37723, 6 ea. No. 9O228, 6 ea. No. 90391, 6 ea. No. 90223.)

$

$

Not available
