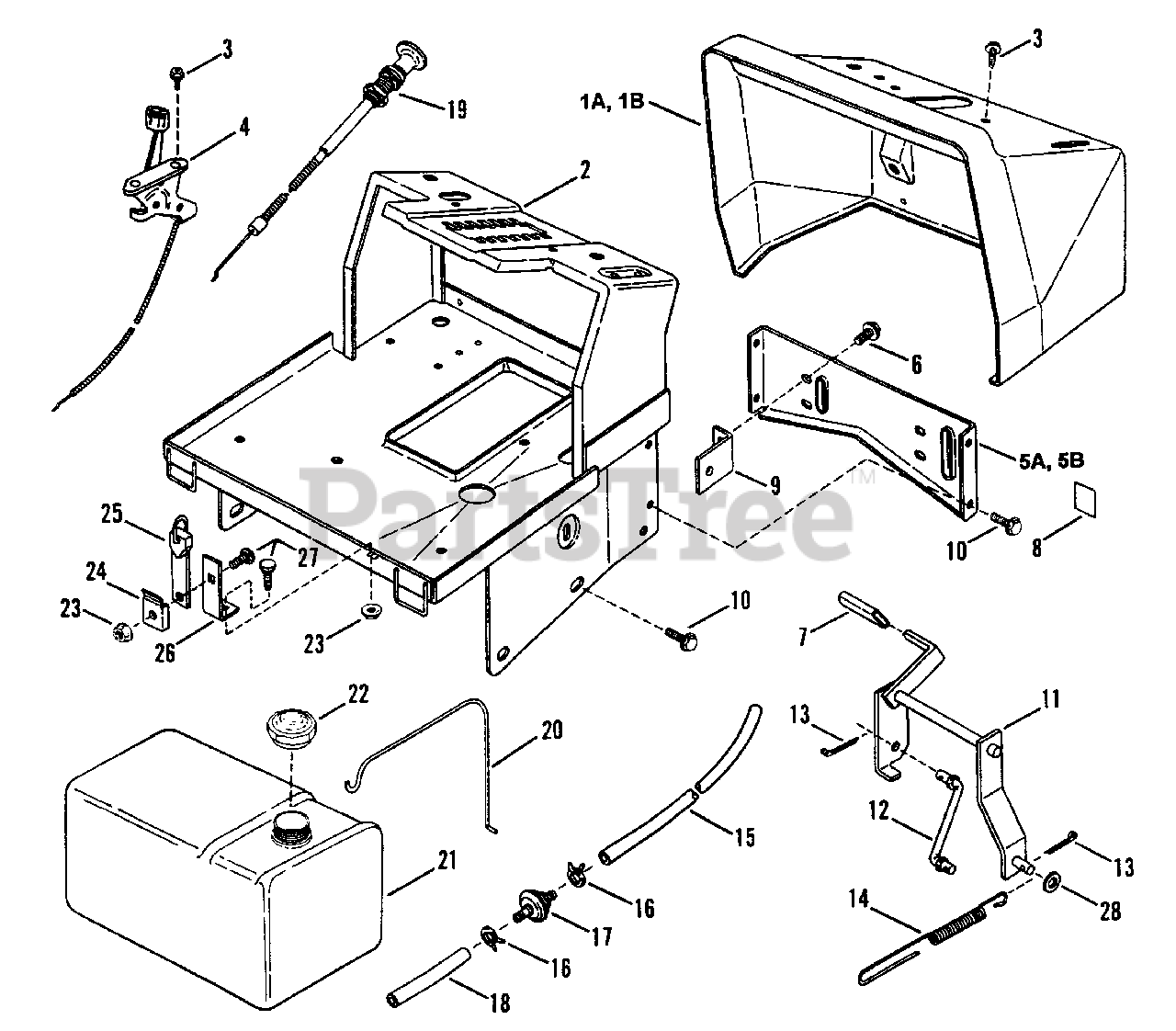

HT 18410 (82819) - Snapper 41" Yard Tractor, 18hp Fuel Tank, Pedestal, Dash Panel Parts Diagram

41" Yard Tractor, 18hp

Fuel Tank, Pedestal, Dash Panel Parts Diagram

  • Title

1A

Snapper 7016093

PANEL, Dash
(Superseded to 7016043YP)

Note: (Series 4)

$86.99

$

Usually ships in 2-12 days

0

1B

Snapper 7016043

PANEL, Dash
(Superseded to 7016043YP)

Note: (Series 3)

$86.99

$

Usually ships in 2-12 days

0

2

Snapper 7049943

PEDESTAL

$

$

Currently unavailable

3

Snapper 7090896

SCREW, #10-24 x 1/2" Self-Tapping
(Superseded to 7090896YP)

Note: Was 90853

$3.49

$

In Stock, only 3 left!

0

4

Snapper 7028690

CONTROL, Throttle
(Superseded to 7028690YP)

Note: Was 18996

$38.99

$

Usually ships in 2-12 days

0

5A

Snapper 7038658

BRACKET, Lower Dash

Note: (Series 4)

$

$

Not available

5B

Snapper 38543

BRACKET, Lower Dash

Note: (Series 3)

$

$

Currently unavailable

6

Snapper 7090741

SCREW, 1/4-20 x 5/8" Self-Tap
(Superseded to 703054)

$4.49

$

In Stock, Qty 12

0

7

Snapper 7014755

SLEEVE, Parking Brake
(Superseded to 7014755YP)

$

$

Not available

8

Snapper 7023896

DECAL, Cruise

Note: (Series 4)

$

$

Currently unavailable

9

Snapper 7032856

BRACKET

Note: (Series 4)

$

$

Currently unavailable

10

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

11

Snapper 7047981

LEVER, Engagement

Note: (Series 4)

$

$

Currently unavailable

12

Snapper 7019290

LATCH ROD
(Superseded to 7019290YP)

Note: (Series 4)

$

$

Not available

13

Snapper 7091597

COTTER-PIN, 3/32 x 3/4"
(Superseded to 703312)

Note: Was 90037

$4.49

$

In Stock, Qty 8

0

14

Snapper 7019292

SPRING

Note: (Series 4)

$

$

Not available

15

Snapper 7012638

LINE, Fuel (12-1/2" Long)
(Superseded to 791766)

Note: Was 12912

$8.49

$

In Stock, Qty 18

0

16

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 12

0

17

Snapper 7014359

FILTER, Fuel (In-Line)
(Superseded to 394358S)

Note: (Series 4)

$5.99

$

In Stock, Qty 20+

0

18

Snapper 7032542

LINE, Fuel
(Superseded to 7032542YP)

Note: (3" Long)

$7.49

$

Usually ships in 2-12 days

0

19

Snapper 7018674

CONTROL, Choke Cable
(Superseded to 7018674YP)

$32.99

$

Usually ships in 2-12 days

0

20

Snapper 7023346

HOLD-DOWN, Fuel Tank
(Superseded to 7023346YP)

$12.99

$

Usually ships in 2-12 days

0

21

Snapper 7057551

TANK, Fuel
(Superseded to 7057551YP)

Note: (Includes item 22)

$150.99

$

Usually ships in 2-12 days

0

22

Snapper 7012515

CAP, Fuel Tank Filler
(Superseded to 7012515YP)

Note: Was 14363

$20.99

$

In Stock, only 2 left!

0

23

Snapper 7091545

NUT, 1/4-20 Hex Flange Top Lock
(Superseded to 703916)

Note: Was 90477 (Replaces 90583)

$4.99

$

In Stock, only 2 left!

0

24

Snapper 7032444

CLIP, Hood Retainer
(Superseded to 7032444YP)

$49.99

$

Usually ships in 2-12 days

0

25

Snapper 7018254

STRAP, Tank Hold-Down
(Superseded to 7018254YP)

$21.99

$

Usually ships in 2-12 days

0

26

Snapper 7032749

BRACKET, Tank Hold-Down
(Superseded to 7032749YP)

$52.99

$

Usually ships in 2-12 days

0

27

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7090122

WASHER, 3/8 SAE Flat
(Superseded to 703878)

Note: (Series 4)

$3.99

$

In Stock, Qty 20+

0
