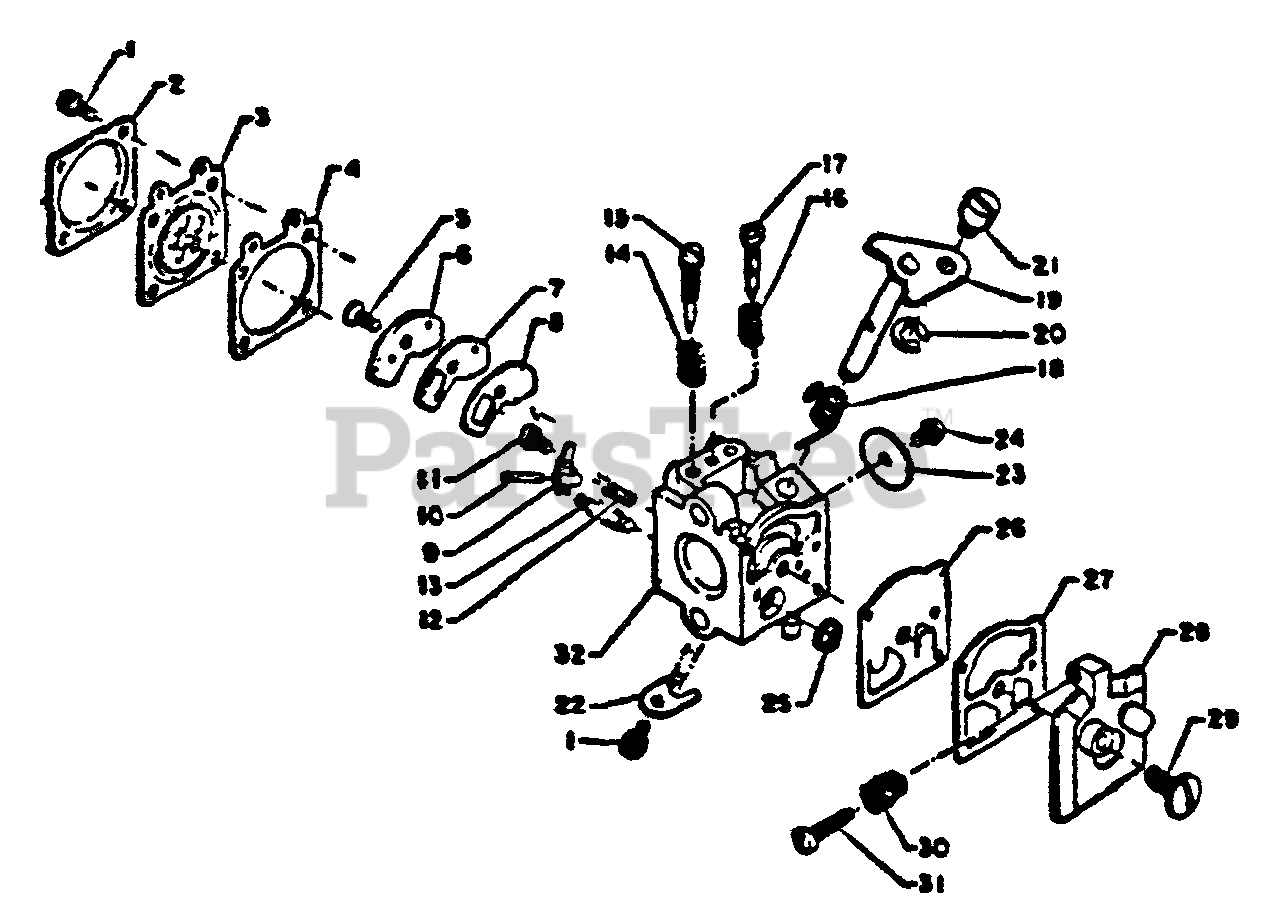

HT-200 - Echo Hedge Trimmer Carburetor Parts Diagram

Hedge Trimmer

Carburetor Parts Diagram

  • Title

Echo 12300004320

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

1

------------------

SCREW

Note: Included in P/N 12530242030 Kwik Kit.

$

$

Not available

2

Echo 12314203930

COVER, METERING

$4.99

$

In Stock, only 2 left!

0

3

------------------

DIAPHRAGM, METERING

Note: Included in P/N 12530242030 Kwik Kit, and in P/N 12530342030 Diaphragm Kit.

$

$

Not available

4

------------------

GASKET, METERING

Note: Included in P/N 12530242030 Kwik Kit, and in P/N 12530342030 Diaphragm Kit.

$

$

Not available

5

Echo 12316705230

SCREW, CIRCUIT PLATE

$0.99

$

Usually ships in 2-4 days

0

6

Echo 12316603930

PLATE, CIRCUIT
(Superseded to Discontinued)

$

$

Not available

7

------------------

DIAPHRAGM, CIRCUIT PLATE

Note: Included in P/N 12530242030 Kwik Kit, and in P/N 12530342030 Diaphragm Kit.

$

$

Not available

8

------------------

GASKET, CIRCUIT PLATE

Note: Included in P/N 12530242030 Kwik Kit, and in P/N 12530342030 Diaphragm Kit.

$

$

Not available

9

------------------

LEVER, METERING

Note: Included in P/N 12530242030 Kwik Kit.

$

$

Not available

10

------------------

PIN, METERING LEVER

Note: Included in P/N 12530242030 Kwik Kit.

$

$

Not available

11

------------------

SCREW, METERING LEVER PIN

Note: Included in P/N 12530242030 Kwik Kit.

$

$

Not available

12

------------------

SPRING, METERING LEVER

Note: Included in P/N 12530242030 Kwik Kit.

$

$

Not available

13

------------------

VALVE, INLET

Note: Included in P/N 12530242030 Kwik Kit.

$

$

Not available

14

------------------

Spring. H. S. needle

Note: Included in P/N 12530242030 Kwik Kit.

$

$

Not available

15

Echo 12312010530

NEEDLE - HIGH SPEED

$4.99

$

Usually ships in 2-4 days

0

16

------------------

SPRING, IDLE ADJUST

$

$

Not available

17

Echo 12311810530

NEEDLE - LOW SPEED

$4.99

$

Usually ships in 2-4 days

0

18

Echo 12311303930

SPRING, THROTTLE RETURN
(Superseded to 12311309660)

$1.49

$

In Stock, Qty 11

0

19

Echo 12311704320

SHAFT, THROTTLE
(Superseded to Discontinued)

$

$

Not available

20

Echo 12312710630

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

21

Echo 12317204320

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

22

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

23

Echo 12311605230

VALVE, THROTTLE

$2.49

$

In Stock, only 4 left!

0

24

Echo 12311403930

SCREW

$1.49

$

In Stock, Qty 8

0

25

------------------

STRAINER

Note: Included in P/N 12530242030, Kwik Kit.

$

$

Not available

26

------------------

DIAPHRAGM, PURGE

Note: Included in P/N 12530242030, and in P/N 12530342030 Diaphragm Kit.

$

$

Not available

27

------------------

GASKET, PURGE

Note: Included in P/N 12530242030, and in P/N 12530342030 Diaphragm Kit.

$

$

Not available

28

Echo 12312403930

COVER, PUMP
(Superseded to Discontinued)

$

$

Not available

29

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

30

Echo 12313303930

SPRING, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

31

Echo 12313403930

SCREW, IDLE ADJUST
(Superseded to Discontinued)

$

$

Not available

32

------------------

BODY, CARBURETOR

Note: NOT AVAILABLE SEPARATELY

$

$

Not available

Echo 12530242030

REPAIR KIT
(Superseded to 12530042030)

$20.99

$

In Stock, Qty 5

0

Echo 12530342030

DIAPHRAGM/GASKET KIT

$16.99

$

In Stock, only 2 left!

0
