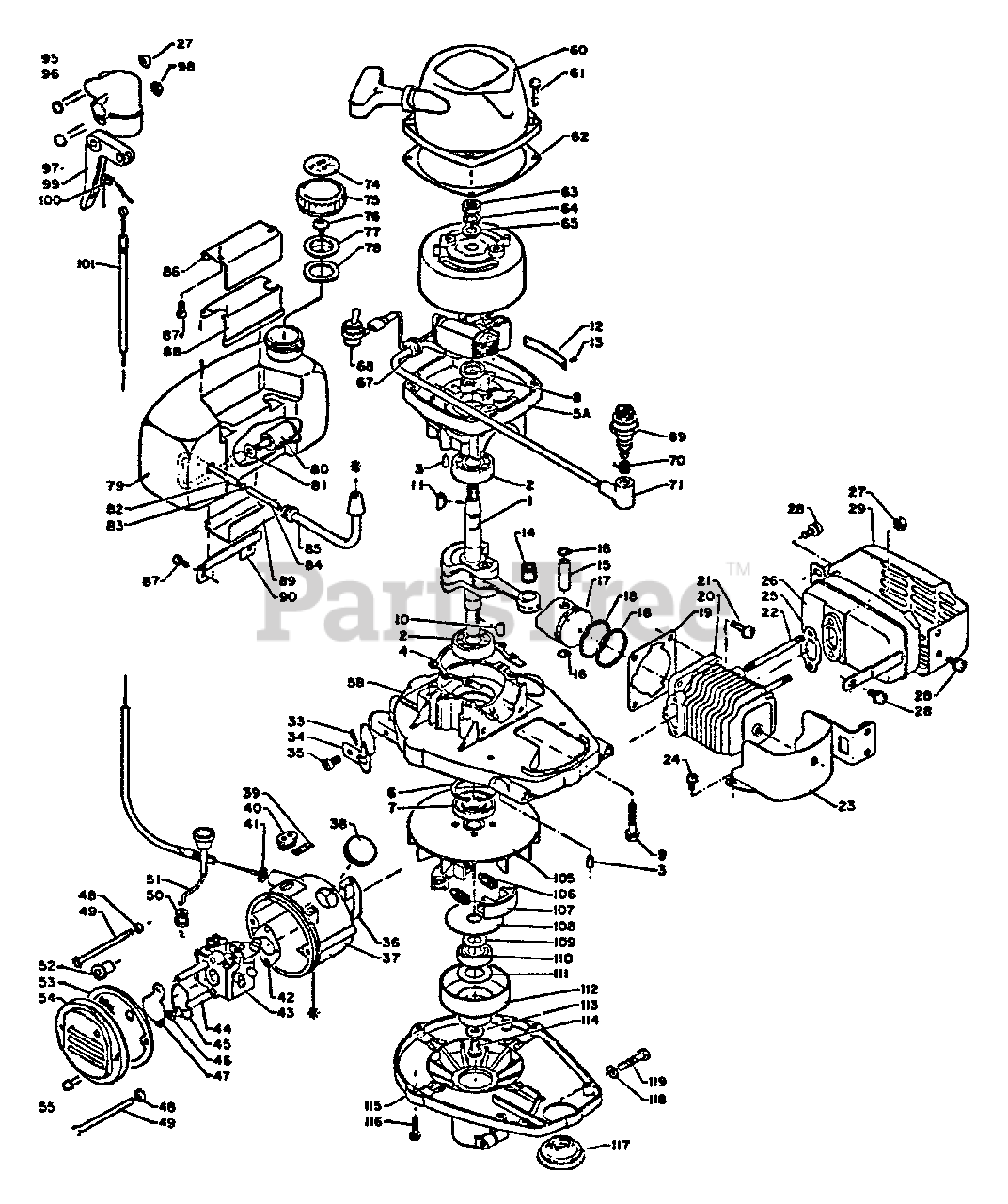

HT-200 - Echo Hedge Trimmer Engine,Crnkcse,Ign,Strtr,Intake,Exhaust,AirCleaner,Throttle,FuelSys Parts Diagram

Hedge Trimmer

Engine,Crnkcse,Ign,Strtr,Intake,Exhaust,AirCleaner,Throttle,FuelSys Parts Diagram

  • Title

1

Echo 10010005330

CRANKSHAFT ASSY
(Superseded to 10010005331)

$

$

Not available

2

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

3

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 5

0

4

------------------

GASKET, CRANKCASE

Note: Use Gasket kit P/N 889000-06830.

$

$

Not available

5

Echo 10020004520

CRANKCASE KIT
(Superseded to 10020004420)

$

$

Not available

6

Echo 90070200032

RING, RETAINING - 32

$2.49

$

In Stock, only 1 left!

0

7

Echo 10021203930

SEAL, OIL

$6.49

$

In Stock, Qty 14

0

8

Echo 10021204630

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, Qty 8

0

9

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

10

Echo 61032502730

KEY

$1.99

$

In Stock, only 2 left!

0

11

Echo 10014200310

KEY

$1.99

$

Usually ships in 2-4 days

0

12

Echo 89011004520

PLATE, MODEL
(Superseded to Discontinued)

$

$

Not available

13

Echo 89001100130

RIVET
(Superseded to Discontinued)

$

$

Not available

14

Echo 17501203930

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

15

Echo 10001304630

PIN, PISTON
(Superseded to 10001310210)

$7.99

$

Usually ships in 2-4 days

0

16

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

17

Echo 10001005330

PISTON
(Superseded to 10000005330)

$

$

Not available

18

Echo 10001105330

RING, PISTON

$10.99

$

In Stock, Qty 15

0

19

------------------

GASKET, CYLINDER

Note: Use Gasket kit P/N 889000-06830.

$

$

Not available

20

Echo 10101105330

CYLINDER
(Superseded to Discontinued)

$

$

Not available

21

Echo 90024005016

SCREW - 5X16

$0.99

$

Usually ships in 2-4 days

0

22

Echo 10101405330

STUD
(Superseded to 10101422330)

$1.99

$

Usually ships in 2-4 days

0

23

Echo 10151404520

SHIELD, CYLINDER
(Superseded to 10151404521)

$

$

Not available

24

Echo 90024004008

SCREW - 4X8
(Superseded to Discontinued)

$

$

Not available

25

Echo 14551004630

GASKET, EXHAUST

$2.99

$

Usually ships in 2-4 days

0

26

Echo 14561004520

MUFFLER
(Superseded to Discontinued)

$

$

Not available

27

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

28

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

29

Echo 14562104520

COVER, MUFFLER
(Superseded to 14562104521)

$

$

Not available

33

Echo 89015711130

LABEL - STOP

$0.99

$

In Stock, Qty 6

0

34

Echo 16381004520

BRACKET, SWITCH
(Superseded to Discontinued)

$

$

Not available

35

Echo 90022005010

SCREW - 5X10

$0.99

$

In Stock, Qty 7

0

36

Echo 13001005330

GASKET, INTAKE
(Superseded to Discontinued)

$

$

Not available

37

Echo 13030604320

CASE, CARBURETOR
(Superseded to Discontinued)

$

$

Not available

38

Echo 13033804320

PLUG
(Superseded to Discontinued)

$

$

Not available

39

Echo 89004104320

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

40

Echo 12901005230

GROMMET

$1.99

$

Usually ships in 2-4 days

0

41

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 20+

0

42

Echo 13001604630

GASKET, INTAKE
(Superseded to 13001604631)

$0.99

$

In Stock, Qty 8

0

43

Echo 12300004320

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

44

Echo 13001903930

SPACER
(Superseded to Discontinued)

$

$

Not available

45

Echo 17851504630

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

46

Echo 17851603930

WASHER
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 20+

0

47

Echo 12901104630

PLATE, PREVENT

$3.49

$

Usually ships in 2-4 days

0

48

Echo 13002903930

SPACER

$0.99

$

Usually ships in 2-4 days

0

49

Echo 13002103930

BOLT

$1.99

$

In Stock, only 4 left!

0

50

Echo 17881004320

GROMMET
(Superseded to Discontinued)

$

$

Not available

51

Echo 17851005230

ROD, CHOKE
(Superseded to Discontinued)

$

$

Not available

52

Echo 12901504320

GROMMET
(Superseded to Discontinued)

$

$

Not available

53

Echo 13031004320

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

54

Echo 13031304520

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

55

Echo 90024004012

SCREW - 4X12

$0.99

$

Usually ships in 2-4 days

0

60

Echo 17720004520

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

61

Echo 90024004020

SCREW - 4X20

$0.99

$

Usually ships in 2-4 days

0

62

Echo 10061504630

GASKET, STARTER
(Superseded to 10061504631)

$1.49

$

Usually ships in 2-4 days

0

63

Echo 90050200008

NUT - 8

$0.99

$

In Stock, Qty 7

0

64

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

65

Echo 10014304630

WASHER

$0.99

$

Usually ships in 2-4 days

0

67

Echo 15111204630

GROMMET

$0.99

$

In Stock, Qty 8

0

68

Echo 16340004520

IGNITION SWITCH ASSY
(Superseded to 16340004521)

$11.99

$

In Stock, only 2 left!

0

69

Echo 15901000330

SPARK PLUG -- BM-6A

$

$

Not available

70

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

71

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, only 2 left!

0

74

Echo 89015403930

LABEL - FUEL MIX
(Superseded to Discontinued)

$

$

Not available

Echo 13100404930

CAP ASSY
(Superseded to 13160010530)

$

$

Not available

75

Echo 13101704930

CAP
(Superseded to Discontinued)

$

$

Not available

76

Echo 13131400330

VENT

$13.99

$

In Stock, only 2 left!

0

77

Echo 13101504930

HOLDER, VENT
(Superseded to 13101504931)

$

$

Not available

78

Echo 13101604930

GASKET, CAP
(Superseded to 13101604931)

$

$

Not available

79

Echo 13101004520

TANK, FUEL
(Superseded to 13160105920)

$

$

Not available

80

Echo 13120505230

FILTER, FUEL
(Superseded to 13120002830)

$9.99

$

In Stock, Qty 20+

0

81

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

82

Echo 13201004520

PIPE - FUEL
(Superseded to 13201004521)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

83

Echo 43722111130

CLIP

$0.99

$

Usually ships in 2-4 days

0

84

Echo 13202304520

CONNECTOR, PIPE
(Superseded to Discontinued)

$

$

Not available

85

Echo 13201204520

PIPE - FUEL
(Superseded to 13201204521)

Note: ITEM IS NO LONGER AVAILABLE

$

$

Not available

86

Echo 13191804630

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

87

Echo 90024104008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

88

Echo 13192405330

CUSHION, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

89

Echo 13192005330

CUSHION, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

90

Echo 13191005330

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

95

Echo 17802406130

BRACKET, TRIGGER

$6.49

$

Usually ships in 2-4 days

0

96

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 13

0

97

Echo 90022005025

SCREW - 5X25

$0.99

$

In Stock, Qty 19

0

98

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

99

Echo 17801005330

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

100

Echo 17804305230

SPRING, TRIGGER

$0.99

$

In Stock, only 3 left!

0

101

Echo 17800104520

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

105

Echo 10150004630

FAN
(Superseded to Discontinued)

$

$

Not available

106

Echo 17501805130

SPRING, CLUTCH

$1.99

$

Usually ships in 2-4 days

0

107

Echo 17500905130

SHOE, CLUTCH
(Superseded to 17500905131)

$25.99

$

Usually ships in 2-4 days

0

108

Echo 17501904630

PLATE, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

109

Echo 17501504630

WASHER, CLUTCH
(Superseded to Discontinued)

$

$

Not available

110

Echo 90060606000

BEARING, BALL - 8000

$

$

Currently unavailable

111

Echo 17504404630

WASHER, CLUTCH

$1.99

$

Usually ships in 2-4 days

0

112

Echo 17501004632

DRUM, CLUTCH
(Superseded to 17501004633)

$36.99

$

Usually ships in 2-4 days

0

113

Echo 17501404630

WASHER - 6

$2.49

$

In Stock, Qty 20+

0

114

Echo 90010506010

SCREW - 6X10

$1.49

$

In Stock, only 3 left!

0

115

Echo 10151104521

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

116

Echo 90024004018

SCREW - 4X18
(Superseded to 90024204018)

$0.99

$

In Stock, Qty 7

0

117

Echo 15901504630

SEAL, DUST

$1.99

$

Usually ships in 2-4 days

0

118

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

119

Echo 90010005025

BOLT - 5X25

$3.49

$

Usually ships in 2-4 days

0
