HT 21 - Jonsered Hedge Trimmer (1996-03) CARBURETOR DETAILS Parts Diagram

Hedge Trimmer

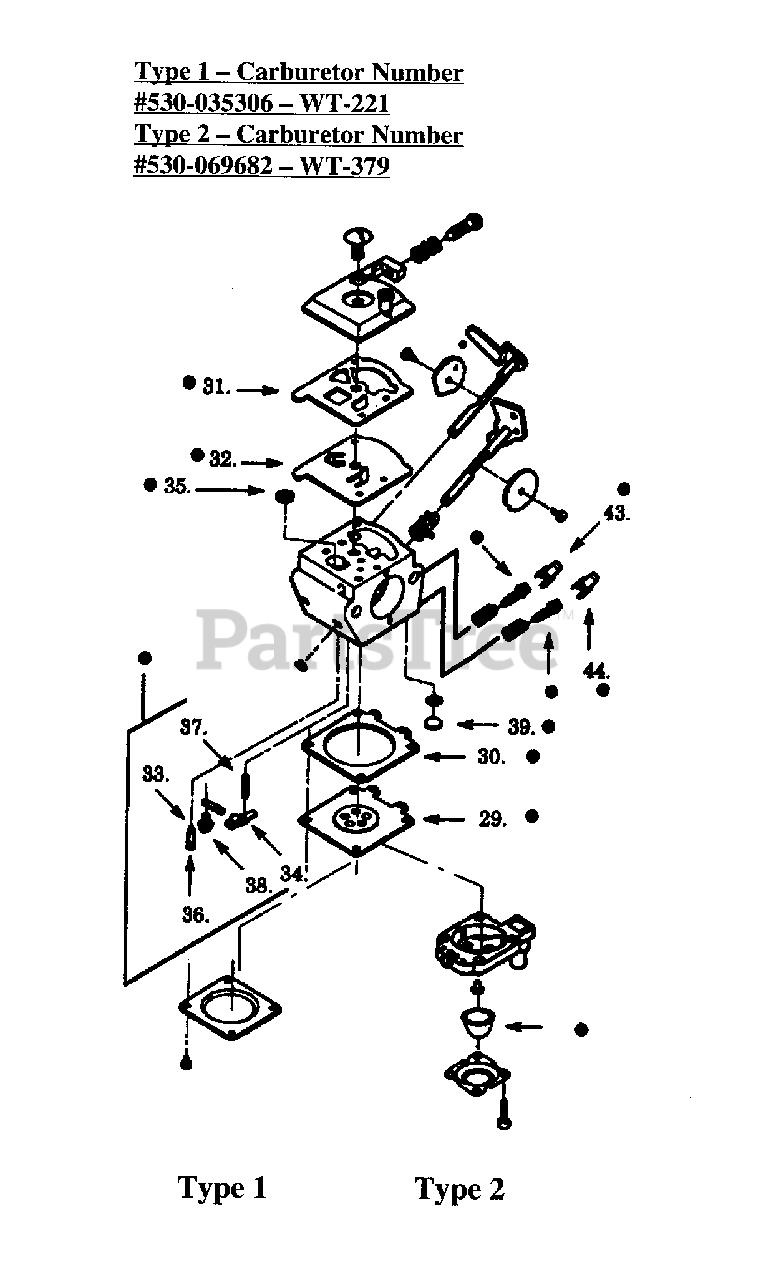

CARBURETOR DETAILS Parts Diagram

  • Title

1

Jonsered 530029954

SWITCH

$4.99

$

Usually ships in 3-10 days

0

2

Jonsered 530036443

LEAD
(Superseded to 545172901)

$13.84

$

Usually ships in 3-10 days

0

3

Jonsered 530015775

SCREW 8-16 X 9/16 (PLAS

$6.49

$

In Stock, only 2 left!

0

4

Jonsered 530029958

No Description Available

$3.99

$

Usually ships in 3-10 days

0

5

Jonsered 530015940

SCREW

$6.49

$

In Stock, Qty 9

0

6

Jonsered 530015770

SCREW-10-16 X 1-3/8 PLA

$

$

Not available

7

Jonsered 530038305

HANDLE

$4.99

$

Usually ships in 3-10 days

0

8

Jonsered 530029956

TRIGGER
(Superseded to 530053884)

$3.99

$

In Stock, only 3 left!

0

9

Jonsered 530036122

THROTTLE LOCK

$

$

Not available

10

Jonsered 530036123

SPRING

$3.99

$

In Stock, only 4 left!

0

11

Jonsered 530015934

SCREW

$4.99

$

In Stock, only 1 left!

0

12

Jonsered 530047494

REPL BY 530 04 78-79
(Superseded to 530047879)

$

$

Not available

13

Jonsered 530094992

No Description Available

$

$

Not available

14

Jonsered 530029946

ANTIVIBE MOUNT

$3.99

$

In Stock, only 4 left!

0

15

Jonsered 530048113

CLUTCH DRUM
(Superseded to 530056069)

$36.99

$

Usually ships in 3-10 days

0

16

Jonsered 530015843

SCREW

$6.49

$

In Stock, only 2 left!

0

17

Jonsered 530029916

PLATE-GEARBOX COVER

$6.49

$

In Stock, only 2 left!

0

18

Jonsered 530032121

BLADE BUSHING

$

$

Not available

19

Jonsered 530036371

BLADE ASSY
(Superseded to 530403228)

$

$

Not available

20

Jonsered 530029948

SEAL

$3.99

$

Usually ships in 3-10 days

0

21

Jonsered 530036228

GEAR

$

$

Not available

22

Jonsered 530016013

BEARING

$6.49

$

Usually ships in 3-10 days

0

23

Jonsered 530069355

GEAR

$

$

Not available

24

Jonsered 530036046

ISOLATOR PLATE

$7.49

$

Usually ships in 3-10 days

0

25

Jonsered 530036965

COVER
(Superseded to 577858601)

$7.49

$

In Stock, Qty 7

0

26

Jonsered 530015955

SCREW

$3.99

$

Usually ships in 3-10 days

0

27

Jonsered 530015886

SCREW-10-14 X 13/16 (PL

$6.49

$

In Stock, Qty 16

0

28

Jonsered 530014399

GEARBOX ASSY
(Superseded to 530071931)

$

$

Not available

29

Jonsered 504130808

METERING DIAPHRAGM
(Superseded to 503896701)

$8.99

$

In Stock, only 2 left!

0

30

Jonsered 530035320

GASKET

$4.99

$

Usually ships in 3-10 days

0

31

Jonsered 504130906

GASKET

$4.99

$

In Stock, Qty 5

0

32

Jonsered 504130807

PUMP DIAPHRAGM

$6.49

$

In Stock, Qty 9

0

33

Jonsered 505520125

FULCRUM PIN

$3.49

$

In Stock, only 3 left!

0

34

Jonsered 505520127

LEVER

$5.99

$

Usually ships in 3-10 days

0

35

Jonsered 530035178

SCREEN-DUTCH TWILL INLE

$3.99

$

Usually ships in 3-10 days

0

36

Jonsered 503117001

VALVE/INLET.

$11.99

$

In Stock, Qty 11

0

37

Jonsered 530035139

No Description Available
(Superseded to 530035188)

$4.99

$

In Stock, Qty 11

0

38

Jonsered 505316717

SCREW

$3.49

$

In Stock, Qty 5

0

39

Jonsered 530035162

WELCH PLUG

$

$

Not available

40

Jonsered 530035213

REPL BY 530 06 98-44
(Superseded to 530069844)

$18.99

$

Usually ships in 3-10 days

0

5300353-12

Jonsered 530035312

CARBURETOR KIT

$30.99

$

Usually ships in 3-10 days

0

5300696-56

Jonsered 530069656

REPAIR KIT

$18.99

$

Usually ships in 3-10 days

0

43

Jonsered 530038317

LIMITER CAP (LOW-BLUE)

$3.99

$

Usually ships in 3-10 days

0

44

Jonsered 530038318

No Description Available

$3.99

$

In Stock, Qty 20+

0
