HT 2121 - Jonsered Hedge Trimmer (2004-01) ENGINE Parts Diagram

Hedge Trimmer

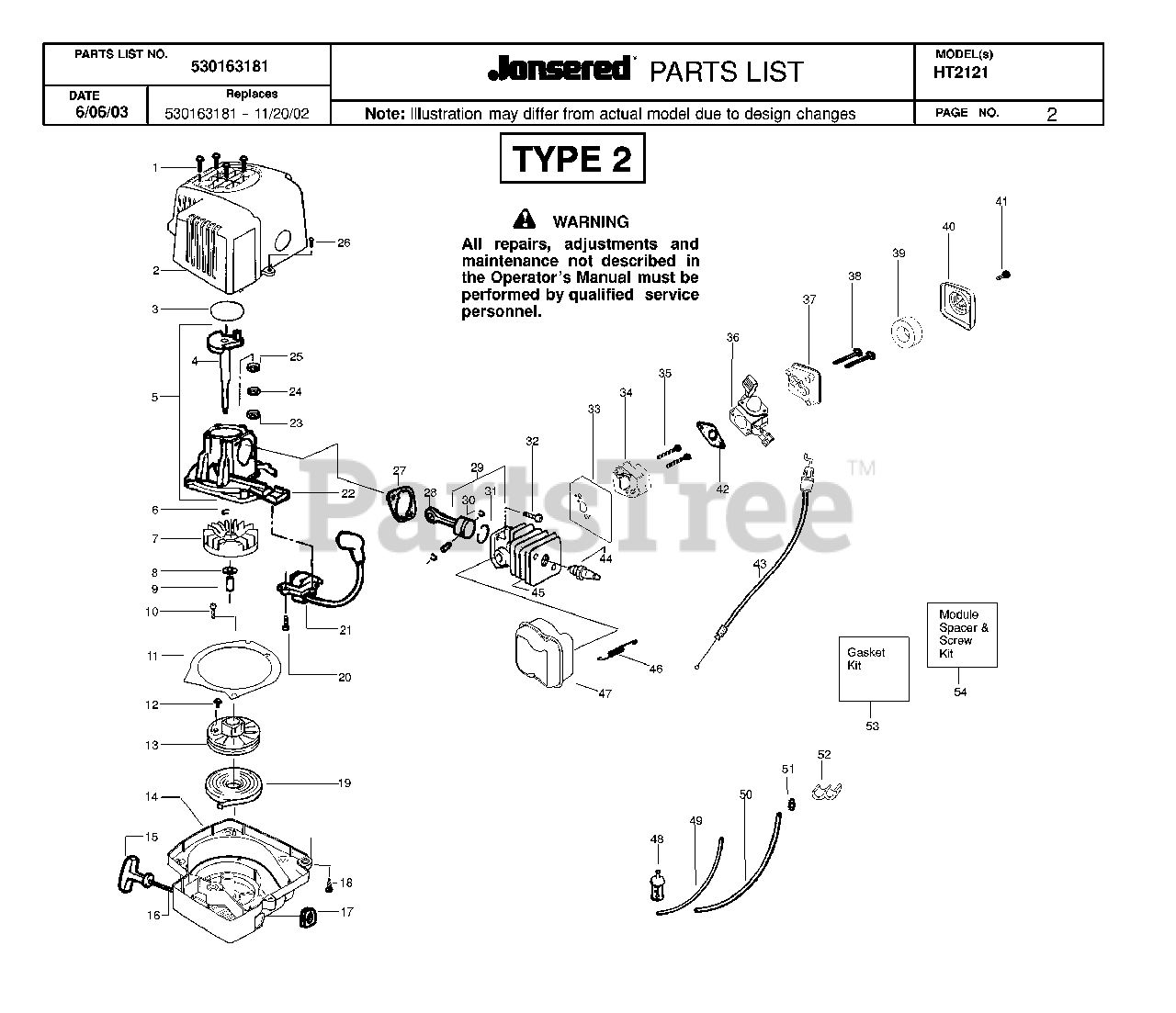

ENGINE Parts Diagram

  • Title

1

Jonsered 530016386

SCREW

$10.99

$

In Stock, Qty 9

0

2

Jonsered 530056620

ASSY-SHROUD

$36.99

$

Usually ships in 3-10 days

0

3

Jonsered 530071486

GASKET KIT

$9.99

$

Usually ships in 3-10 days

0

4

Jonsered 530028802

CRANKSHAFT
(Superseded to 545145801)

$24.99

$

Usually ships in 3-10 days

0

5

Jonsered 530071729

No Description Available

$

$

Not available

6

Jonsered 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

7

Jonsered 530069886

FLYWHEEL
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

8

Jonsered 530015828

WASHER FLAT

$4.99

$

In Stock, only 1 left!

0

9

Jonsered 530055729

SPACER

$9.22

$

Usually ships in 3-10 days

0

10

Jonsered 530015496

SCREW-10-16 X 1/2 HI-LO

$3.99

$

Usually ships in 3-10 days

0

11

Jonsered 530055681

PLATE-BAFFLE

$

$

Not available

12

Jonsered 530015882

SCREW

$

$

Not available

13

Jonsered 530069353

STARTER PULLEY

$

$

Not available

14

Jonsered 530056271

FAN HOUSING
(Superseded to 530056267)

$

$

Not available

15

Jonsered 530027569

HANDLE-STARTER

$6.49

$

In Stock, only 2 left!

0

16

Jonsered 530069232

KIT-ROPE

$7.49

$

In Stock, Qty 20+

0

17

Jonsered 530019182

GROMMET

$3.99

$

Usually ships in 3-10 days

0

18

Jonsered 530016386

SCREW

$10.99

$

In Stock, Qty 9

0

19

Jonsered 530042085

STARTER SPRING
(Superseded to 545008010)

$7.49

$

In Stock, Qty 20+

0

20

Jonsered 530016357

SCREW

$6.49

$

In Stock, Qty 5

0

21

Jonsered 530054137

IGNITION MODULE

$

$

Not available

22

Jonsered 530071627

No Description Available

$26.99

$

Usually ships in 3-10 days

0

23

Jonsered 530055728

OUTER BEARING

$9.99

$

Usually ships in 3-10 days

0

24

Jonsered 530071615

KIT-CRANKCASE SEAL

$7.49

$

Usually ships in 3-10 days

0

25

Jonsered 530032125

BEARING
(Superseded to 738210101)

$12.99

$

Usually ships in 3-10 days

0

26

Jonsered 530015934

SCREW

$4.99

$

In Stock, only 1 left!

0

27

Jonsered 530071486

GASKET KIT

$9.99

$

Usually ships in 3-10 days

0

28

Jonsered 530069945

No Description Available
(Superseded to 530049817)

$9.99

$

Usually ships in 3-10 days

0

29

Jonsered 530071357

PISTON
(Superseded to 530071833)

$37.99

$

In Stock, only 1 left!

0

30

Jonsered 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 2 left!

0

31

Jonsered 530055120

PISTON RING
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

32

Jonsered 530015953

SCREW

$6.49

$

In Stock, Qty 8

0

33

Jonsered 530071486

GASKET KIT

$9.99

$

Usually ships in 3-10 days

0

34

Jonsered 530056403

ADAPTER-CARBURETOR
(Superseded to 545030402)

$12.99

$

Usually ships in 3-10 days

0

35

Jonsered 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

36

Jonsered 530071633

CARBURETOR ASSY (C1U-W13A)

$53.99

$

In Stock, only 2 left!

0

37

Jonsered 530055680

AIR BOX

$4.99

$

In Stock, only 2 left!

0

38

Jonsered 530016353

SCREW

$4.99

$

Usually ships in 3-10 days

0

39

Jonsered 530047932

No Description Available

$4.99

$

In Stock, Qty 11

0

40

Jonsered 530055679

AIR FILTER COVER

$

$

Not available

41

Jonsered 530015957

SCREW

$4.99

$

In Stock, Qty 7

0

42

Jonsered 530071486

GASKET KIT

$9.99

$

Usually ships in 3-10 days

0

43

Jonsered 530055547

ASSY-THROTTLE CABLE

$8.99

$

Usually ships in 3-10 days

0

44

Jonsered 952030249

PLUG-SPARK (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

45

Jonsered 530071359

KIT-CYLINDER
(Superseded to 582144301)

$60.99

$

Usually ships in 3-10 days

0

46

Jonsered 530042088

No Description Available

$3.99

$

In Stock, only 1 left!

0

47

Jonsered 530071574

KIT-SPARK MUFFLER

$9.99

$

Usually ships in 3-10 days

0

48

Jonsered 530095992

ASSY-PICK-UP

$

$

Not available

49

Jonsered 530069247

KIT-LINE

$6.49

$

In Stock, Qty 20+

0

50

Jonsered 530069216

LINE KIT

$6.49

$

In Stock, Qty 20+

0

51

Jonsered 530023877

FUEL LINE FITTING

$4.99

$

In Stock, Qty 14

0

52

Jonsered 530016103

RETAINER

$6.49

$

In Stock, Qty 5

0

53

Jonsered 530071486

GASKET KIT

$9.99

$

Usually ships in 3-10 days

0

54

Jonsered 530071731

No Description Available

$7.49

$

In Stock, only 1 left!

0

530163362

Jonsered 530163362

No Description Available

Note: NEW PART NUMBER FOR THIS IPL

$

$

Not available
