HT 2200 - RedMax Hedge Trimmer (SN: 00900101 - 00901300) (1999-02) 020 - CUTTER GROUP Parts Diagram

Hedge Trimmer

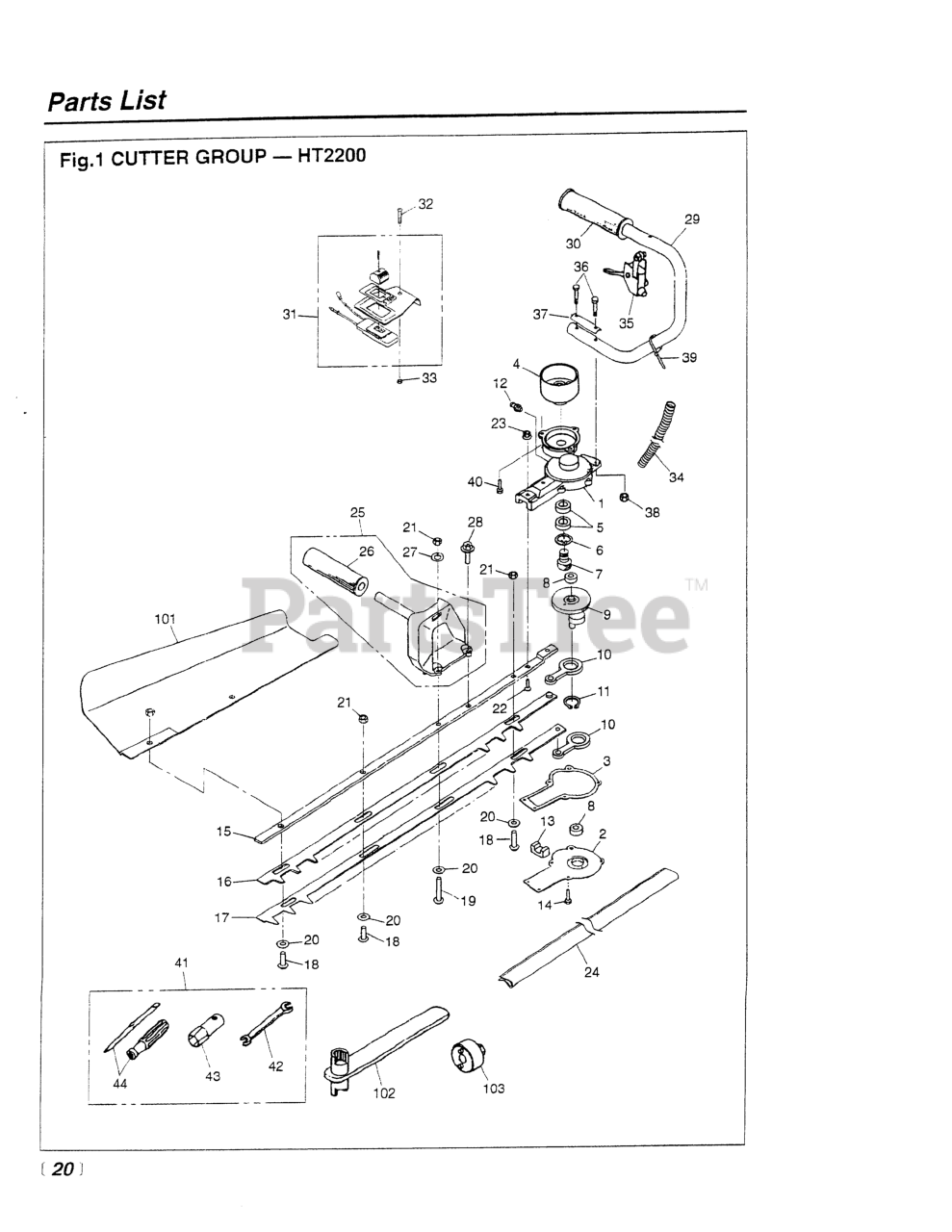

020 - CUTTER GROUP Parts Diagram

  • Title

1

RedMax T400131110

GEARCASE
(Superseded to 521827101)

$

$

Not available

2

RedMax T400131210

COVER
(Superseded to 521827201)

$

$

Not available

3

RedMax T400131220

GASKET
(Superseded to 521827301)

$

$

Not available

4

RedMax 388411410

DRUM, CLUTCH
(Superseded to 521296801)

$125.99

$

Usually ships in 3-10 days

0

5

RedMax 0600406001

BEARING
(Superseded to 506610101)

$13.99

$

In Stock, only 2 left!

0

6

RedMax T400131320

RING, SNAP
(Superseded to 521827401)

$

$

Not available

7

RedMax T400131330

PINION
(Superseded to 521827501)

$79.99

$

Usually ships in 3-10 days

0

8

RedMax T400131340

06002-00608
(Superseded to 516130201)

$17.99

$

In Stock, only 1 left!

0

9

RedMax T400131350

GEAR COMPL
(Superseded to 521827701)

$398.99

$

Usually ships in 3-10 days

0

10

RedMax T400131510

ROD
(Superseded to 521828001)

$31.99

$

Usually ships in 3-10 days

0

11

RedMax 0406402512

RING, SNAP, M25 X 1.2
(Superseded to 516124701)

$

$

Not available

12

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$5.99

$

In Stock, only 2 left!

0

13

RedMax T400131360

FELT
(Superseded to 521827801)

$5.99

$

In Stock, only 2 left!

0

14

RedMax T400131370

BOLT
(Superseded to 521827901)

$3.49

$

In Stock, Qty 20+

0

15

RedMax T400132110

PLATE, GUIDE
(Superseded to 521828101)

$

$

Not available

16

RedMax T400132210

BLADE, UPPER
(Superseded to 521828201)

$

$

Not available

17

RedMax T400132220

BLADE, LOWER
(Superseded to 521828301)

$

$

Not available

18

RedMax 388411750

3884-11750-10
(Superseded to 521297501)

$4.99

$

In Stock, Qty 10

0

19

RedMax 609511810

6095-11810-10
(Superseded to 521415401)

$

$

Not available

20

RedMax 388011780

WASHER (RPLS 3873-11760)
(Superseded to 515232001)

$3.49

$

In Stock, Qty 12

0

21

RedMax 388011790

NUT, M6
(Superseded to 515232101)

$3.49

$

In Stock, Qty 10

0

22

RedMax T400132310

SCREW
(Superseded to 521828401)

$3.49

$

In Stock, only 4 left!

0

23

RedMax T400132320

NUT
(Superseded to 521828501)

$3.49

$

In Stock, Qty 9

0

24

RedMax T400132910

COVER, BLADE
(Superseded to 521828601)

$

$

Not available

25

RedMax 684412100

HANDLE COMPL
(Superseded to 521509701)

$

$

Not available

26

RedMax 388013121

GRIP (RPLS -13120)

$12.18

$

Usually ships in 3-10 days

0

27

RedMax 388312130

WASHER

$0.67

$

Usually ships in 3-10 days

0

28

RedMax 388312140

BOLT
(Superseded to 521296701)

$

$

Not available

29

RedMax T400134100

HANDLE COMP.
(Superseded to 521828701)

$

$

Not available

30

RedMax 388013121

GRIP (RPLS -13120)

$12.18

$

Usually ships in 3-10 days

0

31

RedMax 400174100

SWITCH

$

$

Not available

32

RedMax 0026300525

SCREW

$

$

Not available

33

RedMax 0028010504

NUT (M5X0.8)

$

$

Not available

34

RedMax T400174310

TUBE
(Superseded to 521829001)

$

$

Not available

35

RedMax 388113210

LEVER ASSEMBLY
(Superseded to 515235101)

$

$

Not available

36

RedMax 0021250525

BOLT

$

$

Not available

37

RedMax 609513310

PLATE

$6.10

$

Usually ships in 3-10 days

0

38

RedMax 387614470

NUT (RPLS 3873-14470)
(Superseded to 521290101)

$

$

Not available

39

RedMax 388013350

BAND, CABLE

$0.77

$

Usually ships in 3-10 days

0

40

RedMax 0022510614

BOLT

$

$

Not available

41

RedMax 111191003

TOOL SET

$12.58

$

Usually ships in 3-10 days

0

42

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$5.99

$

In Stock, Qty 10

0

43

RedMax 111091320

SOCKET, HEX, 3/4

$3.44

$

Usually ships in 3-10 days

0

44

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

101

RedMax 388591110

RECEIVE PLATE

$

$

Not available

102

RedMax 388095020

WRENCH

$98.66

$

Usually ships in 3-10 days

0

103

RedMax 388095010

WRENCH (TOOL)

$97.99

$

Usually ships in 3-10 days

0
