HT 2200 - RedMax Hedge Trimmer (SN: 50100000 & Above) CUTTING EQUIPMENT Parts Diagram

Hedge Trimmer

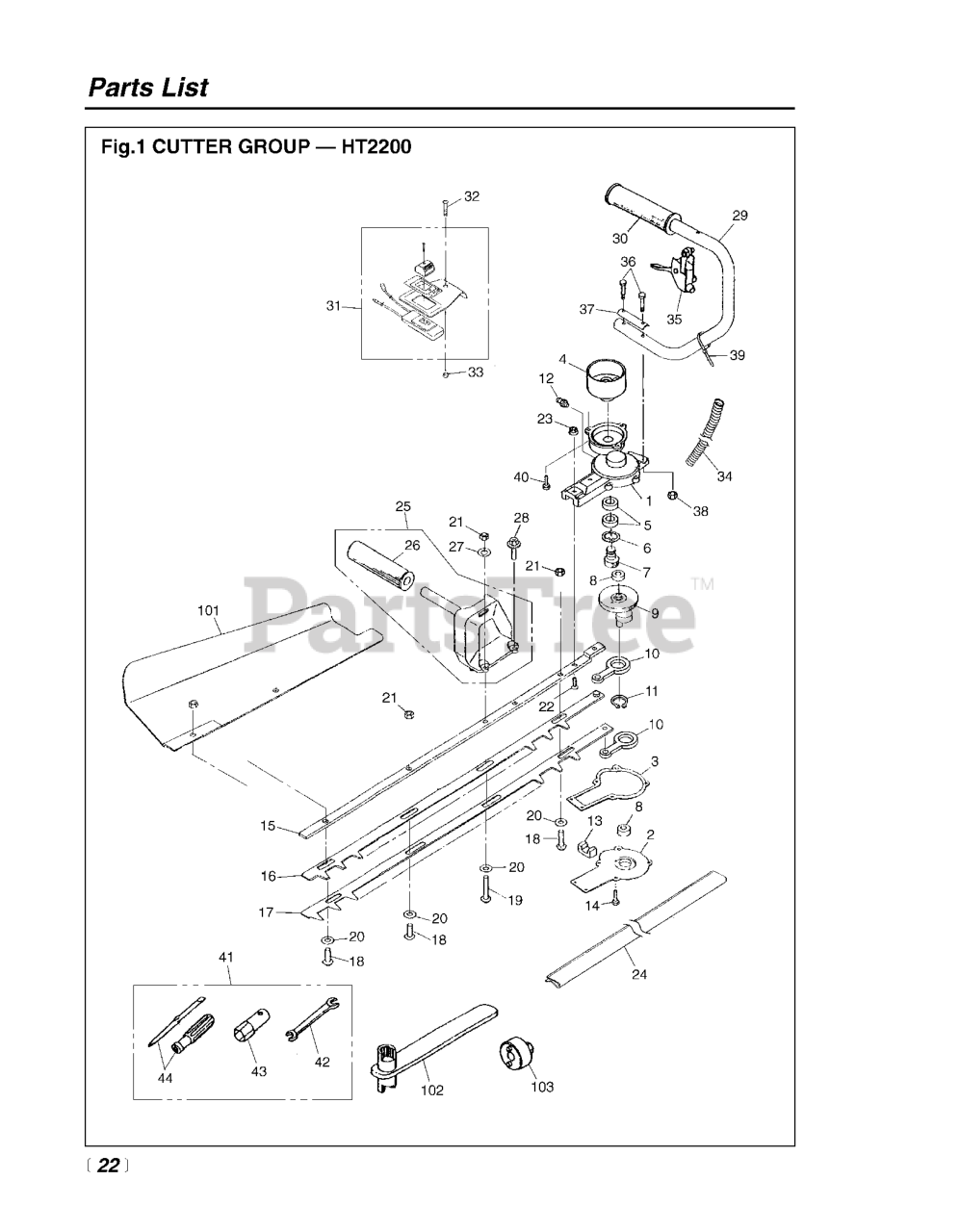

CUTTING EQUIPMENT Parts Diagram

  • Title

1

RedMax 521827101

GEARCASE

$

$

Not available

2

RedMax 521827201

COVER

$

$

Not available

3

RedMax 521827301

GASKET

$

$

Not available

4

RedMax 515236101

DRUM

$131.99

$

Usually ships in 3-10 days

0

5

RedMax 506610101

BEARING

$8.49

$

In Stock, only 2 left!

0

6

RedMax 521827401

RING, SNAP

$

$

Not available

7

RedMax 521827501

PINION

$79.99

$

Usually ships in 3-10 days

0

8

RedMax 521827601

BEARING
(Superseded to 516130201)

$17.99

$

Usually ships in 3-10 days

0

9

RedMax 521827701

GEAR COMPL

$418.99

$

Usually ships in 3-10 days

0

10

RedMax 521828001

ROD

$31.99

$

Usually ships in 3-10 days

0

11

RedMax 516124701

RING, SNAP, M25 x 1.2

$

$

Not available

12

RedMax 505171501

FITTING

$5.99

$

In Stock, only 1 left!

0

13

RedMax 521827801

FELT

$5.99

$

In Stock, only 2 left!

0

14

RedMax 521827901

BOLT (RPLS 020510512)

$3.99

$

In Stock, Qty 20+

0

15

RedMax 521828101

OBSOLETE - PLATE, GUIDE

$

$

Not available

16

RedMax 521828201

BLADE, UPPER

$

$

Not available

17

RedMax 521828301

BLADE, LOWER

$

$

Not available

18

RedMax 515236601

SCREW
(Superseded to 521297501)

$4.99

$

In Stock, only 3 left!

0

19

RedMax 515526901

$

$

Not available

20

RedMax 515232001

WASHER

$3.99

$

In Stock, Qty 10

0

21

RedMax 515232101

NUT

$3.99

$

In Stock, Qty 5

0

22

RedMax 521828401

SCREW

$3.99

$

In Stock, only 4 left!

0

23

RedMax 521828501

NUT

$3.99

$

In Stock, Qty 9

0

24

RedMax 521828601

COVER, BLADE

$

$

Not available

25

RedMax 515712801

HANDLE (R)

Note: . 26

$

$

Not available

26

RedMax 515232701

$

$

Not available

27

RedMax 515235801

WASHER

$8.49

$

Usually ships in 3-10 days

0

28

RedMax 515235901

BOLT

$

$

Not available

29

RedMax 521828701

HANDLE COMP.

$

$

Not available

30

RedMax 515232701

$

$

Not available

31

RedMax 521828901

SWITCH

$

$

Not available

32

RedMax 510474001

SCREW

$

$

Not available

33

RedMax 505172301

NUT

$3.49

$

In Stock, Qty 6

0

34

RedMax 521829001

OBSOLETE - TUBE

$

$

Not available

35

RedMax 515235101

LEVER ASSY

$

$

Not available

36

RedMax 510445301

BOLT

$

$

Not available

37

RedMax 515528201

PLATE

$

$

Not available

38

RedMax 515228501

NUT

$

$

Not available

39

RedMax 515233401

BAND

$

$

Not available

40

RedMax 510454301

BOLT

$

$

Not available

41

RedMax 513181901

TOOL SET

Note: . 42 43 44

$

$

Not available

42

RedMax 506615001

SPANNER

$5.99

$

Usually ships in 3-10 days

0

43

RedMax 513181801

SOCKET

$

$

Not available

44

RedMax 506689501

DRIVER

$5.99

$

Usually ships in 3-10 days

0

101

RedMax 515240801

RECEIVE PLATE

$

$

Not available

102

RedMax 515234901

WRENCH(B)

$

$

Not available

103

RedMax 515234801

WRENCH

$

$

Not available
