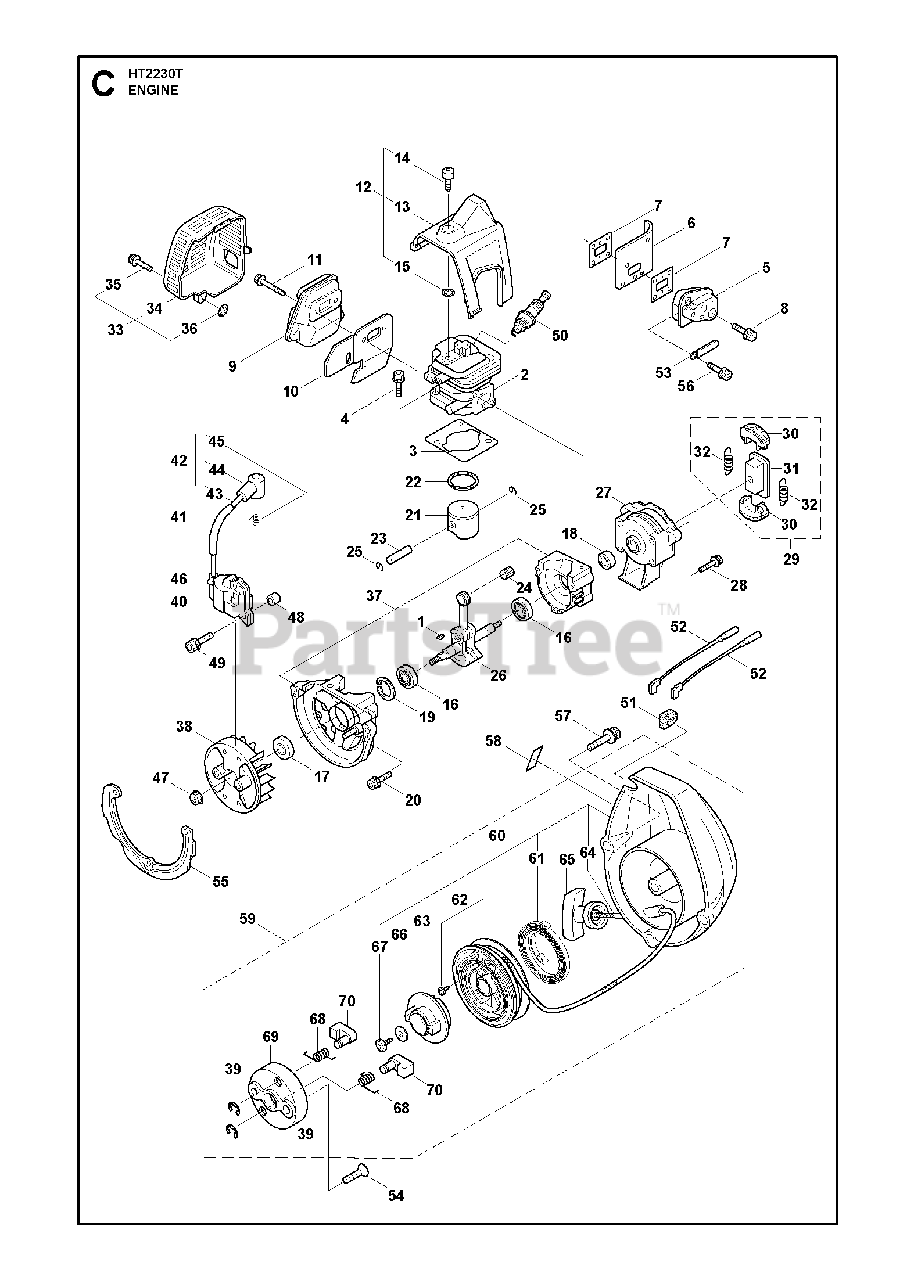

HT 2230 T - Jonsered Hedge Trimmer (2010-03) ENGINE Parts Diagram

Hedge Trimmer

ENGINE Parts Diagram

  • Title

1

Jonsered 523103501

No Description Available

$

$

Not available

2

Jonsered 531004854

CYLINDER/CARB

$

$

Not available

3

Jonsered 531004802

BASE GASKET

$

$

Not available

4

Jonsered 544295501

SCREW

$

$

Not available

5

Jonsered 544295801

INSULATOR

$

$

Not available

6

Jonsered 531004855

GASKET

$

$

Not available

7

Jonsered 531002353

GASKET

$

$

Not available

8

Jonsered 544293901

SCREW

$

$

Not available

9

Jonsered 544303801

MUFFLER

$

$

Not available

10

Jonsered 531004806

HEAT SHIELD/GASKET

$

$

Not available

11

Jonsered 544292401

SCREW

$

$

Not available

12

Jonsered 576207901

No Description Available

$

$

Not available

13

Jonsered 544295302

No Description Available

Note: . 12

$

$

Not available

14

Jonsered 544293701

KNOB

Note: . 12

$7.49

$

Usually ships in 3-10 days

0

15

Jonsered 576207801

No Description Available

Note: . 12

$

$

Not available

16

Jonsered 531004110

BALL BEARING

$21.99

$

Usually ships in 3-10 days

0

17

Jonsered 531004106

SEALING RING

$

$

Not available

18

Jonsered 531004107

SEALING RING

$

$

Not available

19

Jonsered 531004792

CLIP

$

$

Not available

20

Jonsered 544291801

SCREW

$

$

Not available

21

Jonsered 531004816

PISTON

$

$

Not available

22

Jonsered 531004817

RING

$

$

Not available

23

Jonsered 531004088

PISTON PIN

$14.99

$

Usually ships in 3-10 days

0

24

Jonsered 531004818

BEARING

$27.99

$

Usually ships in 3-10 days

0

25

Jonsered 531002383

CLIP

$9.99

$

Usually ships in 3-10 days

0

26

Jonsered 544293101

CRANKSHAFT

$

$

Not available

27

Jonsered 544292801

CLUTCH COVER

$

$

Not available

28

Jonsered 523106001

No Description Available

$

$

Not available

29

Jonsered 544303201

CLUTCH

$71.99

$

Usually ships in 3-10 days

0

30

Jonsered 544303501

CLUTCH

Note: . 29

$

$

Not available

31

Jonsered 544303601

No Description Available

Note: . 29

$

$

Not available

32

Jonsered 544303701

SPRING

Note: . 29

$9.99

$

Usually ships in 3-10 days

0

33

Jonsered 576207901

No Description Available

$

$

Not available

34

Jonsered 544293002

No Description Available

Note: . 33

$

$

Not available

35

Jonsered 523106001

No Description Available

Note: . 33

$

$

Not available

36

Jonsered 576207801

No Description Available

Note: . 33

$

$

Not available

37

Jonsered 544292601

CRANKCASE COMPLETE

$

$

Not available

38

Jonsered 531004825

FLYWHEEL

$131.99

$

Usually ships in 3-10 days

0

39

Jonsered 531002485

RETAINING RING

Note: . 59

$7.49

$

Usually ships in 3-10 days

0

40

Jonsered 531007841

IGNITION MODULE

$102.99

$

Usually ships in 3-10 days

0

41

Jonsered 544296601

INSULATOR

$

$

Not available

42

Jonsered 544295701

No Description Available

$

$

Not available

43

Jonsered 531007842

CABLE

Note: . 42

$

$

Not available

44

Jonsered 531002398

SPARK PLUG CONNECTION

Note: . 42

$

$

Not available

45

Jonsered 523103201

No Description Available

Note: . 42

$

$

Not available

46

Jonsered 523103401

No Description Available

$

$

Not available

47

Jonsered 531004113

NUT

$

$

Not available

48

Jonsered 523122301

No Description Available

$

$

Not available

49

Jonsered 523103701

No Description Available

$

$

Not available

50

Jonsered 523103801

No Description Available

$

$

Not available

51

Jonsered 531004829

GROMMET

$6.99

$

Usually ships in 3-10 days

0

52

Jonsered 523104001

No Description Available

$

$

Not available

53

Jonsered 523104101

No Description Available

$

$

Not available

54

Jonsered 544292501

SCREW

$

$

Not available

55

Jonsered 544304502

No Description Available

$

$

Not available

56

Jonsered 544294001

SCREW

$

$

Not available

57

Jonsered 504095001

SCREW

$

$

Not available

58

Jonsered 576208001

No Description Available

$

$

Not available

59

Jonsered 576208101

No Description Available

$

$

Not available

60

Jonsered 544304602

No Description Available

Note: . 59

$263.99

$

Usually ships in 3-10 days

0

61

Jonsered 544303901

RETURN SPRING

Note: . 59 60

$

$

Not available

62

Jonsered 544304001

STARTER PULLEY/SPRING ASSY

Note: . 59 60

$

$

Not available

63

Jonsered 544304101

STARTER PULLY

Note: . 59 60

$

$

Not available

64

Jonsered 544304201

STARTER ROPE

Note: . 59 60

$27.99

$

Usually ships in 3-10 days

0

65

Jonsered 544304702

No Description Available

Note: . 59 60

$

$

Not available

66

Jonsered 544296701

WASHER

Note: . 59 60

$

$

Not available

67

Jonsered 544297401

SCREW

Note: . 59 60

$

$

Not available

68

Jonsered 544303401

RETURN SPRING

Note: . 59

$

$

Not available

69

Jonsered 544303301

HOUSING

Note: . 59

$

$

Not available

70

Jonsered 544297801

PAWL

Note: . 59

$

$

Not available
