HT 230 - Shindaiwa Hedge Trimmer, Single-Sided Clutch Shoe Parts Diagram

Hedge Trimmer, Single-Sided

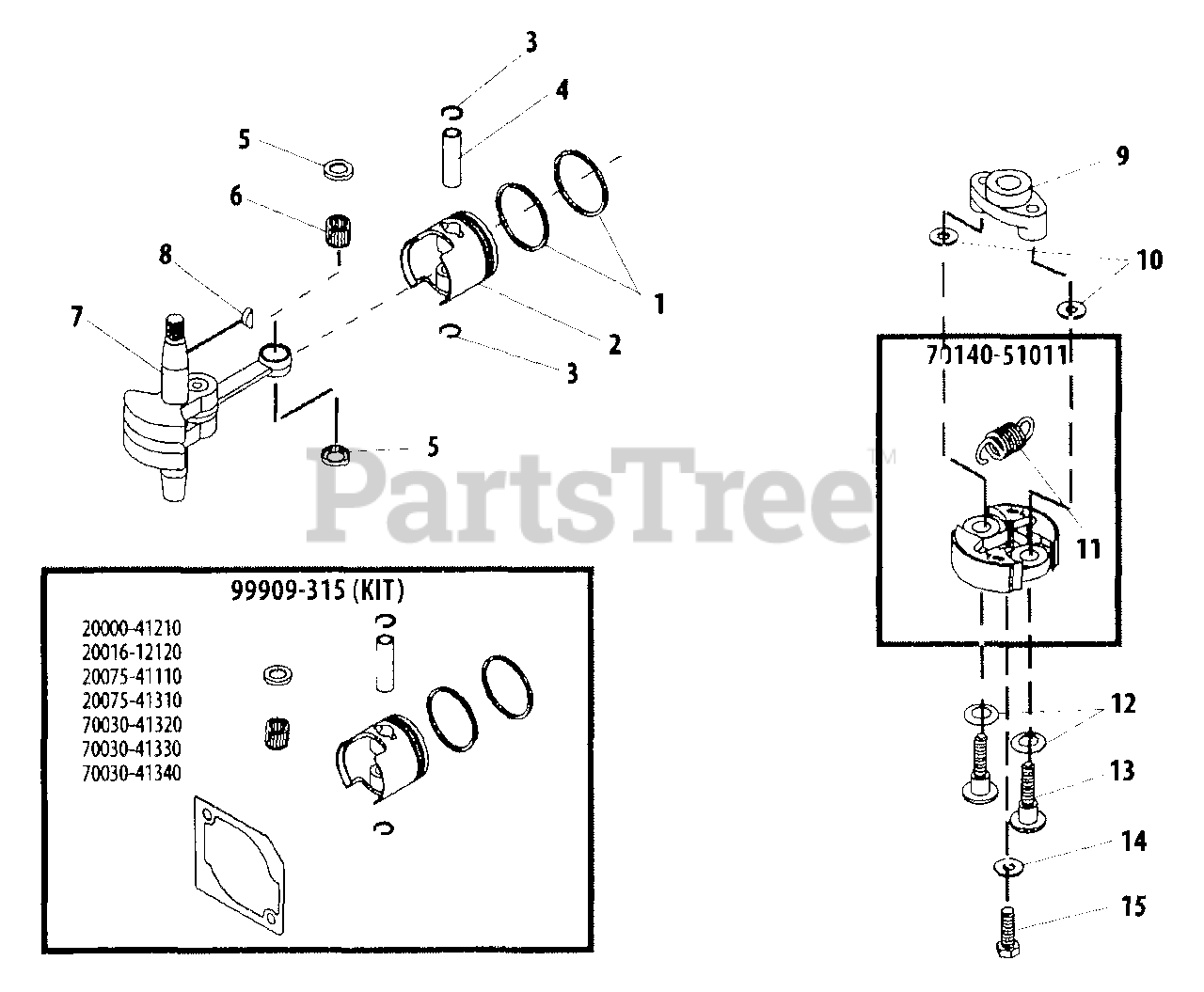

Clutch Shoe Parts Diagram

  • Title

1

Echo 20000-41210

RING, PISTON
(Superseded to A101000400)

$6.49

$

In Stock, only 4 left!

0

2

Echo 20075-41110

PISTON
(Superseded to 70234-98310)

$39.99

$

Usually ships in 2-4 days

0

3

Echo 70030-41320

RING, RETAINING
(Superseded to V580000070)

$1.49

$

In Stock, Qty 20+

0

4

Echo 20075-41310

PIN, PISTON
(Superseded to V606000060)

$3.99

$

In Stock, only 1 left!

0

5

Echo 70030-41340

WASHER, THRUST
(Superseded to 37013-41240)

$2.99

$

Usually ships in 2-4 days

0

6

Echo 70030-41330

BEARING, NEEDLE
(Superseded to 37013-41230)

$6.99

$

Usually ships in 2-4 days

0

7

Echo 20870-42101

CRANKSHAFT ASSY
(Superseded to A011000910)

$65.99

$

Usually ships in 2-4 days

0

8

Echo 02403-03100

KEY - 3X10
(Superseded to 9311503010)

$0.99

$

In Stock, Qty 20+

0

9

Echo 20870-51210

HUB, CLUTCH
(Superseded to 20870-51211)

$9.49

$

Usually ships in 2-4 days

0

10

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$1.49

$

Usually ships in 2-4 days

0

70140-51011

Echo 70140-51011

CLUTCH SHOE ASSY
(Superseded to 70140-51012)

$26.99

$

Usually ships in 2-4 days

0

11

Echo 70140-51220

SPRING, CLUTCH
(Superseded to A566000200)

$2.99

$

In Stock, only 2 left!

0

12

Echo 20087-51231

WASHER - SPRING
(Superseded to V346000040)

$1.49

$

Usually ships in 2-4 days

0

13

Echo 20087-51210

BOLT, CLUTCH
(Superseded to A557000040)

Note: RH Thread

$2.99

$

In Stock, only 2 left!

0

14

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$1.49

$

Usually ships in 2-4 days

0

15

Echo 20870-51220

SCREW - 6X18
(Superseded to V204000480)

Note: LH Thread

$1.99

$

Usually ships in 2-4 days

0

99909-315

Echo 99909-315

PISTON ASSY
(Superseded to 70870-98020)

$60.99

$

Usually ships in 2-4 days

0
