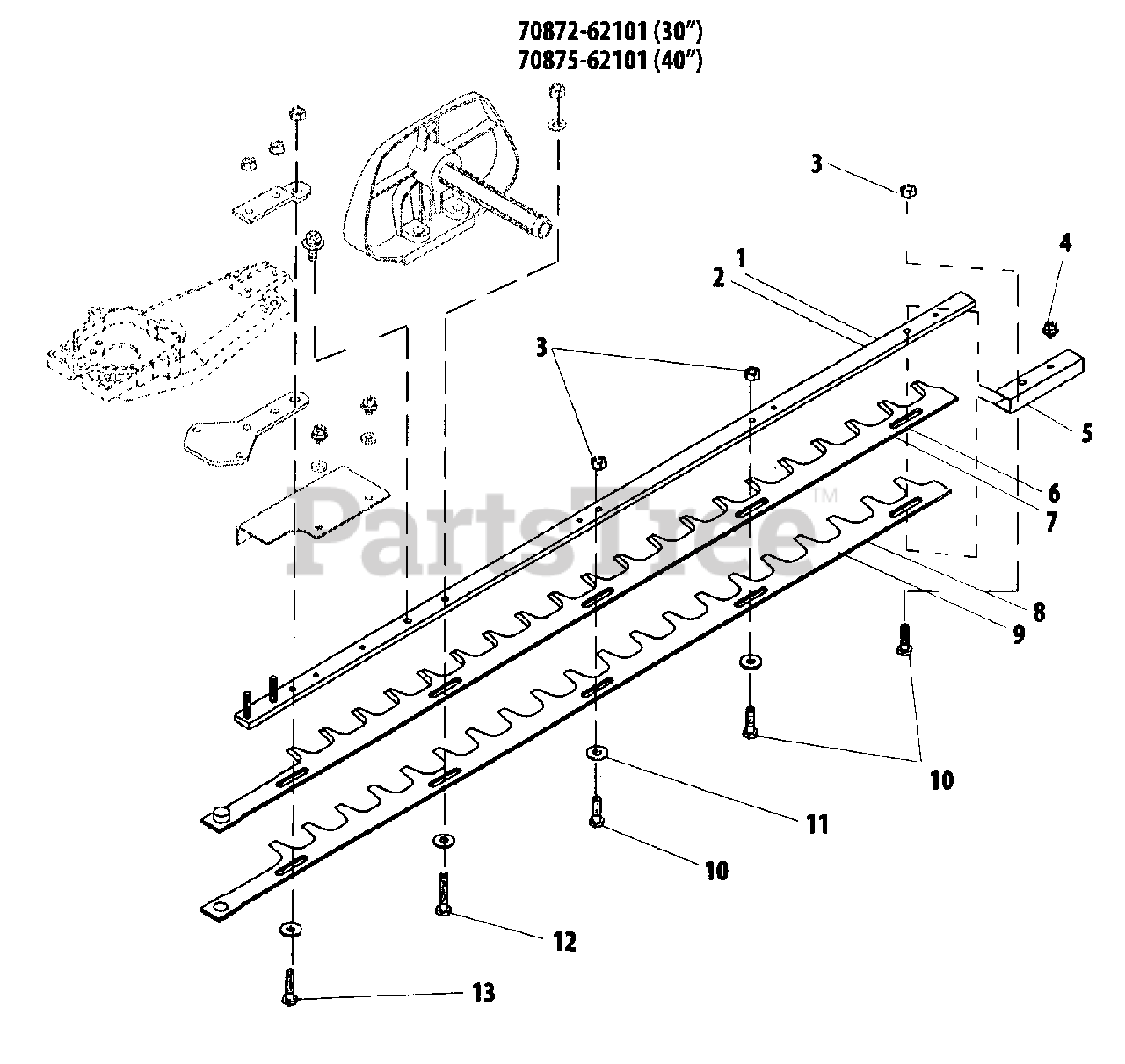

HT 230 - Shindaiwa Hedge Trimmer, Single-Sided Cutter Parts Diagram

Hedge Trimmer, Single-Sided

Cutter Parts Diagram

  • Title

70872-62101

Echo 70872-62101

TRIMMER BLADE KIT - 30"
(Superseded to X041000190)

$259.99

$

Usually ships in 2-4 days

0

70875-62101

Echo 70875-62101

TRIMMER BLADE KIT - 40"
(Superseded to 70875-62102)

$389.99

$

Usually ships in 2-4 days

0

1

Echo 20870-62201

GUIDE BAR - 30"
(Superseded to P021018940)

$66.99

$

Usually ships in 2-4 days

0

2

Echo 70875-62201

GUIDE BAR - 40"
(Superseded to 80006)

$107.99

$

Usually ships in 2-4 days

0

3

Echo 11525-06210

NUT M6
(Superseded to V264000160)

Note: Qty. (3,30"; 5,40")

$1.99

$

Usually ships in 2-4 days

0

4

Echo 20870-63120

BOLT M5×8
(Superseded to V203001130)

$1.49

$

In Stock, Qty 5

0

5

Echo 20870-62141

PLATE, GUIDE
(Superseded to V152002340)

$5.49

$

Usually ships in 2-4 days

0

6

Echo 18500-70000

BLADE, TRIMMER - 30" -- UPPER
(Superseded to 18500-70004)

$113.99

$

Usually ships in 2-4 days

0

7

Echo 18500-90000

BLADE, TRIMMER - 40" -- UPPER
(Superseded to X411001010)

$159.99

$

In Stock, only 1 left!

0

8

Echo 18500-70001

BLADE, TRIMMER - 30" -- LOWER
(Superseded to 18500-70005)

$113.99

$

Usually ships in 2-4 days

0

9

Echo 18500-90001

BLADE, TRIMMER - 40" -- LOWER
(Superseded to 18500-90003)

$189.99

$

Usually ships in 2-4 days

0

10

Echo 20870-62110

BOLT M6×20
(Superseded to V204000570)

Note: Qty. (3,30"; 5,40")

$1.99

$

In Stock, Qty 20+

0

11

Echo 20870-62131

WASHER M6
(Superseded to V304000240)

Note: Qty. (3,30"; 6,40")

$1.49

$

In Stock, Qty 14

0

12

Echo 20870-62120

BOLT M6×32
(Superseded to V204000520)

$1.99

$

In Stock, Qty 20+

0

13

Echo 20870-62150

BOLT
(Superseded to V204000510)

$1.99

$

In Stock, Qty 15

0
