HT 230 - Shindaiwa Hedge Trimmer, Single-Sided Cylinder Parts Diagram

Hedge Trimmer, Single-Sided

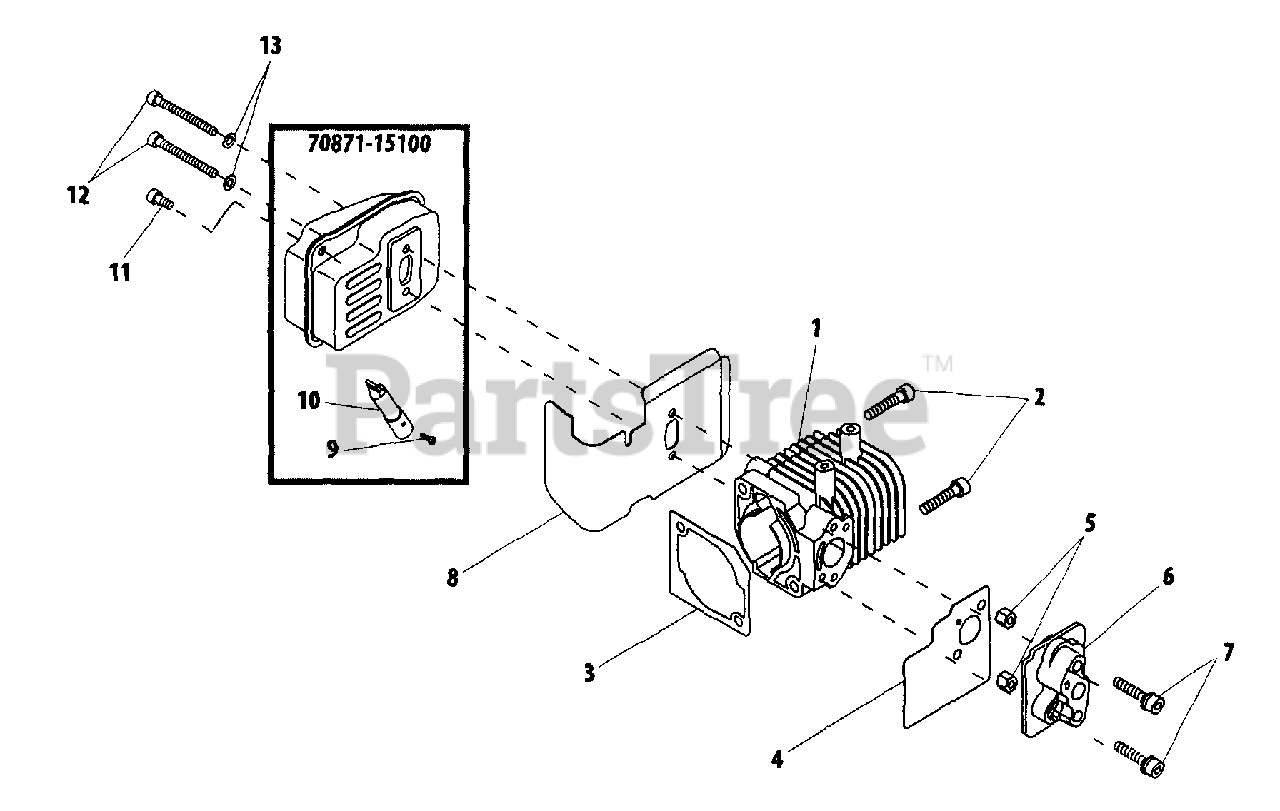

Cylinder Parts Diagram

  • Title

1

Echo 20870-12110

CYLINDER
(Superseded to 62809-12111)

$71.99

$

Usually ships in 2-4 days

0

2

Echo 01020-05250

BOLT 5×25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 8

0

3

Echo 20870-12120

GASKET, CYLINDER
(Superseded to 20870-12121)

$1.99

$

In Stock, only 2 left!

0

4

Echo 20870-12220

GASKET
(Superseded to V103001170)

$1.99

$

Usually ships in 2-4 days

0

5

Echo 20011-12260

NUT M5×6.3
(Superseded to V263000260)

$1.49

$

In Stock, Qty 5

0

6

Echo 20016-12210

INSULATOR
(Superseded to 20016-12211)

$13.99

$

In Stock, only 2 left!

0

7

Echo 11022-05250

BOLT M5×25
(Superseded to V203000630)

$1.49

$

In Stock, Qty 20+

0

8

Echo 20870-15122

GASKET
(Superseded to V104001450)

$8.99

$

Usually ships in 2-4 days

0

70871-15100

Echo 70871-15100

MUFFLER ASSY
(Superseded to A030000300)

$42.99

$

Usually ships in 2-4 days

0

9

Echo 01270-03062

SCREW, TAPPING 3×6
(Superseded to 9137403006)

$1.49

$

In Stock, only 2 left!

0

10

Echo 70871-15120

SCREEN, SPARK ARRESTER
(Superseded to A310000240)

$9.99

$

In Stock, only 1 left!

0

11

Echo 90010505012

BOLT 5×12

$1.49

$

In Stock, only 3 left!

0

12

Echo 01020-05500

BOLT M5×50
(Superseded to 90010505050)

$1.99

$

In Stock, Qty 11

0

13

Echo 01610-05080

WASHER, FLAT 5.5×10×0.8
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0
