HT 230 - Shindaiwa Hedge Trimmer, Single-Sided Cylinder Parts Diagram

Hedge Trimmer, Single-Sided

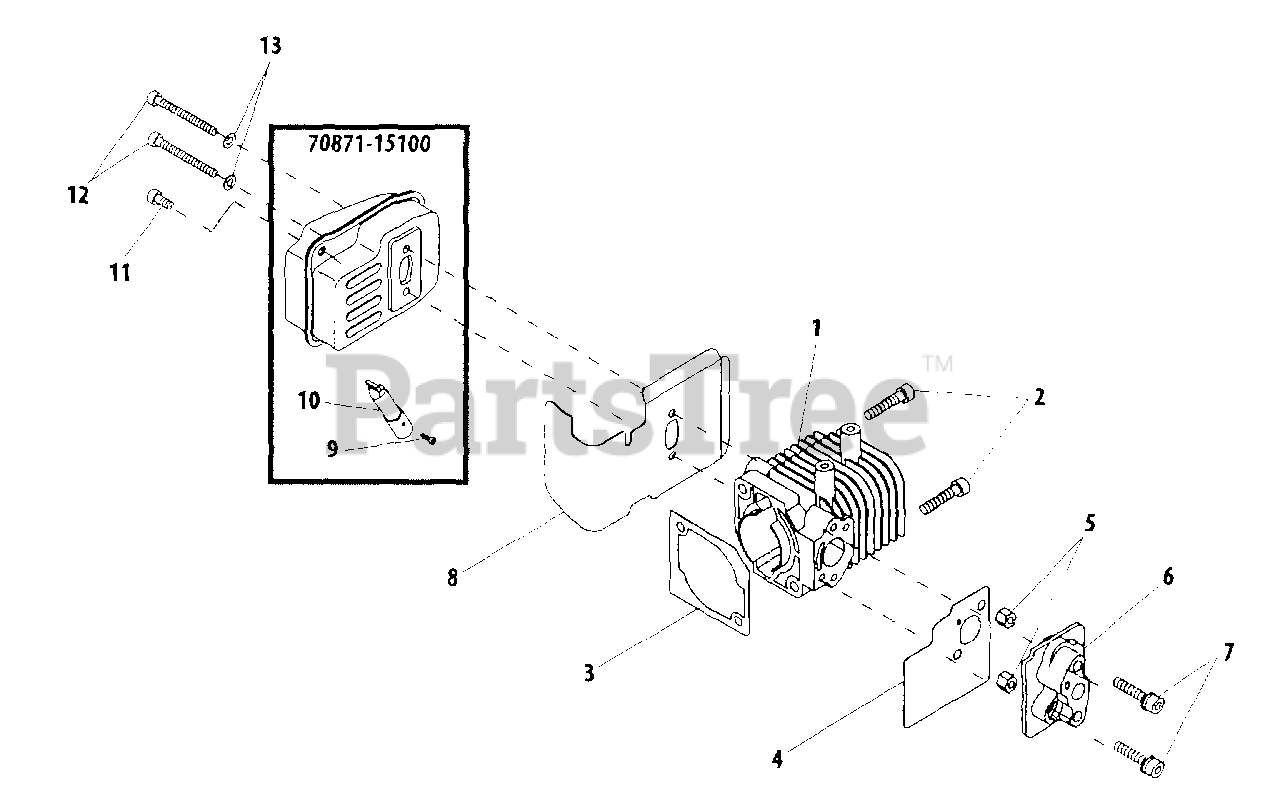

Cylinder Parts Diagram

  • Title

1

Echo 20870-12110

CYLINDER
(Superseded to 62809-12111)

$66.99

$

Usually ships in 2-4 days

0

2

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, only 3 left!

0

3

Echo 20870-12120

GASKET, CYLINDER
(Superseded to 20870-12121)

$1.99

$

In Stock, only 3 left!

0

4

Echo 20870-12220

SHIELD, INTAKE
(Superseded to V103001170)

$1.99

$

Usually ships in 2-4 days

0

5

Echo 20011-12260

NUT
(Superseded to V263000260)

$1.49

$

In Stock, Qty 11

0

6

Echo 20016-12210

INSULATOR
(Superseded to 20016-12211)

$12.99

$

In Stock, only 2 left!

0

7

Echo 11022-05250

SCREW - 5X25
(Superseded to V203000630)

$1.49

$

In Stock, Qty 20+

0

8

Echo 20870-15122

SHIELD, INTAKE
(Superseded to V104001450)

$8.49

$

Usually ships in 2-4 days

0

70871-15100

Echo 70871-15100

MUFFLER ASSY
(Superseded to A030000300)

$39.99

$

Usually ships in 2-4 days

0

9

Echo 01270-03062

SCREW - 3X6
(Superseded to 9137403006)

$1.49

$

In Stock, Qty 8

0

10

Echo 70871-15120

SCREEN, SPARK ARRESTOR
(Superseded to A310000240)

$8.99

$

In Stock, only 1 left!

0

11

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 14

0

12

Echo 01020-05500

SCREW - 5X50
(Superseded to 90010505050)

$1.49

$

In Stock, Qty 17

0

13

Echo 01610-05080

WASHER - 5
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0
