HT 231 - Shindaiwa Hedge Trimmer, Single-Sided (Original Version) Cutter Parts Diagram

Hedge Trimmer, Single-Sided

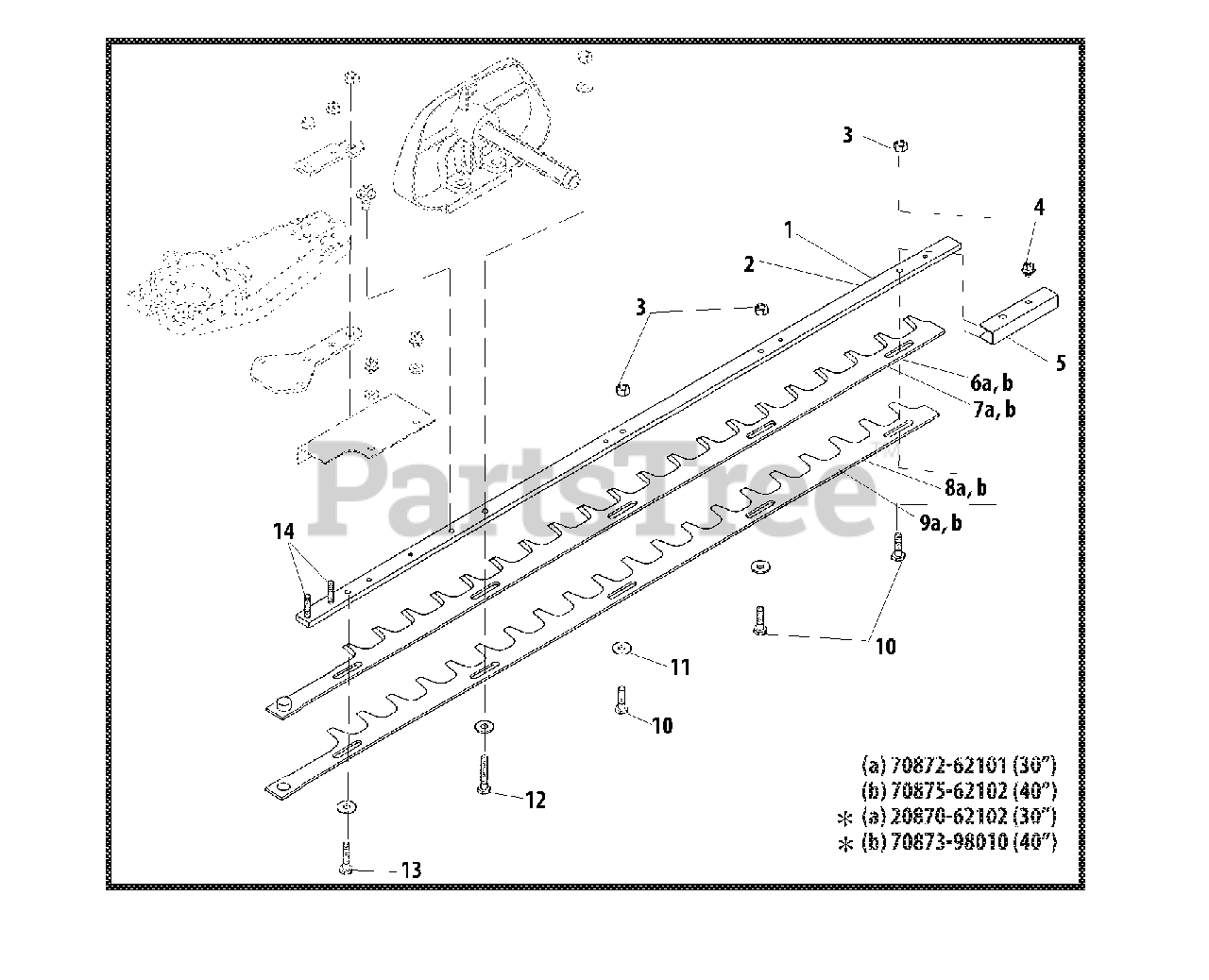

Cutter Parts Diagram

  • Title

70872-62101

Echo 70872-62101

BLADE KIT - 30" (76cm)
(Superseded to X041000190)

$241.99

$

Usually ships in 2-4 days

0

70875-62102

Echo 70875-62102

BLADE KIT - 40" (102cm)
(Superseded to 70873-98010)

$361.99

$

Usually ships in 2-4 days

0

20870-62102

Echo 20870-62102

BLADE KIT - 30" (76cm)
(Superseded to X041000010)

Note: Optional chrome blades

$241.99

$

Usually ships in 2-4 days

0

70873-98010

Echo 70873-98010

BLADE KIT - 40" (102cm)
(Superseded to X041000110)

Note: Optional chrome blades

$361.99

$

Usually ships in 2-4 days

0

1

Echo 20870-62201

SUPPORT, BLADE - 30" (76cm)
(Superseded to P021018940)

$61.99

$

Usually ships in 2-4 days

0

2

Echo 70875-62202

SUPPORT, BLADE - 40" (101cm)
(Superseded to P021030600)

$97.99

$

Usually ships in 2-4 days

0

3

Echo 11525-06210

NUT - 6
(Superseded to V264000160)

Note: (3,30";5,40")

$1.99

$

Usually ships in 2-4 days

0

4

Echo 20870-63120

BOLT - 5X8
(Superseded to V203001130)

$1.49

$

In Stock, Qty 5

0

5

Echo 20870-62141

PLATE, GUIDE
(Superseded to V152002340)

$4.99

$

Usually ships in 2-4 days

0

5

Echo 70875-62310

PLATE, GUIDE
(Superseded to V152002360)

$4.49

$

Usually ships in 2-4 days

0

6

Echo 18500-70000

BLADE - 30" (76mm) -- UPPER
(Superseded to 18500-70004)

$105.99

$

Usually ships in 2-4 days

0

6

Echo 18500-70004

BLADE - 30" (76mm) -- UPPER
(Superseded to X411000870)

Note: Optional chrome blades

$105.99

$

Usually ships in 2-4 days

0

7

Echo 18500-90000

BLADE - 40" (101cm) -- UPPER
(Superseded to X411001010)

$159.99

$

In Stock, only 1 left!

0

7

Echo 18500-90002

BLADE - 40" (101cm) -- UPPER
(Superseded to X411000940)

Note: Optional chrome blades

$175.99

$

Usually ships in 2-4 days

0

8

Echo 18500-70001

BLADE - 30" (76mm) -- LOWER
(Superseded to 18500-70005)

$105.99

$

Usually ships in 2-4 days

0

8

Echo 18500-70005

BLADE - 30" (76mm) -- LOWER
(Superseded to X411000880)

Note: Optional chrome blades

$105.99

$

Usually ships in 2-4 days

0

9

Echo 18500-90001

BLADE - 40" (101cm) -- LOWER
(Superseded to 18500-90003)

$175.99

$

Usually ships in 2-4 days

0

9

Echo 18500-90003

BLADE - 40" (101cm) -- LOWER
(Superseded to X411000950)

Note: Optional chrome blades

$175.99

$

Usually ships in 2-4 days

0

10

Echo 20870-62110

BOLT - 6X20
(Superseded to V204000570)

Note: (3,30";5,40")

$1.99

$

In Stock, Qty 20+

0

11

Echo 20870-62131

WASHER - 6
(Superseded to V304000240)

Note: (4,30";6,40")

$1.49

$

In Stock, Qty 20+

0

12

Echo 20870-62120

BOLT - 6X32
(Superseded to V204000520)

$1.99

$

In Stock, Qty 20+

0

13

Echo 20870-62150

BOLT
(Superseded to V204000510)

$1.99

$

In Stock, Qty 18

0

14

Echo 01201-05255

SCREW - 5X25
(Superseded to 90027305025)

$1.49

$

Usually ships in 2-4 days

0
