HT 231 - Shindaiwa Hedge Trimmer, Single-Sided (SN: T08412001001 - T08412999999) Gear Case Parts Diagram

Hedge Trimmer, Single-Sided

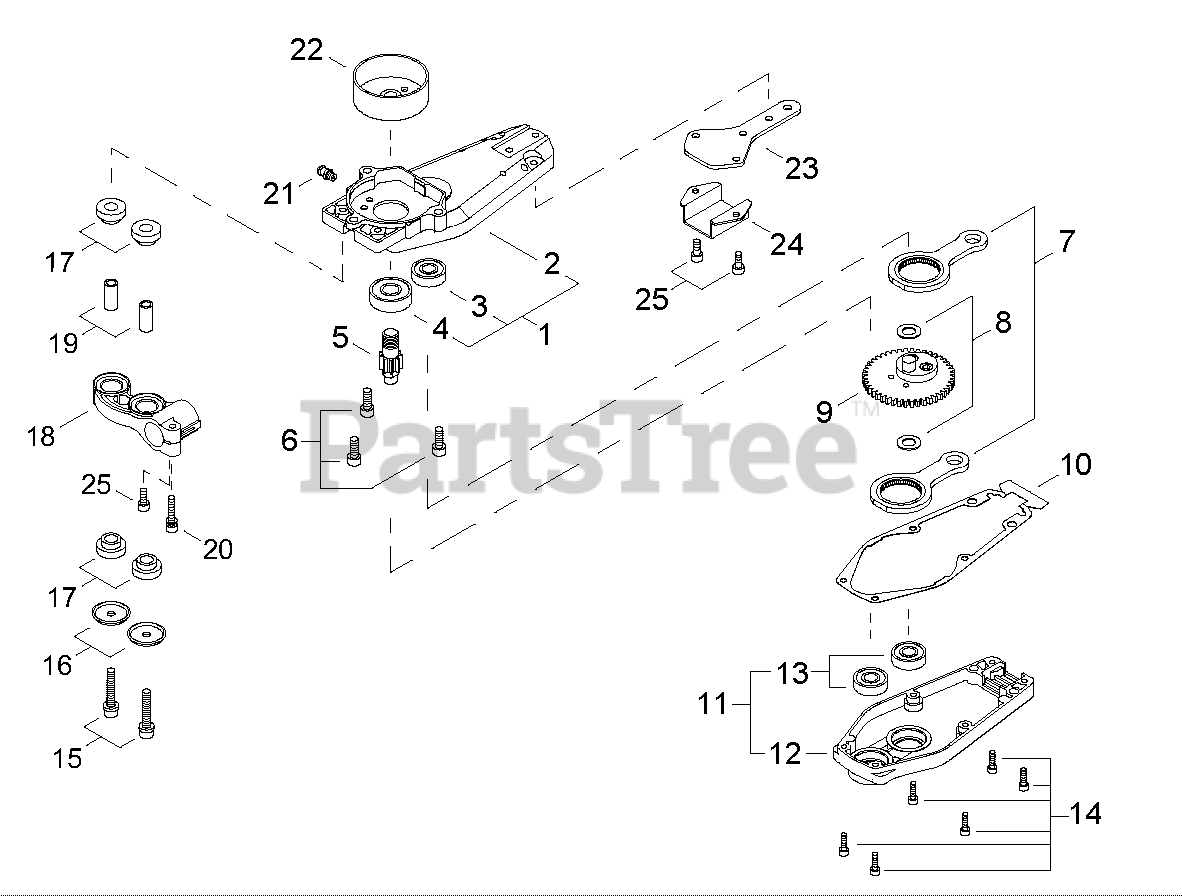

Gear Case Parts Diagram

  • Title

1

Echo P021018920

GEAR CASE ASSY

$72.99

$

Usually ships in 2-4 days

0

2

Echo C531000690

CASE, GEAR

$47.99

$

In Stock, only 1 left!

0

3

Echo 9404406000

BEARING, BALL - 6000ZZ

$11.99

$

In Stock, only 2 left!

0

4

Echo 90081206201

BEARING, BALL - 6201

$14.99

$

In Stock, only 3 left!

0

5

Echo V655000050

SHAFT, PINION

$35.99

$

Usually ships in 2-4 days

0

6

Echo 90010506016

SCREW - 6X16

$1.49

$

In Stock, Qty 7

0

7

Echo C532000210

ROD, CONNECTING

$77.99

$

In Stock, Qty 6

0

8

Echo V307000240

WASHER - 10

$1.49

$

In Stock, only 2 left!

0

9

Echo V060000080

CAM GEAR ASSY

$95.99

$

Usually ships in 2-4 days

0

10

Echo V110000130

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 7

0

11

Echo P021018930

GEAR CASE LID ASSY

$52.99

$

In Stock, only 1 left!

0

12

Echo C539000070

LID, GEAR CASE

$30.99

$

Usually ships in 2-4 days

0

13

Echo 9404406000

BEARING, BALL - 6000ZZ

$11.99

$

In Stock, only 2 left!

0

14

Echo 90010504014

SCREW - 4X14

$1.49

$

In Stock, Qty 20+

0

15

Echo V204000530

SCREW - 6X35
(Superseded to 9112206035)

$1.99

$

In Stock, Qty 12

0

16

Echo V304000220

WASHER - CUP

$1.99

$

In Stock, only 3 left!

0

17

Echo V420002580

CUSHION

$1.49

$

In Stock, only 3 left!

0

18

Echo C415000080

MOUNT, HANDLE

$20.99

$

In Stock, only 1 left!

0

19

Echo V354000300

COLLAR - 6

$1.99

$

In Stock, Qty 5

0

20

Echo V203000560

SCREW - 5X25

$1.99

$

In Stock, only 3 left!

0

21

Echo V187000080

FITTING, GREASE

$1.99

$

In Stock, Qty 5

0

22

Echo A556000930

DRUM, CLUTCH

$26.99

$

In Stock, only 1 left!

0

23

Echo V150002430

PLATE

$6.99

$

Usually ships in 2-4 days

0

24

Echo C538000140

GUIDE, BLADE

$4.99

$

Usually ships in 2-4 days

0

25

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, only 1 left!

0
