HT 232 - Shindaiwa Hedge Trimmer, Single-Sided (SN: T29411001001 - T29411999999) 30" CUTTER Parts Diagram

Hedge Trimmer, Single-Sided

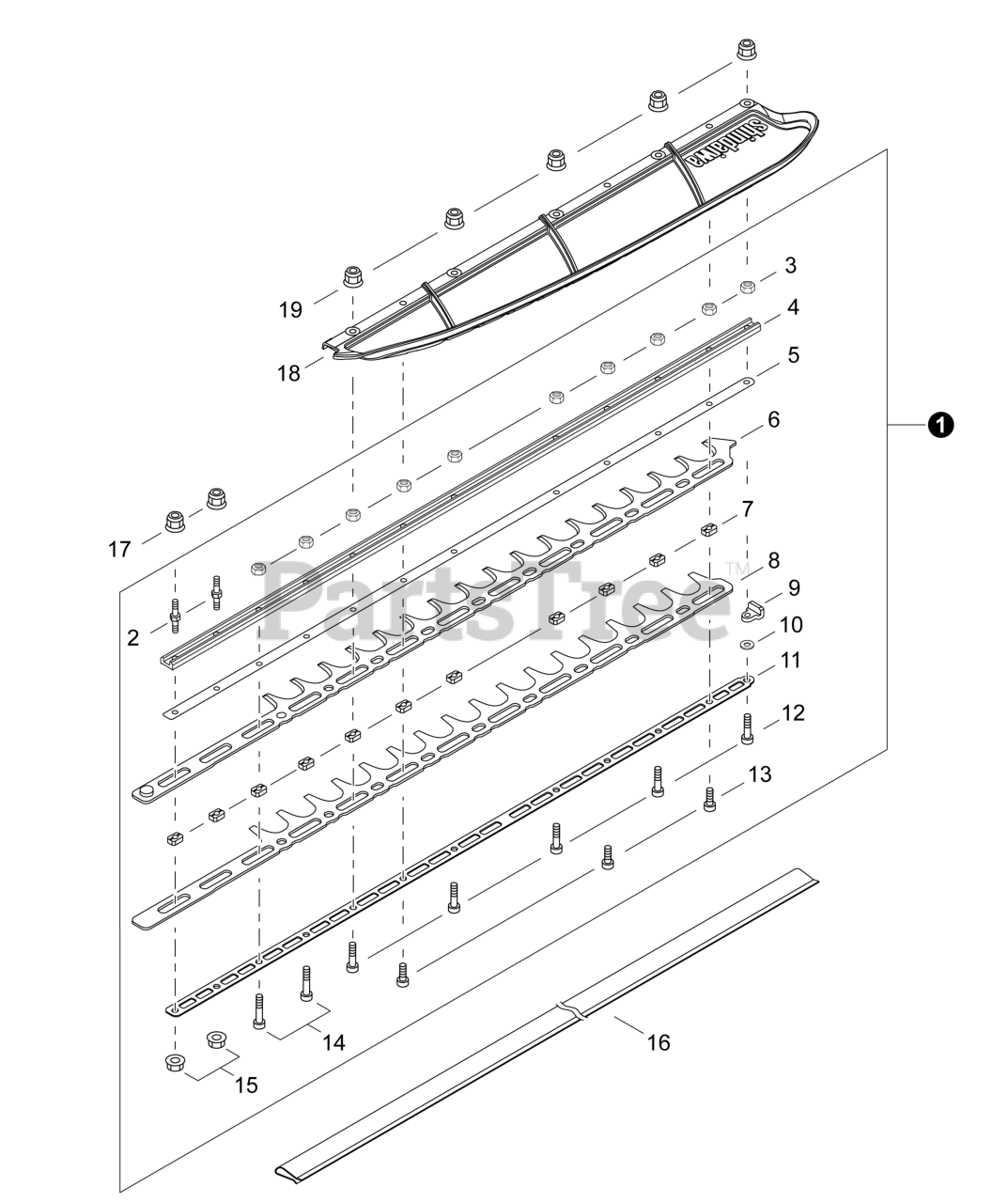

30" CUTTER Parts Diagram

  • Title

1

Echo X041000440

CUTTER ASSY, 28"
(Superseded to X041000740)

Note: Includes Items 2-15

$258.99

$

In Stock, only 1 left!

0

2

Echo V223000020

STUD, MOUNTING M5x36

$1.99

$

In Stock, Qty 20+

0

3

Echo 9202205000

NUT

$0.99

$

In Stock, Qty 20+

0

4

Echo X425000540

SUPPORT, BLADE 28"

$68.99

$

In Stock, only 2 left!

0

5

Echo X425000550

SUPPORT, BLADE 28"

$23.99

$

In Stock, only 3 left!

0

6

Echo X411001240

CUTTER 28"
(Superseded to X412000810)

$91.99

$

In Stock, only 2 left!

0

7

Echo V376001390

SPACER

$3.99

$

In Stock, only 1 left!

0

8

Echo X411001250

CUTTER 28"
(Superseded to X412000820)

$91.99

$

Usually ships in 2-4 days

0

9

Echo V376001380

SPACER

$12.99

$

In Stock, Qty 5

0

10

Echo 9221705000

WASHER

$1.49

$

In Stock, Qty 16

0

11

Echo X425000560

SUPPORT, BLADE 28"

$56.99

$

Usually ships in 2-4 days

0

12

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

13

Echo V805000150

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

14

Echo V805000050

BOLT, TORX 5x30

$0.99

$

In Stock, Qty 10

0

15

Echo V263000250

NUT, FLANGE M5

$1.99

$

In Stock, Qty 20+

0

16

Echo X495000320

SCABBARD
(Superseded to X495000690)

$22.99

$

Usually ships in 2-4 days

0

17

Echo V263000250

NUT, FLANGE M5

$1.99

$

In Stock, Qty 20+

0

18

Echo C571000080

DEFLECTOR, DEBRIS

$25.99

$

Usually ships in 2-4 days

0

19

Echo V263000250

NUT, FLANGE M5

$1.99

$

In Stock, Qty 20+

0
