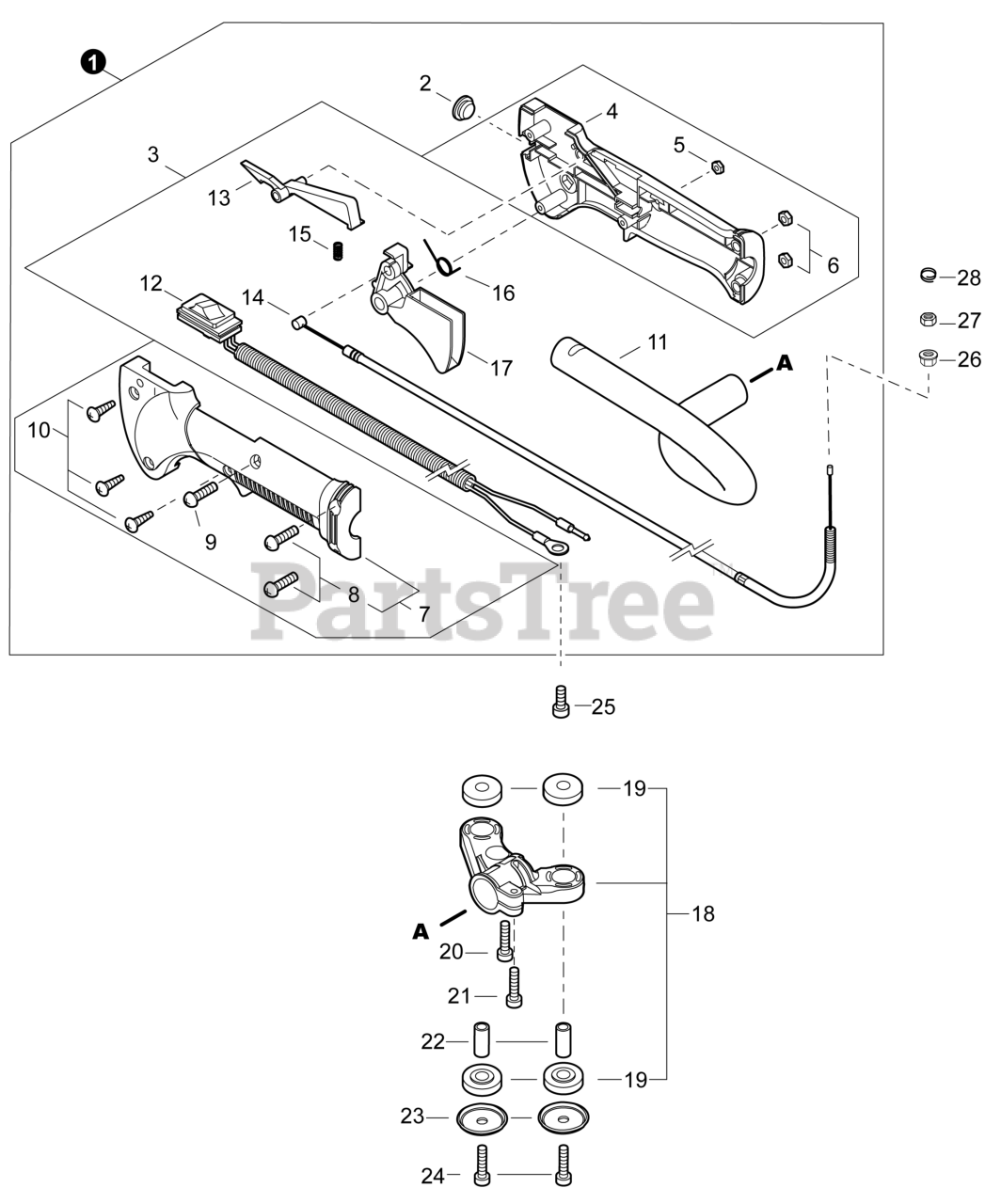

HT 232 - Shindaiwa Hedge Trimmer, Single-Sided (SN: T29411001001 - T29411999999) REAR HANDLE / THROTTLE CONTROL Parts Diagram

Hedge Trimmer, Single-Sided

REAR HANDLE / THROTTLE CONTROL Parts Diagram

  • Title

1

Echo C041000691

HANDLE ASSY, REAR
(Superseded to P200000190)

Note: Includes Items 2-17

$126.99

$

Usually ships in 2-4 days

0

2

Echo V162000410

PLUG, RUBBER

$2.49

$

In Stock, only 4 left!

0

3

Echo P021047790

HANDLE KIT

Note: Includes Items 4-10

$27.99

$

Usually ships in 2-4 days

0

4

Echo C412000430

CONTROL HANDLE - RIGHT

$19.99

$

Usually ships in 2-4 days

0

5

Echo V262000100

NUT M4

$0.99

$

In Stock, Qty 20+

0

6

Echo 9211405000

NUT, LOCK M5
(Superseded to P022037470)

$5.99

$

In Stock, Qty 5

0

7

Echo P021044940

CONTROL HANDLE KIT

Note: Includes Item 8

$20.99

$

In Stock, only 1 left!

0

8

Echo 9133505022

SCREW M5x22

$0.99

$

In Stock, Qty 9

0

9

Echo V252000370

SCREW M4x23

$1.99

$

In Stock, Qty 12

0

10

Echo V252000360

SCREW, TAPPING 4x16

$0.99

$

Usually ships in 2-4 days

0

11

Echo C410000710

HANDLE, REAR
(Superseded to P200000200)

$51.99

$

In Stock, only 2 left!

0

12

Echo P021041711

SWITCH ASSY, ON-OFF

$26.99

$

In Stock, only 1 left!

0

13

Echo C460000241

LOCKOUT, THROTTLE

$1.99

$

In Stock, only 1 left!

0

14

Echo V430004400

CABLE, THROTTLE

$15.99

$

In Stock, Qty 6

0

15

Echo V450001020

SPRING, COMPRESSION

$0.99

$

In Stock, Qty 9

0

16

Echo V452000690

SPRING, TORSION

$0.99

$

In Stock, Qty 9

0

17

Echo C450000581

TRIGGER, THROTTLE

$3.99

$

Usually ships in 2-4 days

0

18

Echo P021040660

SUPPORT ASSY, HANDLE
(Superseded to P021040661)

Note: Includes Item 19

$44.99

$

Usually ships in 2-4 days

0

19

Echo V420004390

CUSHION

$2.49

$

Usually ships in 2-4 days

0

20

Echo V805000140

BOLT, TORX 5x12

$0.99

$

In Stock, Qty 20+

0

21

Echo V805000150

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

22

Echo V354000310

COLLAR 6

$3.49

$

Usually ships in 2-4 days

0

23

Echo V304000230

WASHER 6

$3.99

$

Usually ships in 2-4 days

0

24

Echo V806000110

BOLT, TORX 6

$0.99

$

In Stock, Qty 20+

0

25

Echo V804000040

BOLT, TORX 4x10

$0.99

$

In Stock, Qty 14

0

26

Echo 90051800006

NUT, FLANGE M6

$1.49

$

In Stock, Qty 20+

0

27

Echo 90050200006

NUT M6

$0.99

$

In Stock, Qty 10

0

28

Echo V490001100

CLIP

$0.99

$

In Stock, Qty 13

0
