HT 235 - Shindaiwa Hedge Trimmer, Single-Sided (SN: T49014001001 - T49014999999) FUEL SYSTEM Parts Diagram

Hedge Trimmer, Single-Sided

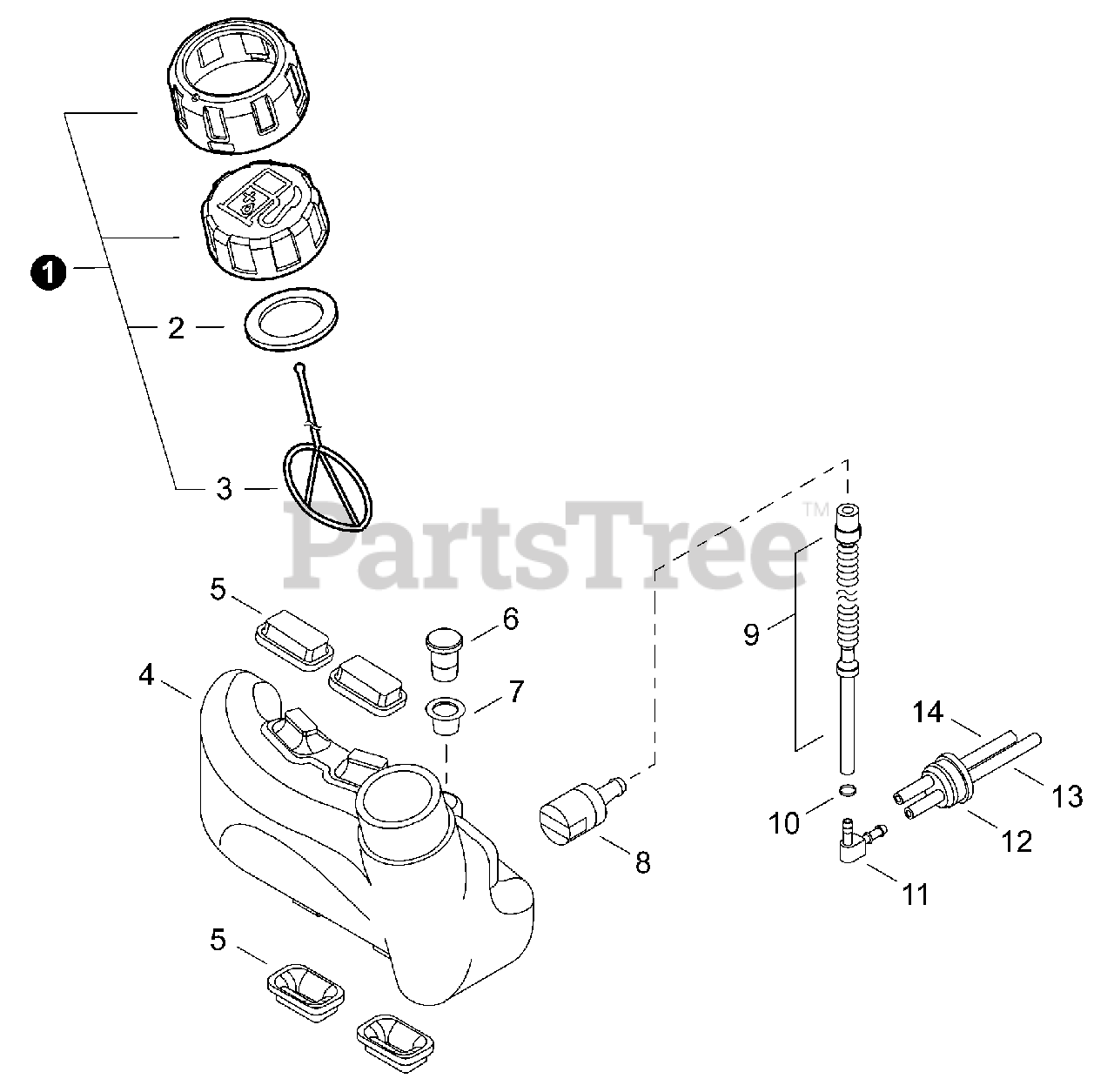

FUEL SYSTEM Parts Diagram

  • Title

1

Echo P021041580

CAP ASSY, FUEL

Note: Includes ITEMS 2-3

$8.49

$

In Stock, only 2 left!

0

2

Echo V107000150

GASKET, FUEL CAP

$4.99

$

In Stock, Qty 20+

0

3

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 20+

0

4

Echo A350001952

TANK, FUEL
(Superseded to A350001953)

$44.99

$

Usually ships in 2-4 days

0

5

Echo V420004490

CUSHION

$1.49

$

In Stock, only 4 left!

0

6

Echo A356000031

VENT ASSY

$8.99

$

In Stock, Qty 20+

0

7

Echo V137000000

GROMMET, FUEL
(Superseded to V137000001)

$1.49

$

In Stock, Qty 5

0

8

Echo 13120507321

FILTER, FUEL
(Superseded to A369000480)

$6.49

$

In Stock, Qty 20+

0

9

Echo V471003510

PIPE, FUEL 125MM
(Superseded to V471003511)

$4.99

$

Usually ships in 2-4 days

0

10

Echo V490001230

CLIP 6.5MM

$0.99

$

In Stock, Qty 20+

0

11

Echo V186000500

CONNECTOR, PIPE 5.4

$0.99

$

In Stock, Qty 18

0

12

Echo 13211544330

GROMMET, FUEL
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

13

Echo V471004060

PIPE, FUEL 3×5×83
(Superseded to V471005650)

$3.49

$

In Stock, Qty 20+

0

14

Echo 13201049730

PIPE, FUEL 3×6×85 CLEAR

$2.49

$

In Stock, Qty 7

0
