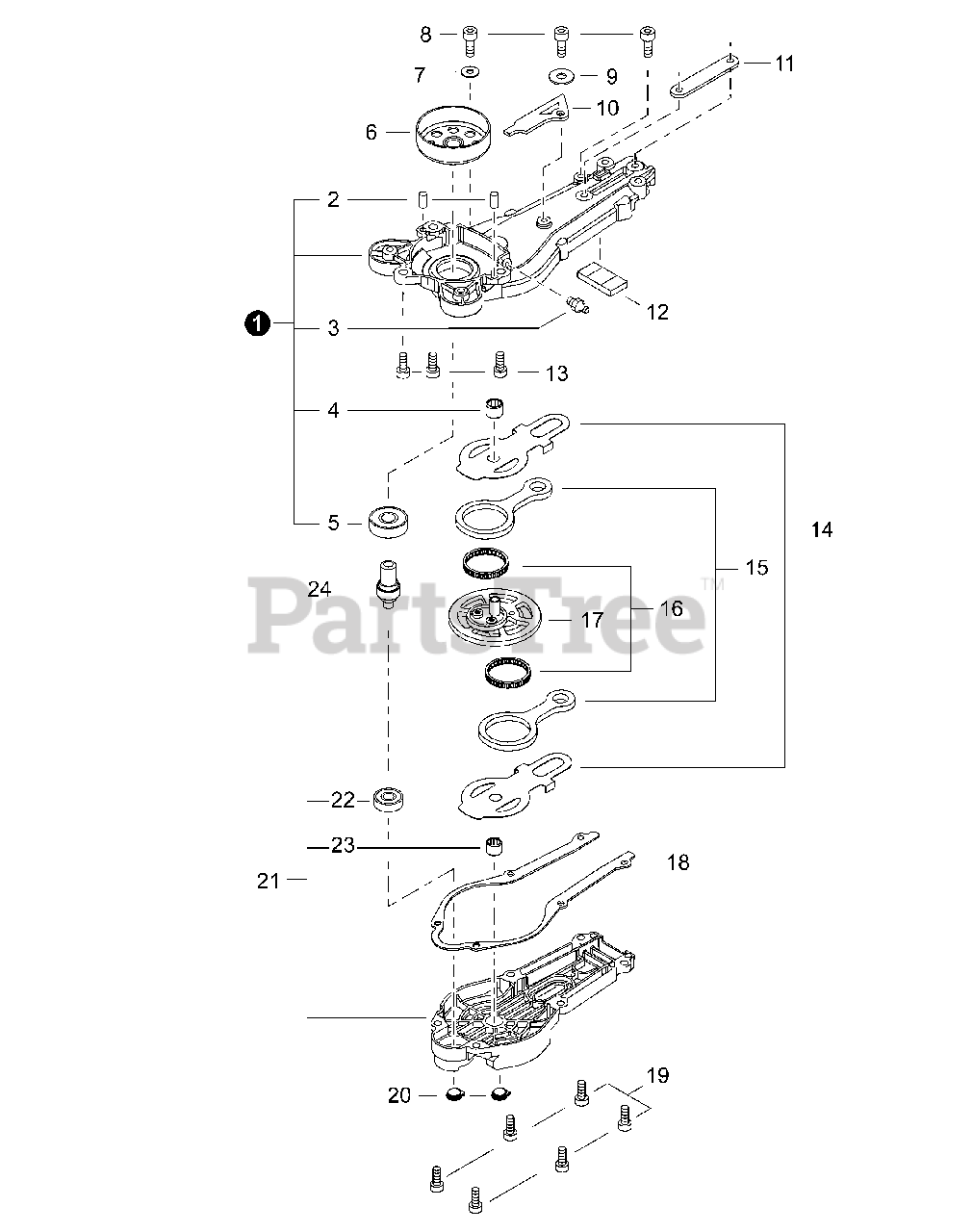

HT 235 - Shindaiwa Hedge Trimmer, Single-Sided (SN: T49014001001 - T49014999999) GEAR CASE Parts Diagram

Hedge Trimmer, Single-Sided

GEAR CASE Parts Diagram

  • Title

1

Echo P021041560

GEAR CASE HOUSING ASSY
(Superseded to P021041561)

Note: Includes ITEMS 2-5

$82.99

$

In Stock, only 4 left!

0

2

Echo 90033040080

PIN, LOCATING 4×8

$1.49

$

In Stock, Qty 17

0

3

Echo V187000080

FITTING, GREASE

$1.99

$

In Stock, only 4 left!

0

4

Echo V553000110

BEARING, NEEDLE 8

$7.49

$

In Stock, only 2 left!

0

5

Echo 90080206001

BEARING, BALL 6001 DDU
(Superseded to 9404206001)

$10.99

$

In Stock, only 2 left!

0

6

Echo A556001430

DRUM, CLUTCH

$50.99

$

In Stock, only 2 left!

0

7

Echo 90060200005

WASHER 5.3×10×1
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

8

Echo V805000110

BOLT, TORX 5

$1.99

$

Usually ships in 2-4 days

0

9

Echo V303000240

WASHER 5

$1.49

$

In Stock, only 2 left!

0

10

Echo C536000170

CUSHION

$5.99

$

Usually ships in 2-4 days

0

11

Echo V150003700

PLATE, EYE

$1.99

$

In Stock, Qty 12

0

12

Echo V541000200

PACKING, FELT

$3.99

$

In Stock, only 2 left!

0

13

Echo V806000050

BOLT, TORX 6×20

$0.99

$

In Stock, Qty 13

0

14

Echo C603000260

PLATE, SIDE

$5.49

$

In Stock, only 2 left!

0

15

Echo C532000200

CONROD

$40.99

$

In Stock, only 2 left!

0

16

Echo V572000000

BEARING, NEEDLE 30

$16.99

$

In Stock, only 2 left!

0

17

Echo V060000071

GEAR, SPUR
(Superseded to V060000072)

$127.99

$

Usually ships in 2-4 days

0

18

Echo V110000120

GASKET, GEAR CASE
(Superseded to V110000190)

$10.99

$

In Stock, only 4 left!

0

19

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

20

Echo V162000390

PLUG

$3.49

$

Usually ships in 2-4 days

0

21

Echo P021034241

COVER ASSY, GEAR CASE

Note: Includes ITEMS 22-23

$79.99

$

In Stock, Qty 5

0

22

Echo 90080400608

BEARING, BALL 608ZZ

$14.99

$

In Stock, only 2 left!

0

23

Echo V553000110

BEARING, NEEDLE 8

$7.49

$

In Stock, only 2 left!

0

24

Echo V655000070

SHAFT, PINION

$20.99

$

In Stock, only 2 left!

0
