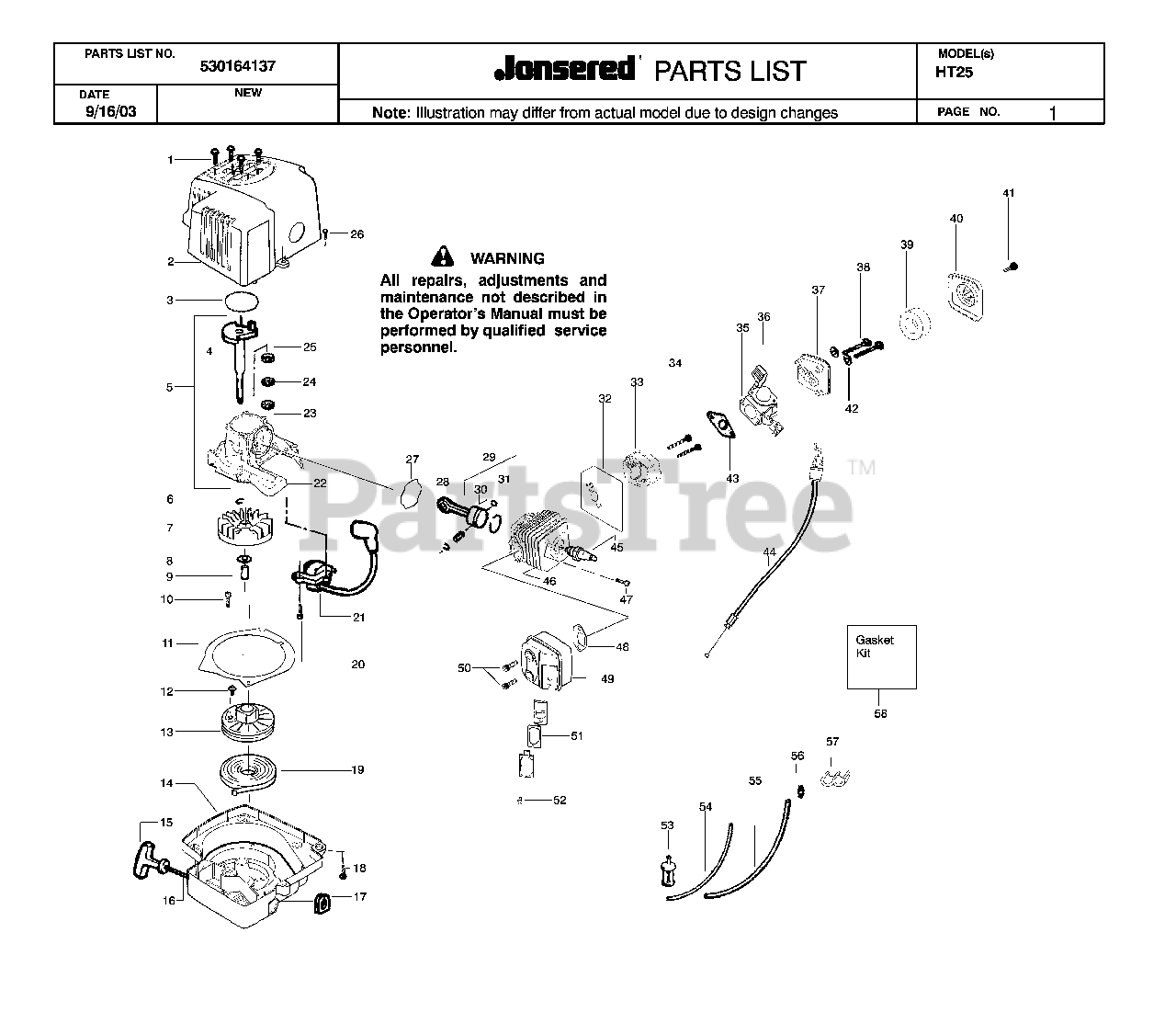

HT 25 - Jonsered Hedge Trimmer (2004-01) RAIL Parts Diagram

Hedge Trimmer

RAIL Parts Diagram

  • Title

1

Jonsered 530016386

SCREW

$10.99

$

In Stock, Qty 9

0

2

Jonsered 530056620

ASSY-SHROUD

$36.99

$

Usually ships in 3-10 days

0

3

Jonsered 530071486

GASKET KIT

$9.99

$

In Stock, only 1 left!

0

4

Jonsered 530028802

CRANKSHAFT
(Superseded to 545145801)

$24.99

$

Usually ships in 3-10 days

0

5

Jonsered 530071681

CRANKCASE

$

$

Not available

6

Jonsered 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

7

Jonsered 530071487

FLYWHEEL
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

8

Jonsered 530015828

WASHER FLAT

$4.99

$

In Stock, only 1 left!

0

9

Jonsered 530055729

SPACER

$9.22

$

Usually ships in 3-10 days

0

10

Jonsered 530015496

SCREW-10-16 X 1/2 HI-LO

$3.99

$

Usually ships in 3-10 days

0

11

Jonsered 530055681

PLATE-BAFFLE

$

$

Not available

12

Jonsered 530016392

SCREW SEMS TOOTHED WASHER

$4.99

$

Usually ships in 3-10 days

0

13

Jonsered 530069353

STARTER PULLEY

$

$

Not available

14

Jonsered 530056271

FAN HOUSING
(Superseded to 530056267)

$

$

Not available

15

Jonsered 530027569

HANDLE-STARTER

$6.49

$

In Stock, only 2 left!

0

16

Jonsered 530069232

KIT-ROPE

$7.49

$

In Stock, Qty 20+

0

17

Jonsered 530019182

GROMMET

$3.99

$

Usually ships in 3-10 days

0

18

Jonsered 530016386

SCREW

$10.99

$

In Stock, Qty 9

0

19

Jonsered 530042085

STARTER SPRING
(Superseded to 545008010)

$7.49

$

In Stock, Qty 20+

0

20

Jonsered 530016357

SCREW

$6.49

$

In Stock, Qty 5

0

21

Jonsered 530054137

IGNITION MODULE

$

$

Not available

22

Jonsered 530012510

CRANKCASE

$

$

Not available

23

Jonsered 530055728

OUTER BEARING

$9.99

$

Usually ships in 3-10 days

0

24

Jonsered 530019264

SEAL

$7.49

$

In Stock, only 1 left!

0

25

Jonsered 530032125

BEARING
(Superseded to 738210101)

$12.99

$

Usually ships in 3-10 days

0

26

Jonsered 530015882

SCREW

$

$

Not available

27

Jonsered 530071486

GASKET KIT

$9.99

$

In Stock, only 1 left!

0

28

Jonsered 530069945

No Description Available
(Superseded to 530049817)

$9.99

$

Usually ships in 3-10 days

0

29

Jonsered 530071357

PISTON
(Superseded to 530071833)

$37.99

$

In Stock, only 1 left!

0

30

Jonsered 530015162

WRIST PIN RET.

$6.49

$

Usually ships in 3-10 days

0

31

Jonsered 530055120

PISTON RING
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

32

Jonsered 530071486

GASKET KIT

$9.99

$

In Stock, only 1 left!

0

33

Jonsered 530057634

ADAPTER

$12.99

$

In Stock, only 1 left!

0

34

Jonsered 530016309

SCREW

$4.99

$

Usually ships in 3-10 days

0

35

Jonsered 530071776

No Description Available

$46.99

$

Usually ships in 3-10 days

0

36

Jonsered 530059280

No Description Available

$9.99

$

Usually ships in 3-10 days

0

37

Jonsered 530055680

AIR BOX

$4.99

$

In Stock, only 2 left!

0

38

Jonsered 530016429

SCREW

$6.49

$

In Stock, Qty 8

0

39

Jonsered 530047932

No Description Available

$4.99

$

In Stock, Qty 12

0

40

Jonsered 530055679

AIR FILTER COVER

$

$

Not available

41

Jonsered 530015957

SCREW

$4.99

$

In Stock, Qty 7

0

42

Jonsered 530015158

WASHER
(Superseded to 530015123)

$4.99

$

In Stock, only 4 left!

0

43

Jonsered 530071486

GASKET KIT

$9.99

$

In Stock, only 1 left!

0

44

Jonsered 530058756

THROTTLE WIRE

$10.99

$

Usually ships in 3-10 days

0

45

Jonsered 952030249

PLUG-SPARK (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

46

Jonsered 530012500

CYLINDER

$18.99

$

Usually ships in 3-10 days

0

47

Jonsered 530015953

SCREW

$6.49

$

In Stock, Qty 8

0

48

Jonsered 530071486

GASKET KIT

$9.99

$

In Stock, only 1 left!

0

49

Jonsered 530071805

No Description Available

$21.99

$

In Stock, only 1 left!

0

50

Jonsered 530016338

SCREW MUFFLER

$3.99

$

In Stock, only 3 left!

0

51

Jonsered 530071544

PARTITION

$

$

Not available

52

Jonsered 530015241

SCREW-6-19X5/16PLAST PA

$3.99

$

Usually ships in 3-10 days

0

53

Jonsered 530095647

ASSY-FUEL PICK-UP

$7.49

$

In Stock, only 4 left!

0

54

Jonsered 530069247

KIT-LINE

$6.49

$

In Stock, Qty 20+

0

55

Jonsered 530069216

LINE KIT

$6.49

$

In Stock, Qty 20+

0

56

Jonsered 530023877

FUEL LINE FITTING

$4.99

$

In Stock, Qty 20+

0

57

Jonsered 530016103

RETAINER

$6.49

$

In Stock, Qty 5

0

58

Jonsered 530071486

GASKET KIT

$9.99

$

In Stock, only 1 left!

0

530164124

Jonsered 530164124

No Description Available

$

$

Not available

530164125

Jonsered 530164125

No Description Available

$

$

Not available
