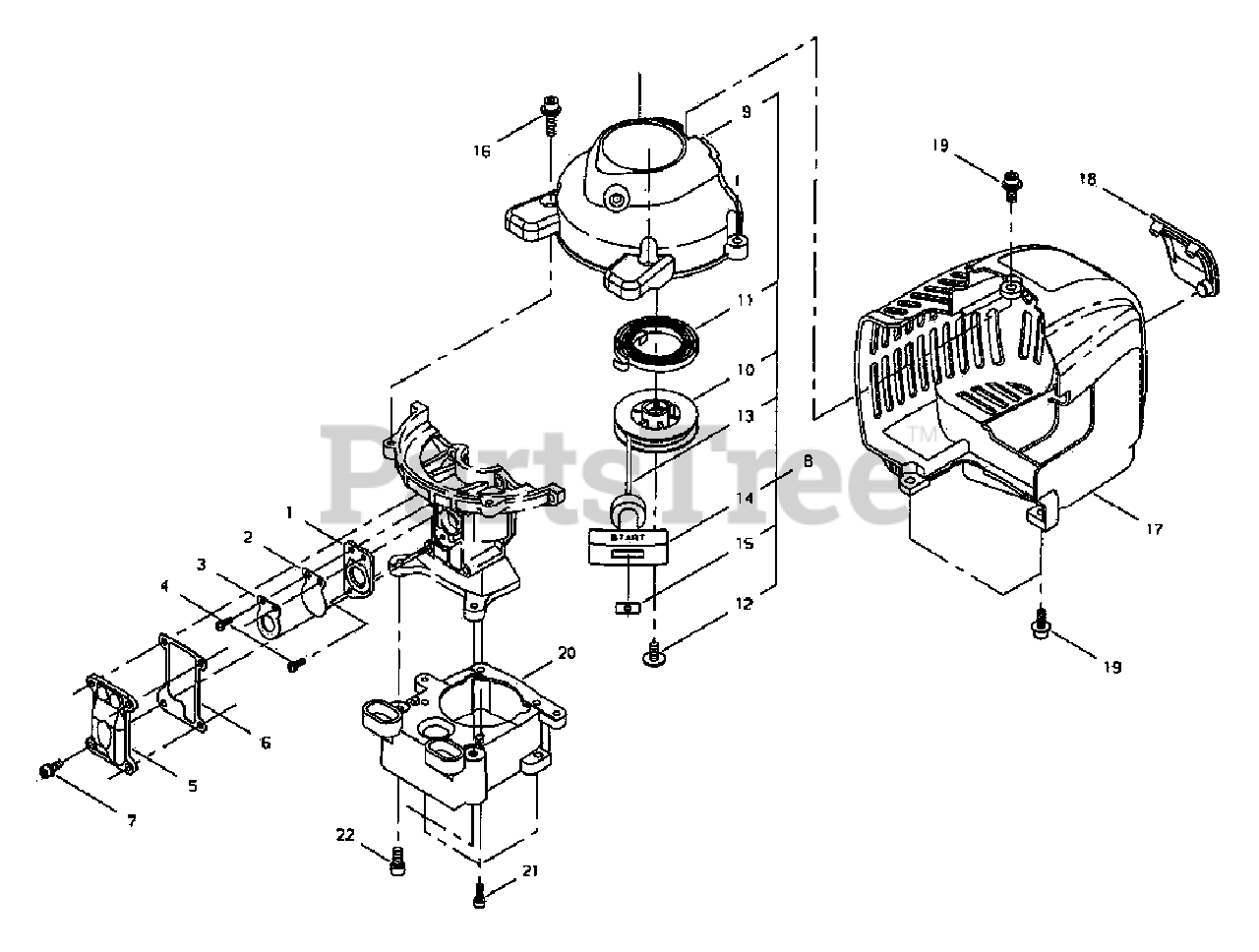

HT 2510 - Shindaiwa Hedge Trimmer, Single-Sided Crankcase, Starter Parts Diagram

Hedge Trimmer, Single-Sided

Crankcase, Starter Parts Diagram

  • Title

1

Echo 62901-21320

PLATE, REED BACKING
(Superseded to A200000750)

$12.99

$

Usually ships in 2-4 days

0

2

Echo 72320-83121

VALVE, REED
(Superseded to A211000030)

$5.99

$

Usually ships in 2-4 days

0

3

Echo 72320-83132

STOP, REED VALVE
(Superseded to A212000040)

$3.49

$

Usually ships in 2-4 days

0

4

Echo 01211-03100

SCREW - 3X10
(Superseded to 9134103010)

$1.49

$

Usually ships in 2-4 days

0

5

Echo 62901-21120

COVER, REED VALVE
(Superseded to A123000000)

$6.49

$

Usually ships in 2-4 days

0

6

Echo 62901-21130

GASKET, REED VALVE
(Superseded to V109000100)

$1.99

$

In Stock, Qty 5

0

7

Echo 11022-04120

SCREW - 4X12
(Superseded to V202000340)

$1.49

$

Usually ships in 2-4 days

0

8

Echo 62600-31010

STARTER ASSY
(Superseded to 62600-31011)

$38.99

$

Usually ships in 2-4 days

0

9

Echo 62600-31110

CASE, STARTER
(Superseded to 62600-31011)

$38.99

$

Usually ships in 2-4 days

0

10

Echo 70030-75120

REEL, ROPE
(Superseded to A506000330)

$9.99

$

In Stock, only 1 left!

0

11

Echo 70030-75130

SPRING, REWIND
(Superseded to A504000100)

$10.99

$

In Stock, Qty 20+

0

12

Echo 62600-31310

SCREW - 5
(Superseded to V253000570)

$3.99

$

In Stock, Qty 15

0

13

Echo 37076-75140

ROPE, STARTER
(Superseded to A509000310)

$5.99

$

Usually ships in 2-4 days

0

14

Echo 20010-75190

GRIP, STARTER
(Superseded to A511000160)

$6.99

$

In Stock, Qty 7

0

15

Echo 20010-75210

RETAINER, ROPE
(Superseded to A522000040)

$2.49

$

In Stock, only 2 left!

0

16

Echo 11060-05202

SCREW - 5X20
(Superseded to V203001010)

$1.99

$

In Stock, only 2 left!

0

17

Echo 62600-32110

COVER, ENGINE
(Superseded to A160001751)

$32.99

$

Usually ships in 2-4 days

0

18

Echo 62901-32311

GROMMET
(Superseded to 62901-32312)

$2.99

$

In Stock, only 2 left!

0

19

Echo 11060-05141

SCREW - 5X14
(Superseded to V203001020)

$1.99

$

Usually ships in 2-4 days

0

20

Echo 62600-33310

ADAPTOR, GEAR CASE
(Superseded to A570000250)

$24.99

$

Usually ships in 2-4 days

0

21

Echo 01020-04120

SCREW - 4X12
(Superseded to 90010504012)

$1.49

$

Usually ships in 2-4 days

0

22

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 10

0
