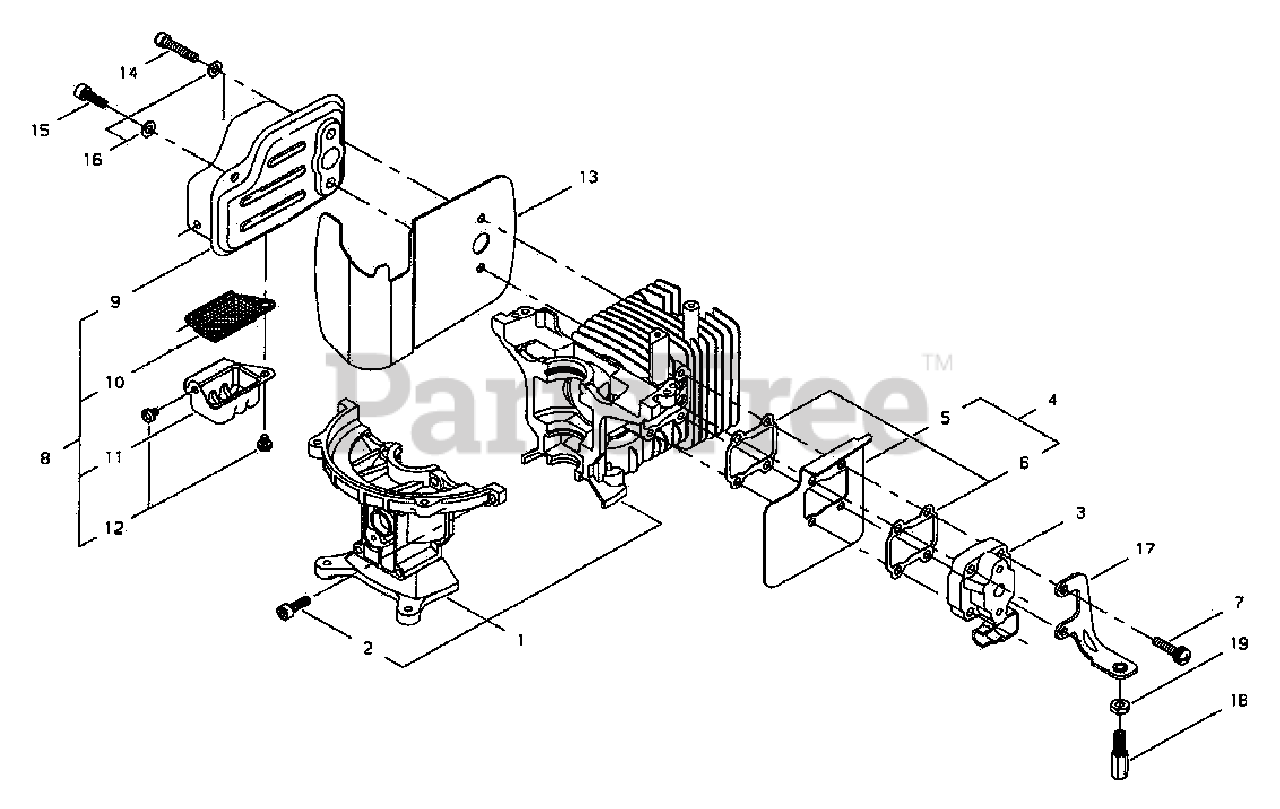

HT 2510 - Shindaiwa Hedge Trimmer, Single-Sided Cylinder, Muffler Parts Diagram

Hedge Trimmer, Single-Sided

Cylinder, Muffler Parts Diagram

  • Title

1

Echo 60600-98350

CYLINDER BLOCK SET
(Superseded to 60600-98351)

$219.99

$

Usually ships in 2-4 days

0

2

Echo 01020-05160

BOLT 5×16
(Superseded to 90010505016)

$1.49

$

Usually ships in 2-4 days

0

3

Echo 62902-12310

INSULATOR WITH REED VALVE
(Superseded to A024000050)

$51.99

$

Usually ships in 2-4 days

0

4

Echo 62902-12320

SHIELD ASSY, INTAKE HEAT
(Superseded to A209000250)

$6.99

$

Usually ships in 2-4 days

0

5

Echo 62901-12320

HEAT SHIELD, INTAKE
(Superseded to A209000260)

$6.49

$

Usually ships in 2-4 days

0

6

Echo 62901-12220

GASKET, EXHAUST
(Superseded to V103001130)

$1.99

$

In Stock, Qty 8

0

7

Echo 11206-05225

SCREW M5×22
(Superseded to 9158205022)

$1.49

$

Usually ships in 2-4 days

0

8

Echo 62902-15010

MUFFLER ASSY

$86.99

$

In Stock, only 1 left!

0

9

Echo 62902-15110

MUFFLER
(Superseded to 62907-15011)

$113.99

$

Usually ships in 2-4 days

0

10

Echo 62902-15130

SCREEN, SPARK ARRESTER
(Superseded to A310000390)

$3.99

$

Usually ships in 2-4 days

0

11

Echo 62902-15160

GUIDE, EXHAUST
(Superseded to 62902-15161)

$6.99

$

Usually ships in 2-4 days

0

12

Echo 11204-04060

SCREW M4×6
(Superseded to 9157204006)

$1.49

$

Usually ships in 2-4 days

0

13

Echo 62901-15210

HEAT SHIELD, EXHAUST
(Superseded to V104001431)

$10.99

$

Usually ships in 2-4 days

0

14

Echo 62901-15310

BOLT M5×25
(Superseded to V203001000)

$1.99

$

In Stock, only 4 left!

0

15

Echo 01020-05160

BOLT 5×16
(Superseded to 90010505016)

$1.49

$

Usually ships in 2-4 days

0

16

Echo 01610-05080

WASHER, FLAT 5.5×10×0.8
(Superseded to 90060000005)

$0.99

$

In Stock, Qty 20+

0

17

Echo 62600-83310

BRACKET, THROTTLE CABLE
(Superseded to V152002310)

$3.49

$

Usually ships in 2-4 days

0

18

Echo 62902-83310

ADJUSTER, THROTTLE CABLE
(Superseded to C486000030)

$19.99

$

Usually ships in 2-4 days

0

19

Echo 01501-06048

NUT, ADJUSTER LOCK M6
(Superseded to 9201806000)

$1.49

$

Usually ships in 2-4 days

0
