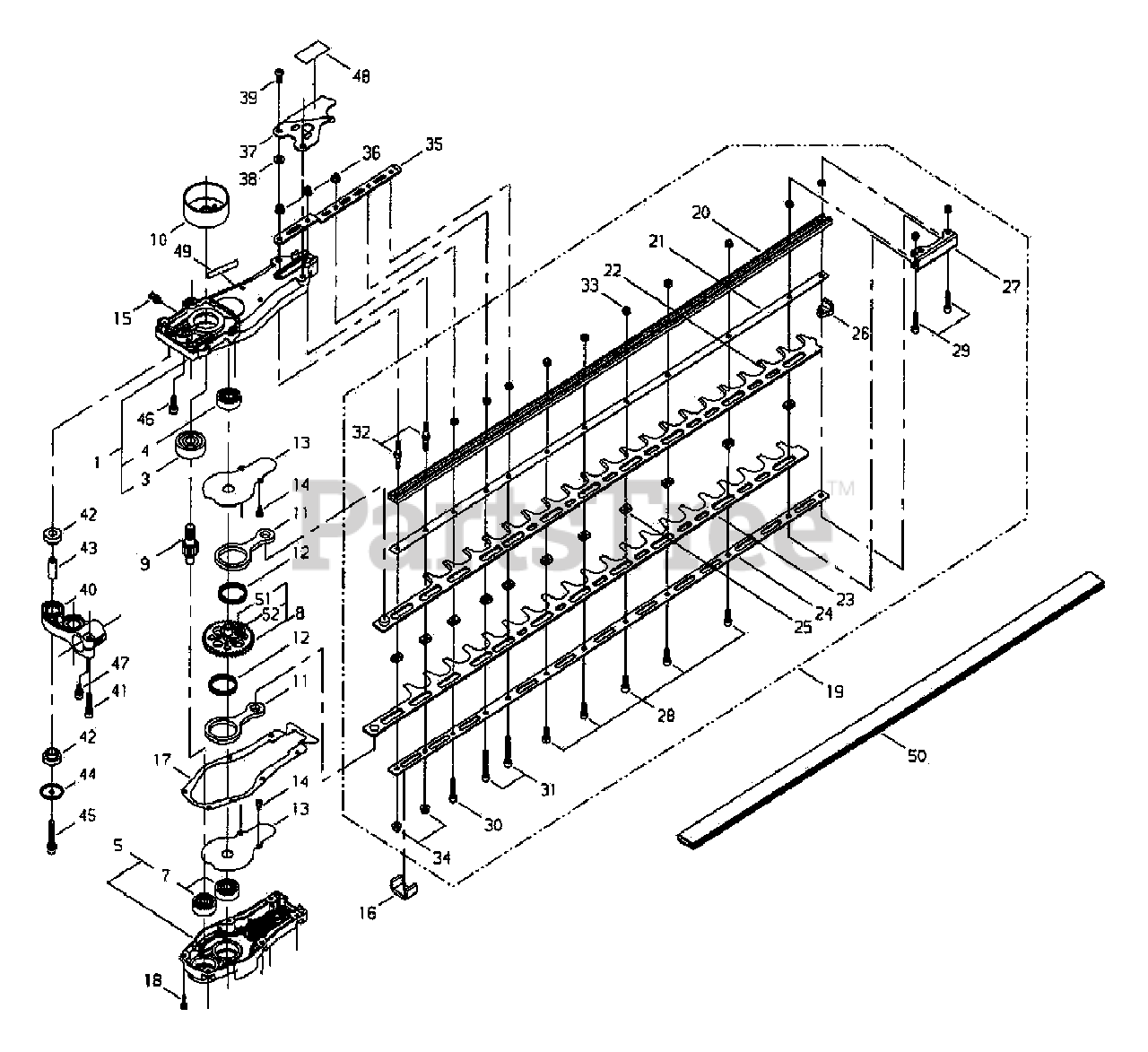

HT 2510 - Shindaiwa Hedge Trimmer, Single-Sided Gearcase, Cutter - 30" Parts Diagram

Hedge Trimmer, Single-Sided

Gearcase, Cutter - 30" Parts Diagram

  • Title

1

Echo 63600-61010

GEAR CASE ASSY
(Superseded to P021028700)

$123.99

$

Usually ships in 2-4 days

0

3

Echo 02006-06301

BEARING, BALL - 6301DDU
(Superseded to 9400206301)

$16.99

$

Usually ships in 2-4 days

0

4

Echo 02002-06200

BEARING, BALL - 6200ZZ
(Superseded to 9404506200)

$12.99

$

Usually ships in 2-4 days

0

5

Echo 63600-61020

GEAR CASE COVER ASSY
(Superseded to P021028710)

$76.99

$

Usually ships in 2-4 days

0

7

Echo 02002-06200

BEARING, BALL - 6200ZZ
(Superseded to 9404506200)

$12.99

$

Usually ships in 2-4 days

0

8

Echo 63600-61030

CAM GEAR ASSY
(Superseded to V060000060)

$96.99

$

Usually ships in 2-4 days

0

51

Echo 63600-61320

GEAR - SPUR
(Superseded to V203001030)

$1.49

$

In Stock, Qty 16

0

52

Echo 63600-61140

CAM
(Superseded to C533000130)

$26.99

$

Usually ships in 2-4 days

0

9

Echo 63600-61150

GEAR - PINION
(Superseded to V655000030)

$34.99

$

Usually ships in 2-4 days

0

10

Echo 20870-61420

DRUM, CLUTCH
(Superseded to A556000930)

$26.99

$

In Stock, only 1 left!

0

11

Echo 63600-61170

ROD, CONNECTING
(Superseded to C532000200)

$43.99

$

In Stock, only 2 left!

0

12

Echo 63600-61330

BEARING, NEEDLE - 30
(Superseded to V572000000)

$18.99

$

Usually ships in 2-4 days

0

13

Echo 63600-61340

PLATE, GEAR CASE
(Superseded to C603000250)

$5.99

$

In Stock, only 1 left!

0

14

Echo 01020-04080

SCREW - 4X8
(Superseded to 90010504008)

$0.99

$

In Stock, Qty 6

0

15

Echo 20870-61640

FITTING, GREASE
(Superseded to V187000080)

$1.99

$

In Stock, Qty 5

0

16

Echo 63600-61350

SEAL, FELT
(Superseded to V541000200)

$3.99

$

In Stock, only 3 left!

0

17

Echo 63600-61360

GASKET, GEAR CASE
(Superseded to V110000100)

$5.49

$

Usually ships in 2-4 days

0

18

Echo 01020-04140

SCREW - 4X14
(Superseded to 90010504014)

$1.49

$

In Stock, Qty 20+

0

19

Echo 63600-62011

BLADE KIT - 30" (76cm)
(Superseded to 63600-62012)

$364.99

$

Usually ships in 2-4 days

0

20

Echo 18501-70004

SUPPORT, BLADE - 30" (76cm)
(Superseded to X425000510)

$41.99

$

Usually ships in 2-4 days

0

21

Echo 63600-62310

PLATE - UPPER
(Superseded to X425000520)

$12.99

$

Usually ships in 2-4 days

0

22

Echo 18500-70006

BLADE - 30" (76mm) -- UPPER
(Superseded to X411000800)

$114.99

$

Usually ships in 2-4 days

0

23

Echo 18500-70007

BLADE - 40" (101cm) HD -- LOWER
(Superseded to X411000810)

$114.99

$

Usually ships in 2-4 days

0

24

Echo 63600-62320

PLATE - LOWER
(Superseded to X425000530)

$28.99

$

Usually ships in 2-4 days

0

25

Echo 63600-62330

SPACER
(Superseded to 63600-62331)

$1.99

$

In Stock, Qty 10

0

26

Echo 63600-62340

BLOCK
(Superseded to V376001360)

$2.99

$

In Stock, only 3 left!

0

27

Echo 63600-62350

PLATE, GUIDE
(Superseded to V152002280)

$3.49

$

In Stock, only 1 left!

0

28

Echo 01020-05140

SCREW - 5X14
(Superseded to 11230-05140)

$1.49

$

Usually ships in 2-4 days

0

29

Echo 01020-05200

SCREW - 5X20
(Superseded to 90010505020)

$1.49

$

In Stock, Qty 20+

0

30

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 11

0

31

Echo 63600-62370

STUD - 5
(Superseded to V223000020)

$1.99

$

In Stock, Qty 20+

0

32

Echo 20050-31310

SCREW - 5X35
(Superseded to V203000970)

$1.49

$

Usually ships in 2-4 days

0

33

Echo 72935-61240

LOCKNUT - 5
(Superseded to V263000240)

$1.49

$

Usually ships in 2-4 days

0

34

Echo 11525-05231

NUT - 5
(Superseded to V263000250)

$1.99

$

In Stock, Qty 20+

0

35

Echo 63600-62361

PLATE, ANGLE
(Superseded to V152002290)

$5.99

$

Usually ships in 2-4 days

0

36

Echo 11525-05231

NUT - 5
(Superseded to V263000250)

$1.99

$

In Stock, Qty 20+

0

37

Echo 63600-63310

PROTECTOR
(Superseded to V152002300)

$10.99

$

Usually ships in 2-4 days

0

38

Echo 63600-63320

WASHER - 5
(Superseded to V323000110)

$1.99

$

Usually ships in 2-4 days

0

39

Echo 11210-06120

SCREW - 6X12
(Superseded to 9114206012)

$1.49

$

In Stock, Qty 9

0

40

Echo 20870-65413

MOUNT, HANDLE
(Superseded to C415000080)

$20.99

$

In Stock, only 1 left!

0

41

Echo 11023-05250

SCREW - 5X25
(Superseded to V203000560)

$1.99

$

In Stock, only 3 left!

0

42

Echo 20870-65421

CUSHION
(Superseded to V420002580)

$1.49

$

In Stock, only 3 left!

0

43

Echo 15401-10200

COLLAR - 6
(Superseded to V354000300)

$1.99

$

In Stock, Qty 5

0

44

Echo 20870-65430

COVER, CUSHION
(Superseded to V304000220)

$1.99

$

In Stock, only 3 left!

0

45

Echo 11020-06350

SCREW - 6X35
(Superseded to V204000530)

$1.99

$

In Stock, Qty 12

0

46

Echo 01020-06160

SCREW - 6X16
(Superseded to 90010506016)

$1.49

$

In Stock, Qty 7

0

47

Echo 11022-05120

SCREW - 5X12
(Superseded to V203000700)

$1.49

$

In Stock, Qty 20+

0

48

Echo 19402-00110

LABEL - WARNING
(Superseded to X505003400)

$1.99

$

Usually ships in 2-4 days

0

49

Echo 19402-00134

LABEL - LUBRICATION
(Superseded to X505003390)

$1.99

$

Usually ships in 2-4 days

0

50

Echo 19601-01602

COVER, BLADE - 30" (76cm)
(Superseded to X495000310)

$6.99

$

In Stock, only 1 left!

0
