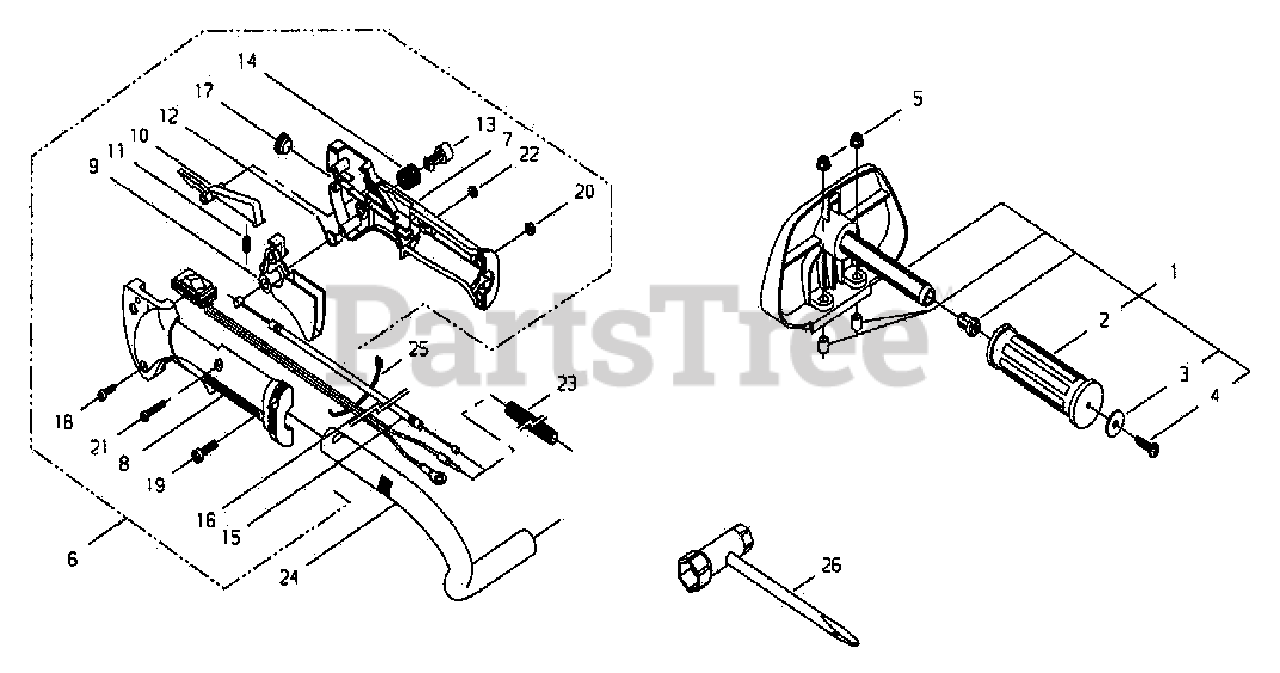

HT 2510 - Shindaiwa Hedge Trimmer, Single-Sided Handle, Throttle Lever Parts Diagram

Hedge Trimmer, Single-Sided

Handle, Throttle Lever Parts Diagram

  • Title

1

Echo 20870-64104

HANDLE ASSY, FRONT
(Superseded to C040000390)

$33.99

$

Usually ships in 2-4 days

0

2

Echo 20870-64114

HANDLE, FRONT
(Superseded to C400000840)

$20.99

$

Usually ships in 2-4 days

0

3

Echo 15401-20011

WASHER 5 MM
(Superseded to V323000120)

$1.49

$

Usually ships in 2-4 days

0

4

Echo 22160-32220

SCREW 5×20
(Superseded to V253000550)

$1.49

$

In Stock, Qty 5

0

5

Echo 11525-05231

NUT M5
(Superseded to V263000250)

$1.99

$

In Stock, only 3 left!

0

6

Echo 64600-65010

REAR HANDLE ASSY
(Superseded to 64600-65011)

$117.99

$

In Stock, only 1 left!

0

7

Echo 70871-65111

CONTROL HANDLE - RIGHT
(Superseded to P021035600)

$48.99

$

Usually ships in 2-4 days

0

8

Echo 70871-65121

CONTROL HANDLE - LEFT
(Superseded to P021035600)

$48.99

$

Usually ships in 2-4 days

0

9

Echo 70871-65130

TRIGGER, THROTTLE
(Superseded to C450000580)

$4.99

$

In Stock, only 1 left!

0

10

Echo 70871-65140

LOCKOUT, THROTTLE
(Superseded to C460000240)

$2.49

$

In Stock, only 1 left!

0

11

Echo 70871-65150

SPRING, COMPRESSION
(Superseded to V450001020)

$1.49

$

In Stock, Qty 8

0

12

Echo 70871-65160

SPRING, TORSION
(Superseded to V452000690)

$1.49

$

In Stock, Qty 9

0

13

Echo 70871-65170

BUTTON, THROTTLE LOCK
(Superseded to C461000080)

$2.49

$

Usually ships in 2-4 days

0

14

Echo 70871-65180

SPRING, COMPRESSION
(Superseded to V450001010)

$1.49

$

In Stock, only 3 left!

0

15

Echo 64600-65310

CABLE, THROTTLE
(Superseded to V430003170)

$28.99

$

Usually ships in 2-4 days

0

16

Echo 70871-65202

SWITCH ASSY, ON-OFF
(Superseded to A440001530)

$29.99

$

Usually ships in 2-4 days

0

17

Echo 22150-33630

PLUG, RUBBER
(Superseded to V162000410)

$2.99

$

Usually ships in 2-4 days

0

18

Echo 70871-65311

SCREW, TAPPING 4×16
(Superseded to V252000360)

$1.49

$

Usually ships in 2-4 days

0

19

Echo 70871-65320

SCREW M5×20
(Superseded to V253000580)

$1.49

$

In Stock, Qty 10

0

20

Echo 01501-05030

NUT M5
(Superseded to 9201705000)

$1.49

$

In Stock, Qty 10

0

21

Echo 70871-65331

SCREW M4×23
(Superseded to V252000370)

$1.99

$

In Stock, Qty 6

0

22

Echo 70871-65340

NUT M4
(Superseded to V262000100)

$1.49

$

In Stock, Qty 7

0

23

Echo 64600-65320

TUBE, FLEXIBLE

$

$

Not available

24

Echo 20870-65311

HANDLE, REAR
(Superseded to C410000700)

$45.99

$

Usually ships in 2-4 days

0

25

Echo 15210-12305

STRAP, TIE
(Superseded to V495002400)

$1.49

$

Usually ships in 2-4 days

0

26

Echo 22580-91180

T-WRENCH 16×13
(Superseded to X602000160)

$4.49

$

In Stock, Qty 6

0
