HT 254 - Shindaiwa Hedge Trimmer, Single-Sided (SN: T11112001001 - T11112999999) Throttle Control Parts Diagram

Hedge Trimmer, Single-Sided

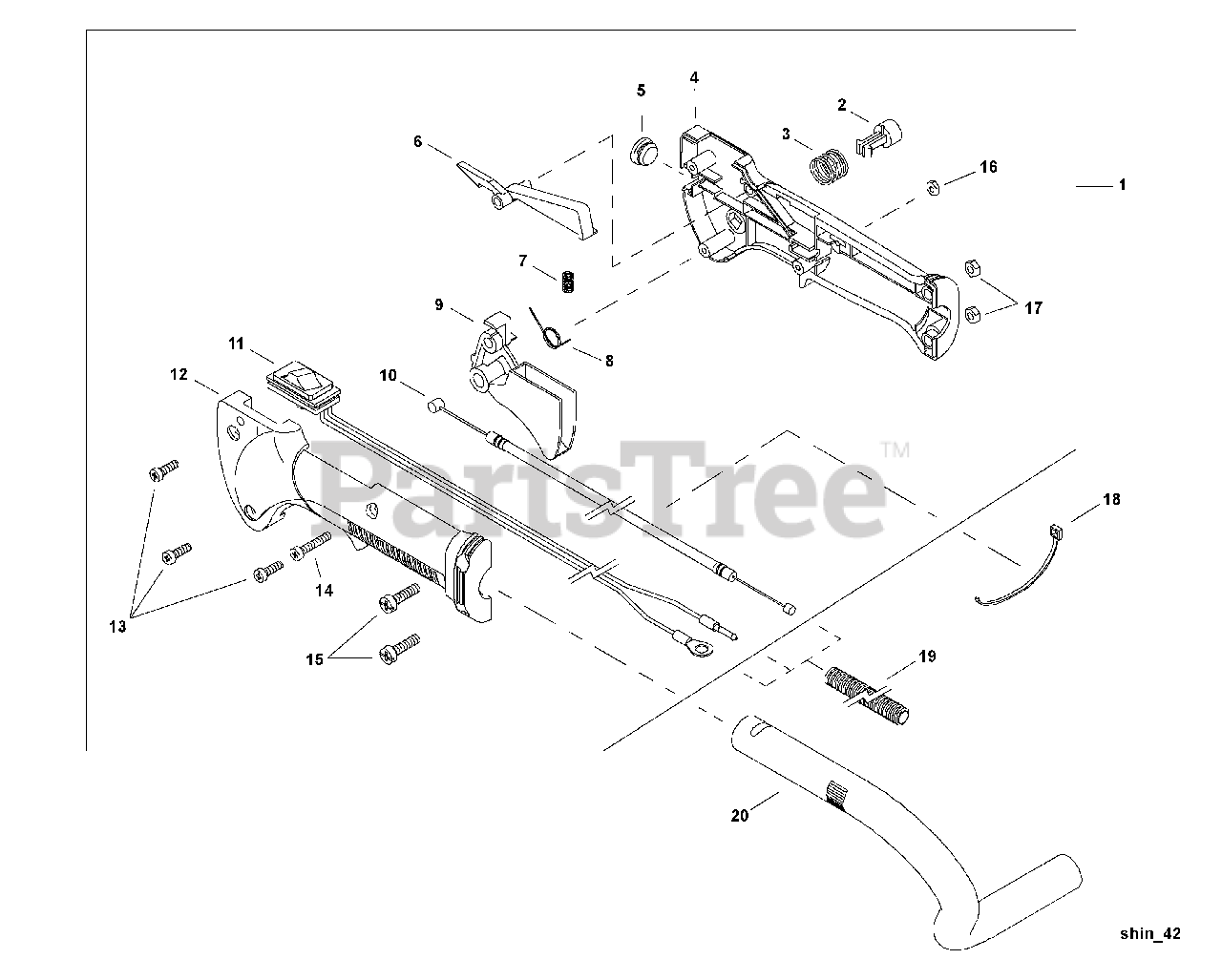

Throttle Control Parts Diagram

  • Title

1

Echo C041000540

THROTTLE CONTROL ASSY
(Superseded to C041000543)

Note: INCLUDES ITEMS 2-17

$148.99

$

Usually ships in 2-4 days

0

2

Echo C461000080

BUTTON, THROTTLE LOCK

$2.49

$

Usually ships in 2-4 days

0

3

Echo V450001010

SPRING, COMPRESSION

$1.49

$

In Stock, only 3 left!

0

4

Echo C412000510

CONTROL HANDLE - RIGHT

$24.99

$

Usually ships in 2-4 days

0

5

Echo V162000410

PLUG, RUBBER

$2.99

$

Usually ships in 2-4 days

0

6

Echo C460000240

LOCKOUT, THROTTLE
(Superseded to C460000241)

$2.49

$

In Stock, only 1 left!

0

7

Echo V450001020

SPRING, COMPRESSION

$1.49

$

In Stock, Qty 8

0

8

Echo V452000690

SPRING, TORSION

$1.49

$

In Stock, Qty 9

0

9

Echo C450000580

TRIGGER, THROTTLE
(Superseded to C450000581)

$4.99

$

In Stock, only 1 left!

0

10

Echo V430003420

CABLE, THROTTLE

$16.99

$

Usually ships in 2-4 days

0

11

Echo A440001530

SWITCH ASSY, ON-OFF

$29.99

$

Usually ships in 2-4 days

0

12

Echo C412000520

CONTROL HANDLE - LEFT
(Superseded to P021044940)

$25.99

$

In Stock, only 2 left!

0

13

Echo V252000360

SCREW, TAPPING 4×16

$1.49

$

Usually ships in 2-4 days

0

14

Echo V252000370

SCREW M4×23

$1.99

$

In Stock, Qty 6

0

15

Echo V253000580

SCREW M5×20

$1.49

$

In Stock, Qty 10

0

16

Echo V262000100

NUT M4

$1.49

$

In Stock, Qty 7

0

17

Echo 9201705000

NUT M5

$1.49

$

In Stock, Qty 10

0

18

Echo V495002400

STRAP, TIE

$1.49

$

Usually ships in 2-4 days

0

19

Echo V475005080

TUBE, FLEXIBLE L= 150

$1.99

$

Usually ships in 2-4 days

0

20

Echo C410000700

HANDLE, REAR

$45.99

$

Usually ships in 2-4 days

0
