HT 254 - Shindaiwa Hedge Trimmer, Single-Sided (SN: T11112001001 - T11112999999) Valve Train Parts Diagram

Hedge Trimmer, Single-Sided

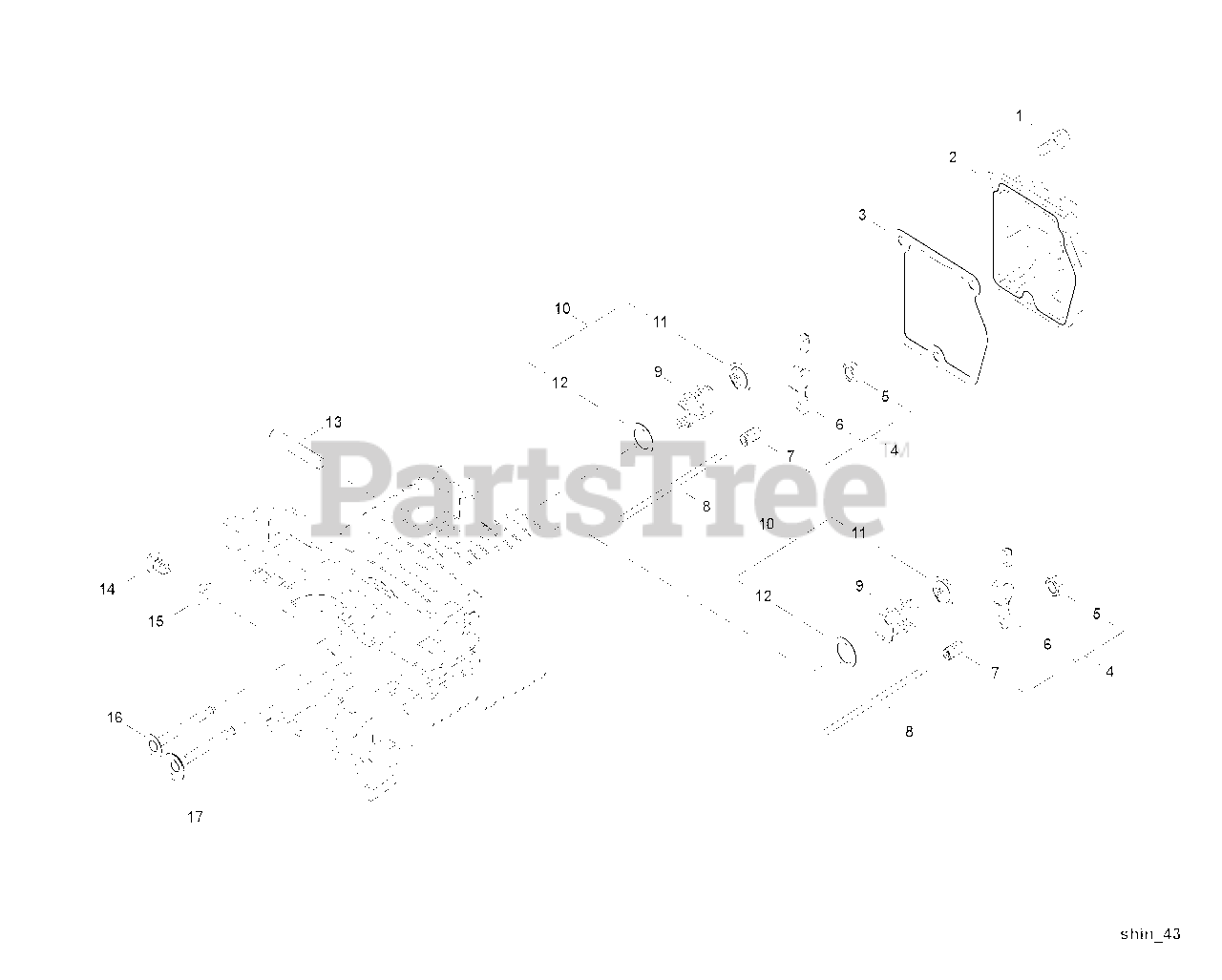

Valve Train Parts Diagram

  • Title

1

Echo V202000350

BOLT M4×14

$1.49

$

In Stock, Qty 5

0

2

Echo A137000020

COVER, ROCKER ARM

$11.99

$

Usually ships in 2-4 days

0

3

Echo V109000120

GASKET, ROCKER ARM

$1.99

$

In Stock, Qty 6

0

4

Echo A610000050

ARM ASSY, ROCKER

Note: INCLUDES ITEMS 5-7

$36.99

$

Usually ships in 2-4 days

0

5

Echo V263000230

NUT, ADJUSTER LOCK 5

$1.49

$

Usually ships in 2-4 days

0

6

Echo A610000060

ARM, ROCKER

$33.99

$

Usually ships in 2-4 days

0

7

Echo A613000010

SCREW, ADJUSTER

$3.49

$

Usually ships in 2-4 days

0

8

Echo A607000010

PUSHROD
(Superseded to A607000011)

$1.99

$

In Stock, only 4 left!

0

9

Echo A604000010

SPRING, VALVE

$1.99

$

Usually ships in 2-4 days

0

10

Echo P021027590

RETAINER SET, VALVE

Note: Includes ITEMS 11-12

$22.99

$

Usually ships in 2-4 days

0

11

Echo A606000040

RETAINER, VALVE

$9.49

$

In Stock, only 2 left!

0

12

Echo V392000030

WASHER, VALVE 9

$1.49

$

Usually ships in 2-4 days

0

13

Echo V623000040

SHAFT, ROCKER ARM Ø5×31.8 MM

$1.99

$

Usually ships in 2-4 days

0

14

Echo V253000540

SCREW M5

$1.49

$

Usually ships in 2-4 days

0

15

Echo V303000120

WASHER Ø10×Ø5.5×2

$1.49

$

Usually ships in 2-4 days

0

16

Echo A603000050

VALVE, EXHAUST

$23.99

$

Usually ships in 2-4 days

0

17

Echo A603000040

VALVE, INTAKE

$18.99

$

Usually ships in 2-4 days

0
