HT 3000 - Swisher Hedge Trimmer Fuel Tank Parts Diagram

Hedge Trimmer

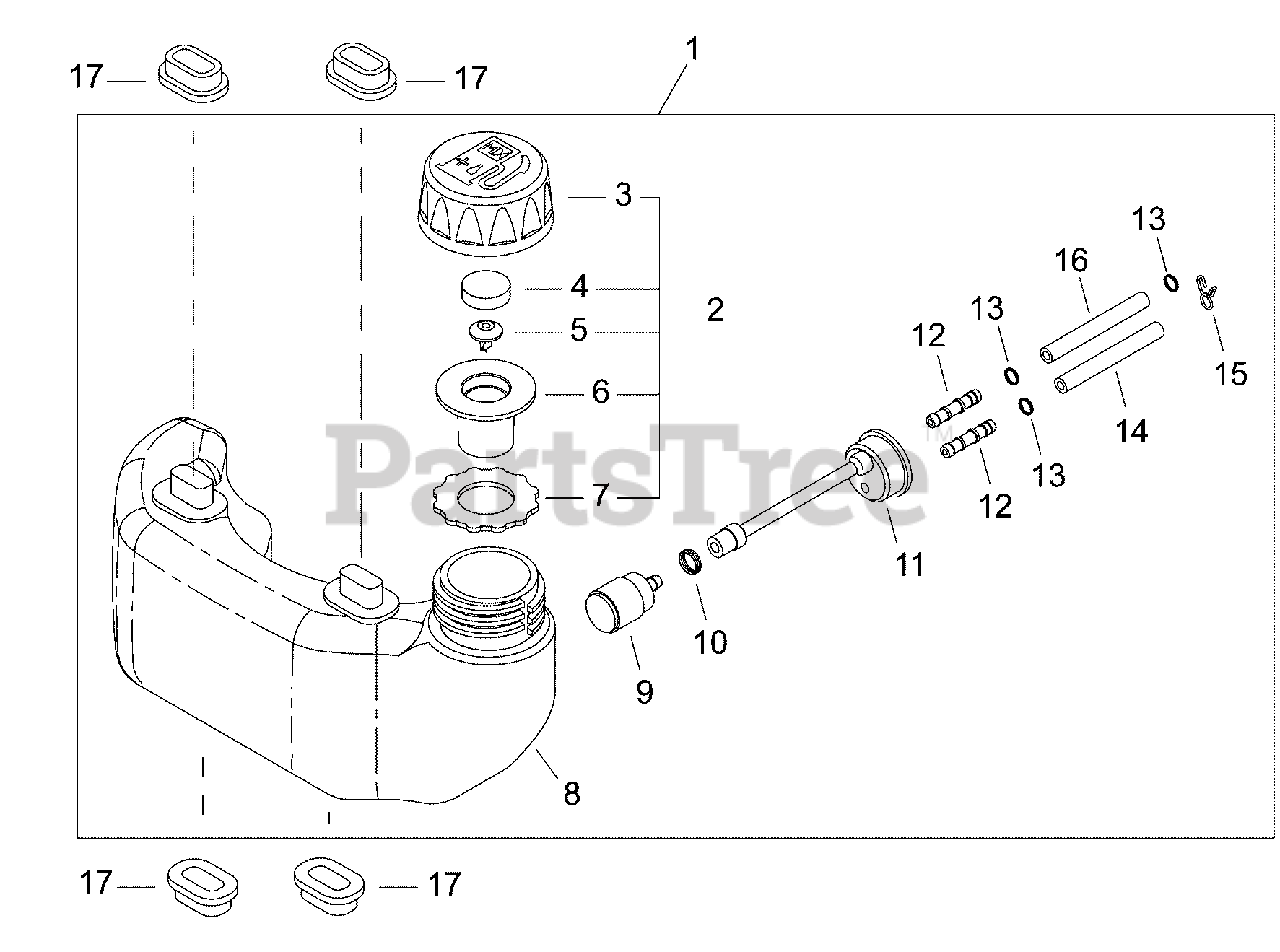

Fuel Tank Parts Diagram

  • Title

1

Echo 62603-85310

FUEL TANK ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 20870-85151

CAP ASSY
(Superseded to A033000110)

$20.99

$

In Stock, only 2 left!

0

3

Echo 20870-85310

CAP ASSY
(Superseded to 20870-85151)

$20.99

$

In Stock, only 2 left!

0

4

Echo 20870-85210

COVER, VENT
(Superseded to V540000280)

$1.49

$

Usually ships in 2-4 days

0

5

Echo 20870-85320

VENT, FUEL TANK
(Superseded to E263000040)

$12.99

$

Usually ships in 2-4 days

0

6

Echo 20870-85170

HOLDER, VENT
(Superseded to P021035110)

$4.99

$

Usually ships in 2-4 days

0

7

Echo 20870-85160

GASKET, CAP
(Superseded to V107000050)

$1.99

$

Usually ships in 2-4 days

0

8

Echo 62603-85110

TANK, FUEL
(Superseded to A350001710)

$42.99

$

In Stock, only 2 left!

0

9

Echo 20016-85400

FILTER, FUEL
(Superseded to A369000070)

$8.99

$

In Stock, Qty 20+

0

10

Echo 20000-85350

RING, RETAINING
(Superseded to V490000610)

$1.49

$

In Stock, Qty 19

0

11

Echo 20870-85121

FUEL PIPE ASSY
(Superseded to V470001190)

$9.99

$

In Stock, Qty 15

0

12

Echo 72933-85620

CONNECTOR, PIPE
(Superseded to V186000210)

$2.49

$

In Stock, Qty 5

0

13

Echo 20020-85540

RING, RETAINING - 6
(Superseded to V490000500)

$1.49

$

In Stock, Qty 20+

0

14

Echo 20112-85361

PIPE - RETURN
(Superseded to V471002740)

$1.99

$

In Stock, Qty 8

0

15

Echo 37013-85310

CLIP - SPRING
(Superseded to V490000510)

$1.49

$

In Stock, Qty 20+

0

16

Echo 20110-83311

PIPE
(Superseded to V471002730)

$1.49

$

In Stock, only 2 left!

0

17

Echo 62901-85220

CUSHION, FUEL TANK
(Superseded to V420002220)

$1.49

$

In Stock, Qty 20+

0
