HT 3000 - Swisher Hedge Trimmer Gearcase, Cutters Parts Diagram

Hedge Trimmer

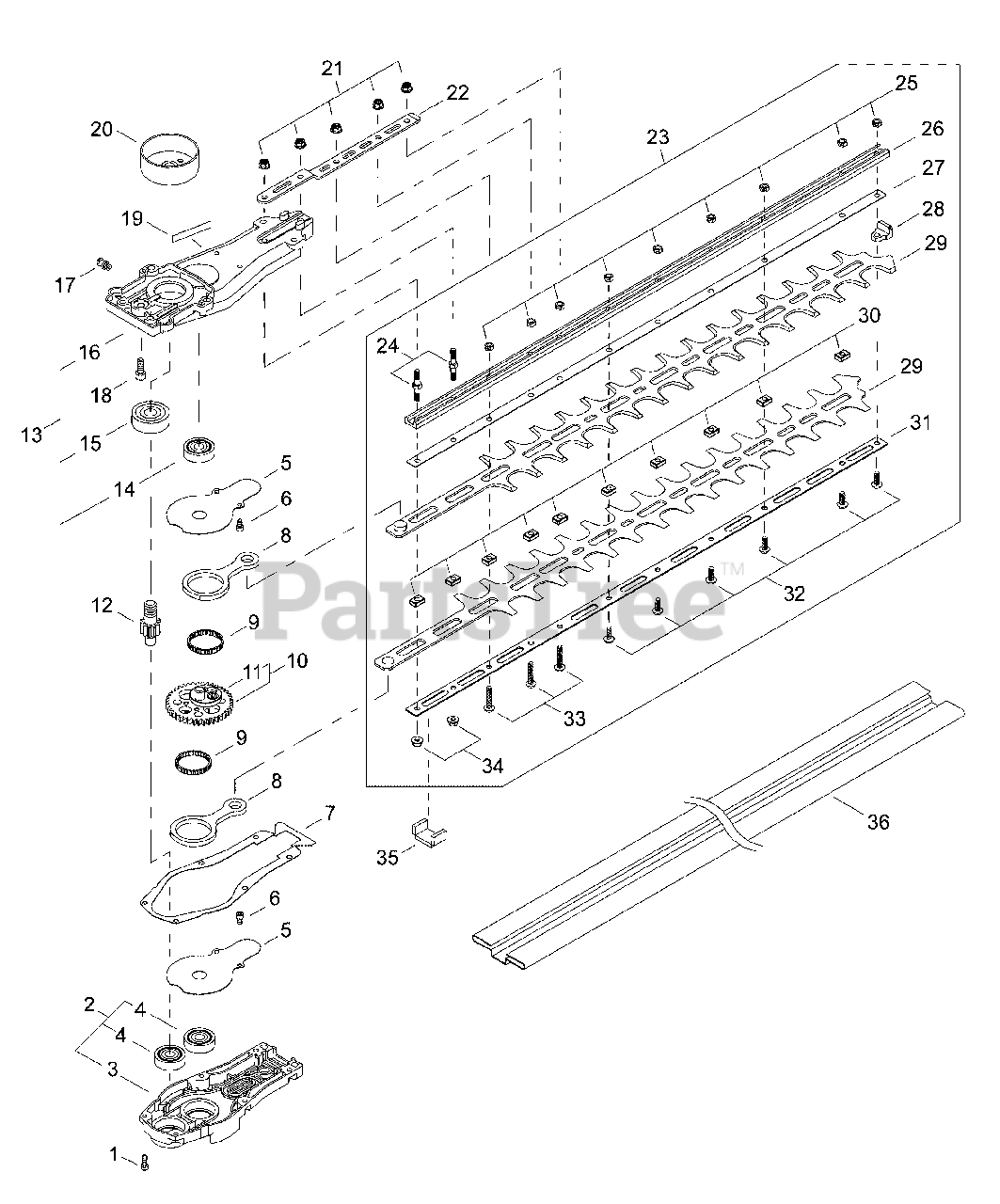

Gearcase, Cutters Parts Diagram

  • Title

1

Echo 01020-04140

SCREW - 4X14
(Superseded to 90010504014)

$1.49

$

In Stock, Qty 20+

0

2

Echo 63600-61020

GEAR CASE COVER ASSY
(Superseded to P021028710)

$71.99

$

Usually ships in 2-4 days

0

3

Echo 63600-61120

CASE, GEAR - LOWER
(Superseded to Discontinued)

$

$

Not available

4

Echo 02002-06200

BEARING, BALL - 6200ZZ
(Superseded to 9404506200)

$11.99

$

Usually ships in 2-4 days

0

5

Echo 63600-61340

PLATE, GEAR CASE
(Superseded to C603000250)

$5.49

$

In Stock, only 1 left!

0

6

Echo 01020-04080

SCREW - 4X8
(Superseded to 90010504008)

$0.99

$

In Stock, Qty 6

0

7

Echo 63600-61360

GASKET, GEAR CASE
(Superseded to V110000100)

$4.99

$

Usually ships in 2-4 days

0

8

Echo 63600-61170

ROD, CONNECTING
(Superseded to C532000200)

$40.99

$

In Stock, only 2 left!

0

9

Echo 63600-61330

BEARING, NEEDLE - 30
(Superseded to V572000000)

$16.99

$

In Stock, only 2 left!

0

10

Echo 63600-61030

CAM GEAR ASSY
(Superseded to V060000060)

$89.99

$

Usually ships in 2-4 days

0

11

Echo 63600-61320

GEAR - SPUR
(Superseded to V203001030)

$1.49

$

In Stock, Qty 16

0

12

Echo 63600-61150

GEAR - PINION
(Superseded to V655000030)

$32.99

$

Usually ships in 2-4 days

0

13

Echo 63600-61010

GEAR CASE ASSY
(Superseded to P021028700)

$114.99

$

Usually ships in 2-4 days

0

14

Echo 02006-06301

BEARING, BALL - 6301DDU
(Superseded to 9400206301)

$15.99

$

Usually ships in 2-4 days

0

15

Echo 02002-06200

BEARING, BALL - 6200ZZ
(Superseded to 9404506200)

$11.99

$

Usually ships in 2-4 days

0

16

Echo 63600-61110

CASE, GEAR
(Superseded to C531000920)

$301.99

$

Usually ships in 2-4 days

0

17

Echo 20870-61640

FITTING, GREASE
(Superseded to V187000080)

$1.99

$

In Stock, only 4 left!

0

18

Echo 01020-06160

SCREW - 6X16
(Superseded to 90010506016)

$1.49

$

In Stock, Qty 8

0

19

Echo 19402-00134

LABEL - LUBRICATION
(Superseded to X505003390)

$1.99

$

Usually ships in 2-4 days

0

20

Echo 20870-61420

DRUM, CLUTCH
(Superseded to A556000930)

$24.99

$

Usually ships in 2-4 days

0

21

Echo 11525-05231

NUT - 5
(Superseded to V263000250)

$1.99

$

In Stock, Qty 20+

0

22

Echo 63600-62361

PLATE, ANGLE
(Superseded to V152002290)

$5.49

$

Usually ships in 2-4 days

0

23

Echo 63602-62013

BLADE KIT - 24" (60cm)
(Superseded to X041000170)

$298.99

$

Usually ships in 2-4 days

0

24

Echo 63600-62370

STUD - 5
(Superseded to V223000020)

$1.99

$

In Stock, Qty 20+

0

25

Echo 72935-61240

LOCKNUT - 5
(Superseded to V263000240)

$1.49

$

Usually ships in 2-4 days

0

26

Echo 18501-60006

SUPPORT, BLADE - 24" (60cm)
(Superseded to X425000660)

$36.99

$

Usually ships in 2-4 days

0

27

Echo 63602-62310

PLATE - UPPER
(Superseded to X425000670)

$10.99

$

In Stock, only 1 left!

0

28

Echo 63600-62340

BLOCK
(Superseded to V376001360)

$2.49

$

In Stock, only 3 left!

0

29

Echo 18500-60106

BLADE - 24" (60cm)
(Superseded to X411000970)

$128.99

$

In Stock, only 2 left!

0

30

Echo 63600-62331

SPACER
(Superseded to V376001350)

$1.99

$

Usually ships in 2-4 days

0

31

Echo 63602-62320

PLATE - LOWER
(Superseded to X425000680)

$26.99

$

Usually ships in 2-4 days

0

32

Echo 11230-05140

SCREW - 5X14
(Superseded to V203001150)

$1.49

$

Usually ships in 2-4 days

0

33

Echo 11230-05250

SCREW - 5X25
(Superseded to V203001050)

$1.49

$

Usually ships in 2-4 days

0

34

Echo 11525-05231

NUT - 5
(Superseded to V263000250)

$1.99

$

In Stock, Qty 20+

0

35

Echo 63600-61350

SEAL, FELT
(Superseded to V541000200)

$3.99

$

In Stock, only 2 left!

0

36

Echo 19601-01504

COVER, BLADE - 24" (60cm)
(Superseded to X495000340)

$11.99

$

Usually ships in 2-4 days

0
