HT 3000 - Swisher Hedge Trimmer Rear Handle Parts Diagram

Hedge Trimmer

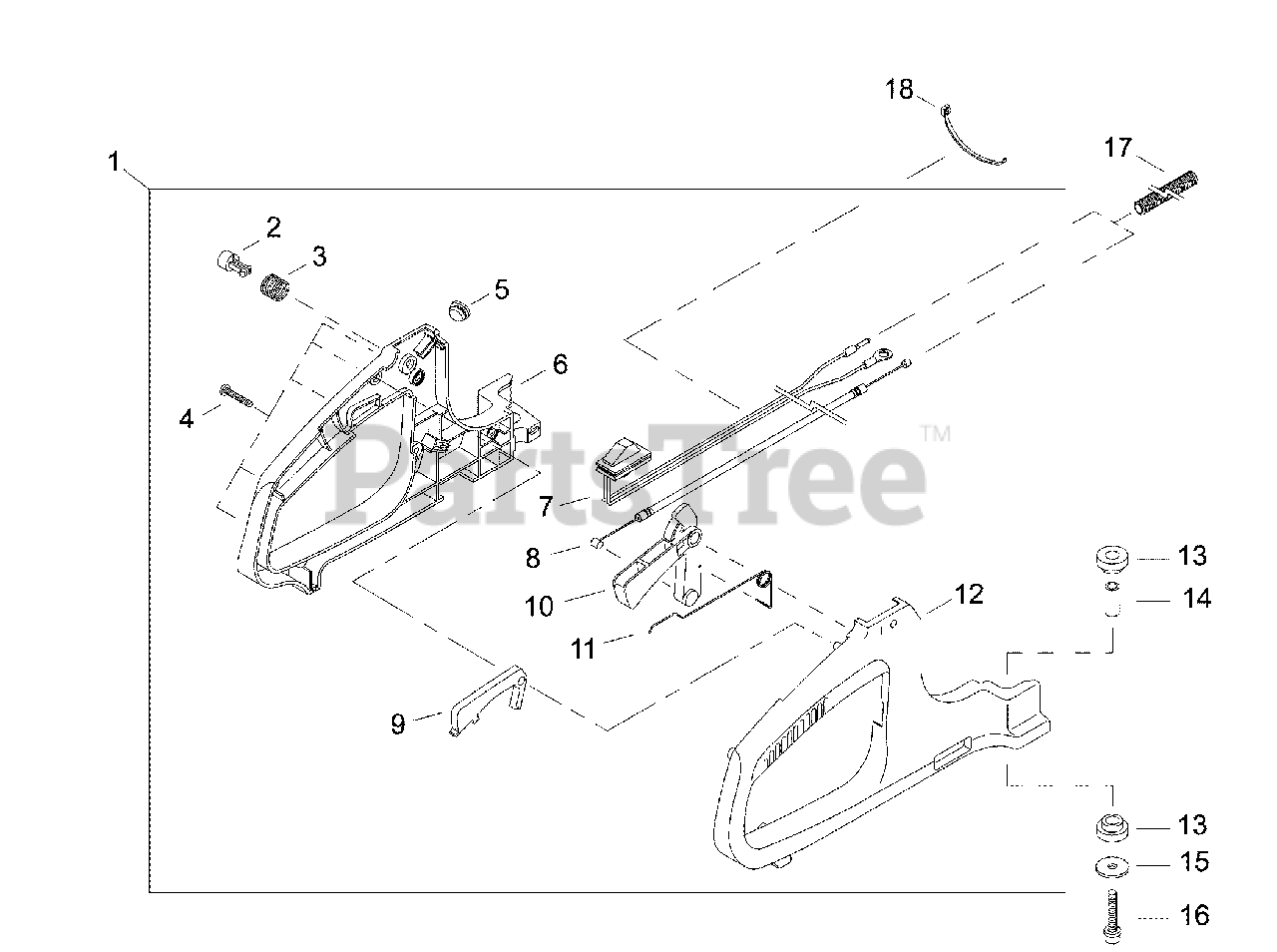

Rear Handle Parts Diagram

  • Title

1

Echo 64601-65010

HANDLE ASSY, REAR
(Superseded to C041000090)

$88.99

$

Usually ships in 2-4 days

0

2

Echo 70871-65170

BUTTON, THROTTLE LOCK
(Superseded to C461000080)

$2.49

$

Usually ships in 2-4 days

0

3

Echo 70871-65180

SPRING, COMPRESSION
(Superseded to V450001010)

$1.49

$

In Stock, only 3 left!

0

4

Echo 62803-65360

SCREW, TAPPING Ø4×18
(Superseded to V252000340)

$1.49

$

Usually ships in 2-4 days

0

5

Echo 22150-33630

PLUG, RUBBER
(Superseded to V162000410)

$2.99

$

Usually ships in 2-4 days

0

6

Echo 62803-65124

CONTROL HANDLE - LEFT
(Superseded to C410000690)

$26.99

$

Usually ships in 2-4 days

0

7

Echo 62803-65332

SWITCH, ON-OFF
(Superseded to A440001520)

$26.99

$

Usually ships in 2-4 days

0

8

Echo 64601-65310

CABLE ASSY, THROTTLE
(Superseded to V430003180)

$27.99

$

Usually ships in 2-4 days

0

9

Echo 62803-65322

LEVER, THROTTLE LOCKOUT
(Superseded to C460000230)

$3.99

$

Usually ships in 2-4 days

0

10

Echo 62803-65312

TRIGGER, THROTTLE
(Superseded to C450000570)

$6.99

$

Usually ships in 2-4 days

0

11

Echo 62803-65350

SPRING, THROTTLE RETURN
(Superseded to V452000680)

$1.49

$

Usually ships in 2-4 days

0

12

Echo 62803-65114

CONTROL HANDLE - RIGHT
(Superseded to C410000680)

$26.99

$

Usually ships in 2-4 days

0

13

Echo 20870-65421

CUSHION
(Superseded to V420002580)

$1.49

$

In Stock, only 3 left!

0

14

Echo 15401-10200

COLLAR 6
(Superseded to V354000300)

$1.99

$

In Stock, Qty 5

0

15

Echo 15401-20008

WASHER Ø23×Ø6.5×2 MM
(Superseded to V304000320)

$1.49

$

Usually ships in 2-4 days

0

16

Echo 11020-06350

BOLT M6×35
(Superseded to V204000530)

$1.99

$

In Stock, Qty 12

0

17

Echo 64600-65320

TUBE, FLEXIBLE

$

$

Not available

18

Echo 15210-12305

STRAP, TIE
(Superseded to V495002400)

$1.49

$

Usually ships in 2-4 days

0
