HT 48 (80082835-00) - Snapper 48V Battery Electric Hedge Trimmer Hedge Trimmer Parts Diagram

48V Battery Electric Hedge Trimmer

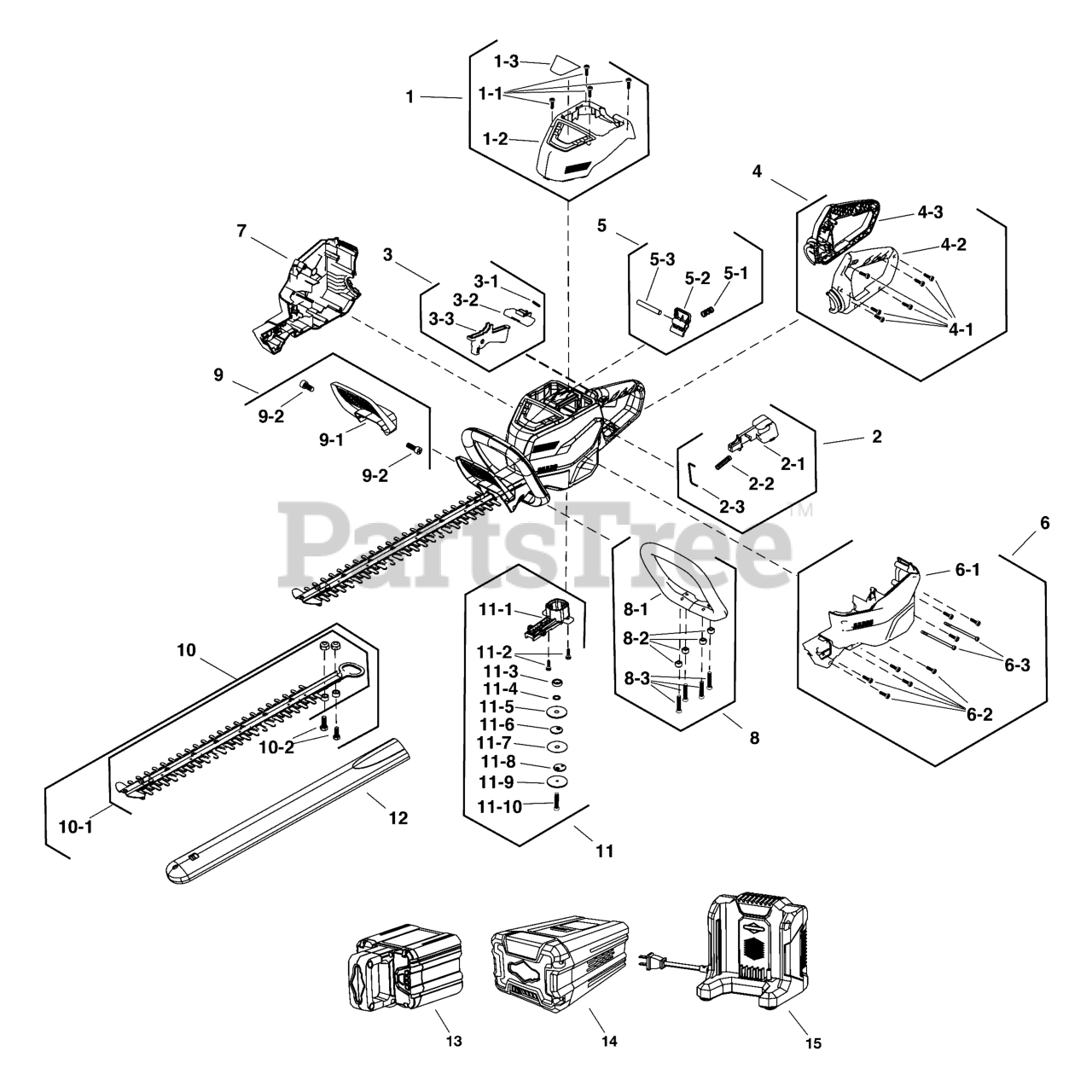

Hedge Trimmer Parts Diagram

  • Title

1

Snapper 84002268

KIT, Top Cover

Note: (Includes Ref. Nos. 1-1 through 1-3)

$

$

Currently unavailable

1-1

SCREW, ST4.2-16

$

$

Not available

1-2

COVER, Top

$

$

Not available

1-3

LABEL, Logo

$

$

Not available

2

Snapper 84004594

KIT, Latch

Note: (Includes Ref. Nos. 2-1 through 2-3)

$5.49

$

Usually ships in 2-12 days

0

2-1

LATCH

$

$

Not available

2-2

SPRING

$

$

Not available

2-3

WIRE FORM

$

$

Not available

3

Snapper 84004595

KIT, Trigger

Note: (Includes Ref. Nos. 3-1 through 3-3)

$3.75

$

Usually ships in 2-12 days

0

3-1

SPRING

$

$

Not available

3-2

BUTTON, Antlock

$

$

Not available

3-3

TRIGGER

$

$

Not available

4

Snapper 84004596

KIT, Handle

Note: (Includes Ref. Nos. 4-1 through 4-3)

$15.99

$

Usually ships in 2-12 days

0

4-1

SCREW, ST4.2-16

$

$

Not available

4-2

HANDLE, Left

$

$

Not available

4-3

HANDLE, Right

$

$

Not available

5

Snapper 84004597

KIT, Latch

Note: (Includes Ref. Nos. 5-1 through 5-3)

$4.99

$

Usually ships in 2-12 days

0

5-1

SPRING

$

$

Not available

5-2

LEVER, Release

$

$

Not available

5-3

PIN

$

$

Not available

6

Snapper 84004608

KIT, Side Cover, Left

Note: (Includes Ref. Nos. 6-1 through 6-3)

$

$

Not available

6-1

COVER, Side, Left

$

$

Not available

6-2

SCREW, ST4.2-16

$

$

Not available

6-3

SCREW, ST4.8 X 90

$

$

Not available

7

Snapper 84004609

KIT, Side Cover, Right

$

$

Not available

8

Snapper 84004610

KIT, Handle

Note: (Includes Ref. Nos. 8-1 through 8-3)

$29.99

$

Usually ships in 2-12 days

0

8-1

HANDLE

$

$

Not available

8-2

NUT, M5

$

$

Not available

8-3

BOLT, Hex, M25 x 5

$

$

Not available

9

Snapper 84004611

KIT, Guard

Note: (Includes Ref. Nos. 9-1 & 9-2)

$

$

Currently unavailable

9-1

GUARD

$

$

Not available

9-2

SCREW, ST4 x 10

$

$

Not available

10

Snapper 84004612

KIT, Blade

Note: (Includes Ref. Nos. 10-1 & 10-2)

$

$

Currently unavailable

10-1

BLADE ASSEMBLY

$

$

Not available

10-2

BOLT, Spring, M5 x 27

$

$

Not available

11

Snapper 84004613

KIT, Gear Assembly

Note: (Includes Ref. Nos. 11-1 through 11-10)

$34.99

$

Usually ships in 2-12 days

0

11-1

GEAR CASE

$

$

Not available

11-2

SCREW, M4 x 16

$

$

Not available

11-3

BEARING, Ball

$

$

Not available

11-4

GASKET

$

$

Not available

11-5

GASKET

$

$

Not available

11-6

CAM, Block

$

$

Not available

11-7

WASHER

$

$

Not available

11-8

CAM, Block

$

$

Not available

11-9

GASKET

$

$

Not available

11-10

SCREW, M5 x 20

$

$

Not available

12

Snapper 84004614

COVER, Blade

$

$

Currently unavailable

13

Snapper 1697088

* BATTERY, 2.0, 48V

$155.99

$

Usually ships in 2-12 days

0

14

Snapper 1697090

* BATTERY, 5.0, 48V

$311.99

$

In Stock, only 1 left!

0

15

Snapper 1697092

* BATTERY CHARGER, 48V

$76.99

$

In Stock, Qty 7

0
